LJ79LV-KR (1990)
Toyota Land Cruiser

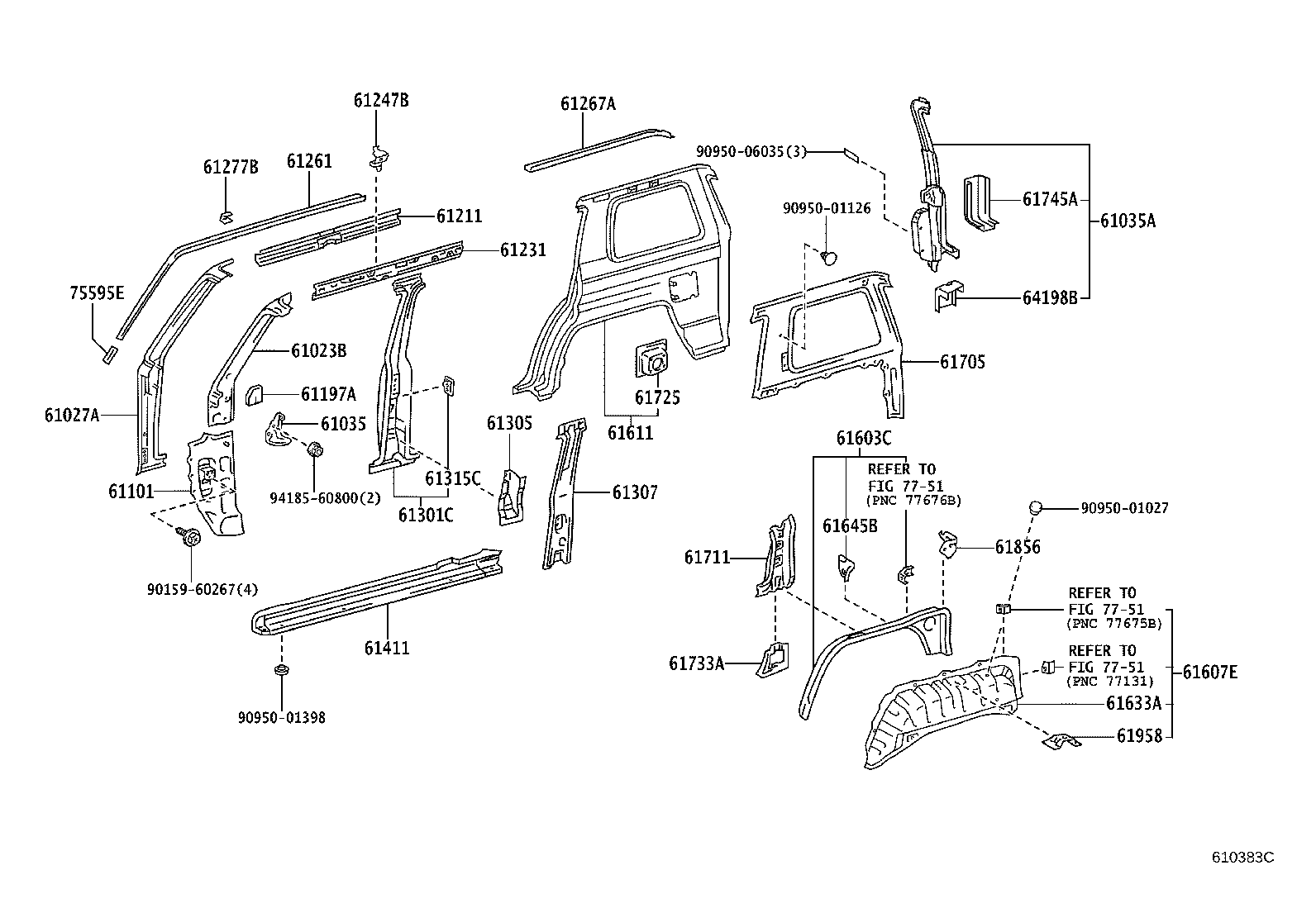

ILLUST NO. 1 OF 2(9004-9604)KZJ77,LJ77,79,RJ77
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-90K02 |
FJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..HT |
1 | ||
| 61023-90K02 |
FZJ70..LHD..HT..CBR;FJ70,FZJ71,HZJ71,LJ7#,PZJ70,RJ7#..LHD..HT |
1 | ||
| 61023-90K02 |
KZJ7#,LJ7#,RJ7#..LHD..HT |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-60010 |
FJ70,FZJ70,HZJ70,LJ7#,PZJ70,RJ7#..HT |
1 | ||
| 61027-60011 |
FZJ70,HZJ70,LJ7#,PZJ70,RJ7#..HT |
1 | ||
| 61027-60011 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-90K01 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61165-90K01 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61035A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH | ||||
| 61035-60060 |
LJ79,RJ77..STD |
1 | ||
| 61035-60060 |
LJ79..LHD..STD *EX-USSR SPEC & W(*OF) |
1 | ||
| 61035-60061 |
LJ77,79,RJ77 |
1 | ||
| 61035-60030 |
LJ77,79,RJ77 W(*RW) |
1 | ||
| 61035-60010 |
LJ77,79,RJ77 |
1 | ||
| 61035-60020 |
LJ77,79,RJ77 W(*RWD) |
1 | ||
| 61035-60061 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 61035-60040 |
LJ79..LHD *EX-USSR SPEC & W(*RWD) OR *EX-USSR SPEC & W(*RW) |
1 | ||
| 61035-60041 |
LJ79..LHD *EX-USSR SPEC & W(*RWD) OR *EX-USSR SPEC & W(*RW) |
1 | ||
| 61035-60060 |
LJ79..LHD *EX-USSR SPEC |
1 | ||
| 61035-60021 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(*RWD) |
1 | ||
| 61035-60031 |
LJ77,79,RJ77 W(*RW) |
1 | ||
| 61035-60031 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(*RW) |
1 | ||
| 61035-60061 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61035-60021 |
LJ77,79,RJ77 W(*RWD) |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-60060 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(*DL) |
1 | ||
| 61101-90K14 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 61101-90K14 |
KZJ7#,LJ7#,RJ7#..LHD..HT |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61197-90K00 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 61197-90K00 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN W(*AIC) |
3 | ||
| 61197-90K00 |
FJ75..GEN..CBU;FJ70,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN W(*AIC) |
3 | ||
| 61197-90K00 |
FJ75..GEN..CBU;FJ70,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 61197-90K00 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70,KZJ77,LJ7#,RJ77..GCC,GEN;FZJ70,HZJ75,RJ70..(HT,PIC)..(CBR,DSL) |
1 | ||
| 61197-90K00 |
KZJ77,LJ7#,RJ7# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-60010 |
LJ77,79,RJ77 |
1 | ||
| 61211-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61231-60020 |
LJ77,79,RJ77 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61263-60010 |
LJ77,79,RJ77 |
1 | ||
| 61263-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-60020 |
LJ77,79,RJ77 |
1 | ||
| 61267-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
LJ7#,RJ7#..HT..STD |
4 | ||
| 61277-90K00 |
FJ70,75,HZJ70,LJ70,PZJ75..HT;FZJ70,75,HZJ75,LJ72,79,PZJ70,RJ7#..HT..STD |
4 | ||
| 61277-90K00 |
FJ70..STD..GCC;FJ70,RJ77..HT..(ARL,GEN);FJ75,HZJ70,75,LJ7#,PZJ70,75,RJ70..HT |
4 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-60040 |
LJ77,79,RJ77 |
1 | ||
| 61301-60090 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61301-60090 |
LJ77,79,RJ77 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-60020 |
LJ77,79,RJ77 |
1 | ||
| 61305-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-60070 |
LJ77,79,RJ77 |
1 | ||
| 61307-60130 |
LJ77,79,RJ77 |
1 | ||
| 61307-60130 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
LJ77,79,RJ77 |
1 | ||
| 61315-22020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-60010 |
LJ77,79,RJ77 |
1 | ||
| 61401-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61605-60040 |
LJ77,79,RJ77 |
1 | ||
| 61605-60040 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-60150 |
LJ77,79,RJ77..GEN W(*FFRS) |
1 | ||
| 61607-60180 |
LJ77,79,RJ77 W(2ND SEAT BELT & 3RD PARALLEL SEAT) |
1 | ||
| 61607-60160 |
LJ77,79,RJ77..GEN W(*FFRS & REAR SEAT BELT) |
1 | ||
| 61607-60170 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61607-60161 |
LJ77,79,RJ77..GEN W(*FFRS & REAR SEAT BELT) |
1 | ||
| 61607-60151 |
LJ77,79,RJ77..GEN W(*FFRS) |
1 | ||
| 61607-60171 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61607-60181 |
LJ79,RJ77..STD W(3RD PARALLEL SEAT) |
1 | ||
| 61607-60171 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61607-60151 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN W(*RW) |
1 | ||
| 61607-60161 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN W(*FFRS & REAR SEAT BELT) |
1 | ||
| 61607-60181 |
LJ79,RJ77..STD W(3RD PARALLEL SEAT) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 60161-60150 |
LJ79,RJ77..STD |
1 | ||
| 60161-60160 |
LJ79,RJ77..STD W(OVER FENDER) |
1 | ||
| 60161-60151 |
LJ79,RJ77..STD |
1 | ||
| 60161-60161 |
LJ79,RJ77..STD W(OVER FENDER) |
1 | ||
| 60161-60161 |
LJ79..STD W(OVER FENDER) |
1 | ||
| 60161-60151 |
LJ79,RJ77..STD |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-60060 |
LJ77,79,RJ77 W(REAR SEAT BELT) |
1 | ||
| 61633-60050 |
LJ77,79,RJ77 |
1 | ||
| 61633-60060 |
KZJ77;LJ79,RJ77..STD;LJ79,RJ77..LHD..LX W(REAR SEAT BELT) |
1 | ||
| 61633-60050 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-90K00 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 61645-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-60110 |
RJ77..GCC;LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61705-60120 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61705-60140 |
RJ77..GCC;LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61705-60140 |
RJ77..GCC;LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61705-60150 |
RJ77..GCC;LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61705-60120 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61711-60020 |
LJ77,79,RJ77 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61709-90K00 |
FZJ70,HZJ70..ARL;FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,79,PZJ70,73,RJ7#..STD |
1 | ||
| 61725-90K02 |
LJ79,RJ77;FJ70,73,FZJ70,73,HZJ73,LJ70,72,77,PZJ70,73,RJ70..LX W(*RW) |
1 | ||
| 61709-90K00 |
LJ79,RJ77..STD W(*OF & *RW) |
1 | ||
| 61709-90K00 |
LJ7#,RJ7#..HT..STD |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61733-60020 |
LJ77,79,RJ77 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 61745-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61856 - BRACKET, REAR WASHER TANK, LOWER | ||||
| 61856-60010 |
RJ77..STD;KZJ77,LJ79;RJ77..LHD..LX |
1 | ||
| 61856-60010 |
LJ77,79,RJ77 |
1 | ||
| 61958 - BRACKET, REAR SEAT LEG, NO.1 RH | ||||
| 61959-90K01 |
LJ77,79,RJ77;FZJ73..STD..CBR;FJ73,FZJ74,PZJ73..STD |
1 | ||
| 61959-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 64198B - BRACKET, LOWER BACK RAIL, INNER SIDE RH | ||||
| 64198-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 64198-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 75595E - COVER, ROOF DRIP SIDE MOULDING END, FRONT RH | ||||
| 75595-95J00 |
FZJ70,LJ72,79,PZJ70,RJ7#..HT..STD;FJ70,75,FZJ75,HZJ7#,LJ70,PZJ75..HT |
1 | ||
| 75595-95J00 |
FJ70..STD..GCC;FJ70,RJ77..HT..(ARL,GEN);FJ75,HZJ70,75,LJ7#,PZJ70,75,RJ70..HT |
1 | ||
| 75595-95J00 |
LJ7#,RJ7#..HT..STD |
1 | ||
| Common parts | ||||
| 90159-60267 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01398 | ||||
| 90950-06035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(9004- )KZJ77,LJ77,79,RJ77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53865A - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 53865-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53865-90K00 |
RJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX |
2 | ||
| 53865-90K00 |
RJ7#..LX;LJ79..STD;LJ79..LHD..LX;FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,73 |
2 | ||
| 53865-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53872C - BRACKET, REAR WHEEL OPENING, NO.8 | ||||
| 53872-90K00 |
RJ7#..LX;LJ79..STD;LJ79..LHD..LX;FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,73 |
2 | ||
| 53872-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53872-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53872-90K00 |
RJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX |
2 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-60902 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61063-60902 |
LJ77,79,RJ77 |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-60902 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61064-60902 |
LJ77,79,RJ77 |
1 | ||
| 61607B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, RH | ||||
| 61607-60901 |
LJ77,79,RJ77 |
1 | ||
| 61607-60901 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61608B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, LH | ||||
| 61608-60901 |
LJ77,79,RJ77 |
1 | ||
| 61608-60901 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61693D - BRACKET, REAR WHEEL OPENING, NO.1 | ||||
| 61693-90K01 |
LJ77,79,RJ77 |
4 | ||
| 61693-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
4 | ||
| 61693D - BRACKET, REAR WHEEL OPENING, NO.1 | ||||
| 61693-90K01 |
LJ77,79,RJ77 |
4 | ||
| 61693-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
4 | ||
| 61694D - BRACKET, REAR WHEEL OPENING, NO.2 | ||||
| 61694-60020 |
LJ77,79,RJ77 |
1 | ||
| 61694-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60020 |
LJ77,79,RJ77 |
2 | ||
| 61695-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
2 | ||
| 61696F - BRACKET, REAR WHEEL OPENING, NO.2 LH | ||||
| 61696-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61696-60020 |
LJ77,79,RJ77 |
1 | ||
| 61698F - BRACKET, REAR WHEEL OPENING, NO.4 | ||||
| 61698-60040 |
LJ77,79,RJ77 |
1 | ||
| 61698-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61699D - BRACKET, REAR WHEEL | ||||
| 61699-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 61699-60020 |
LJ77,79,RJ77 |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
2 | ||
| 61783-60020 |
LJ77,79,RJ77 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-60020 |
LJ77,79,RJ77 |
2 | ||
| 61784-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
2 | ||
| 61785C - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX |
2 | ||
| 61785-60020 |
LJ77,79,RJ77 |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60120 |
KZJ77,LJ79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60120 |
KZJ77,LJ79,RJ77..GEN NO PAINT REQ. |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60120 |
KZJ77,LJ79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607-60120 |
KZJ77,LJ79,RJ77..GEN NO PAINT REQ. |
1 | ||
| 76607B - BRACKET, QUARTER PANEL REAR MUDGUARD, RH | ||||
| 76645-90K01 |
RJ7#..LX;LJ79..STD;LJ79..LHD..LX;FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,73 |
1 | ||
| 76645-90K01 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76645-90K01 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76645-90K01 |
RJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608-60120 |
KZJ77,LJ79,RJ77..GEN NO PAINT REQ. |
1 | ||
| 76608-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608-60120 |
KZJ77,LJ79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608-60120 |
KZJ77,LJ79,RJ77..GEN NO PAINT REQ. |
1 | ||
| 76608-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608-60120 |
KZJ77,LJ79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60130 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608B - BRACKET, QUARTER PANEL REAR MUDGUARD, LH | ||||
| 76646-90K01 |
FJ73,HZJ73,PZJ70,73;FJ70,LJ7#,RJ7#..GCC,GEN |
1 | ||
| 76646-90K01 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76646-90K01 |
RJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX |
1 | ||
| 76646-90K01 |
FZJ71,74;FJ70,FZJ70,73,HZJ71,LJ72,77,79,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| Common parts | ||||
| 90119-06278 | ||||
| 90119-06548 | ||||
| 90159-60266 | ||||
| 90159-60509 | ||||
| 90159-60510 | ||||
| 90179-06214 | ||||
| 90189-06134 | ||||
| 90269-05020 | ||||
| 90269-05024 | ||||

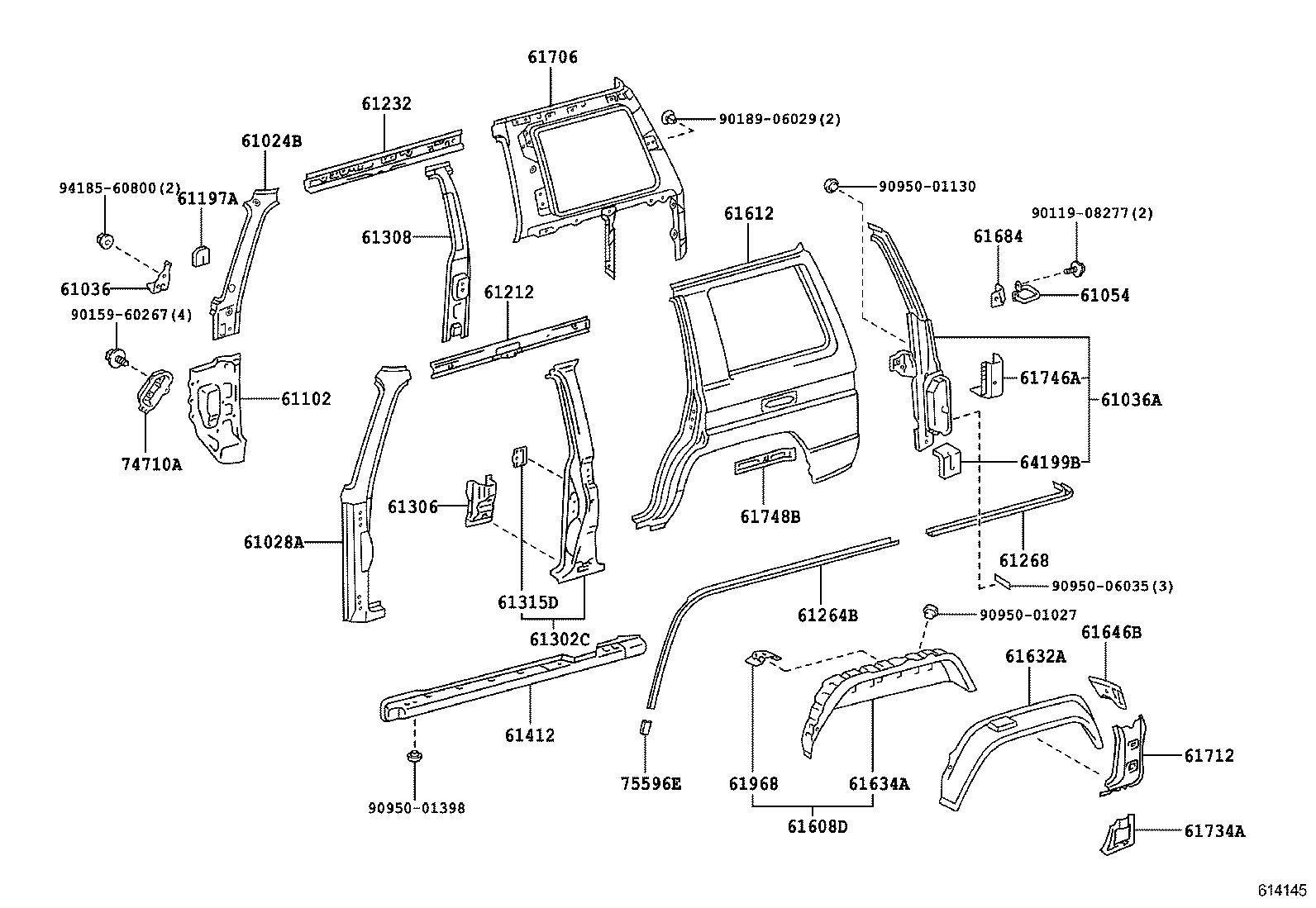

ILLUST NO. 1 OF 2(9004-9604)KZJ77,LJ77,79,RJ77
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-90K05 |
FJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..HT |
1 | ||
| 61024-90K05 |
FZJ70..LHD..HT..CBR;FJ70,FZJ71,HZJ71,LJ7#,PZJ70,RJ7#..LHD..HT |
1 | ||
| 61024-90K05 |
KZJ7#,LJ7#,RJ7#..LHD..HT |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-60010 |
FJ70,FZJ70,HZJ70,LJ7#,PZJ70,RJ7#..HT |
1 | ||
| 61028-60011 |
FZJ70,HZJ70,LJ7#,PZJ70,RJ7#..HT |
1 | ||
| 61028-60011 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-90K01 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61166-90K01 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61036A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH | ||||
| 61036-60021 |
LJ79..LHD USSR SPEC |
1 | ||
| 61036-60010 |
LJ77,79,RJ77 |
1 | ||
| 61036-60020 |
LJ79..LHD USSR SPEC |
1 | ||
| 61036-60011 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61036-60021 |
LJ79..LHD USSR SPEC |
1 | ||
| 61036-60010 |
LJ77,79,RJ77 |
1 | ||
| 61036-60011 |
LJ77,79,RJ77 |
1 | ||
| 61054 - STEP SUB-ASSY, QUARTER PANEL, NO.1 LH | ||||
| 61054-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61054-60010 |
LJ77,79,RJ77 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-90K23 |
FJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD W(RADIO) |
1 | ||
| 61102-90K23 |
FJ73..STD..GCC;FJ75..LHD..STD..CBU;FJ70,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD W(RADIO) |
1 | ||
| 61102-90K14 |
FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD |
1 | ||
| 61102-90K23 |
FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD W(RADIO) |
1 | ||
| 61102-90K14 |
RJ70..HT..STD;FZJ7#,HZJ7#,LJ7#,RJ77..LHD..STD |
1 | ||
| 61102-60170 |
KZJ7#,LJ7#,RJ7#..LHD..HT W(RADIO) |
1 | ||
| 61102-60160 |
LJ7#,RJ7#..LHD..STD |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61197-90K00 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 61197-90K00 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN W(*AIC) |
3 | ||
| 61197-90K00 |
FJ75..GEN..CBU;FJ70,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN W(*AIC) |
3 | ||
| 61197-90K00 |
FJ75..GEN..CBU;FJ70,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 61197-90K00 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70,KZJ77,LJ7#,RJ77..GCC,GEN;FZJ70,HZJ75,RJ70..(HT,PIC)..(CBR,DSL) |
1 | ||
| 61197-90K00 |
KZJ77,LJ7#,RJ7# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-60010 |
LJ77,79,RJ77 |
1 | ||
| 61212-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-60020 |
LJ77,79,RJ77 |
1 | ||
| 61232-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61264B - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-60010 |
LJ77,79,RJ77 |
1 | ||
| 61264-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-60020 |
LJ77,79,RJ77 |
1 | ||
| 61268-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-60040 |
LJ77,79,RJ77..GEN |
1 | ||
| 61302-60110 |
KZJ77,LJ79,RJ77..GEN |
1 | ||
| 61302-60110 |
LJ77,79,RJ77..GEN |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61306-60020 |
LJ77,79,RJ77 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-60070 |
LJ77,79,RJ77 |
1 | ||
| 61308-60130 |
LJ77,79,RJ77 |
1 | ||
| 61308-60130 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61315D - RETAINER, DOOR LOCK STRIKER, LH | ||||
| 61315-22020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61315-22020 |
LJ77,79,RJ77 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61402-60010 |
LJ77,79,RJ77 |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-60240 |
LJ79,RJ77..STD W(3RD PARALLEL SEAT) |
1 | ||
| 61608-60230 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61608-60240 |
LJ79,RJ77..STD W(3RD PARALLEL SEAT) |
1 | ||
| 61608-60230 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 60162-60100 |
LJ77,79,RJ77 W(OVER FENDER) |
1 | ||
| 60162-60090 |
LJ77,79,RJ77 |
1 | ||
| 60162-60110 |
LJ77,79,RJ77 W(ROOF RACK) |
1 | ||
| 60162-60120 |
LJ77,RJ77;LJ79..STD;LJ79..LHD..LX W(*OF & ROOF RACK) |
1 | ||
| 60162-60091 |
LJ77,79,RJ77 |
1 | ||
| 60162-60111 |
LJ77,79,RJ77 W(ROOF RACK) |
1 | ||
| 60162-60101 |
LJ77,79,RJ77 W(OVER FENDER) |
1 | ||
| 60162-60121 |
LJ77,RJ77;LJ79..STD;LJ79..LHD..LX W(*OF & ROOF RACK) |
1 | ||
| 60162-60121 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(*OF & ROOF RACK) |
1 | ||
| 60162-60111 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(ROOF RACK) |
1 | ||
| 60162-60091 |
KZJ77,LJ79,RJ77 |
1 | ||
| 60162-60101 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(OVER FENDER) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61632-60020 |
LJ77,79,RJ77 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-60220 |
LJ77,79,RJ77..GEN W(2ND SEAT SEAT BELT) |
1 | ||
| 61634-60050 |
LJ77,79,RJ77 |
1 | ||
| 61634-60050 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61608-60220 |
LJ79,RJ77..STD W(2ND SEAT SEAT BELT) |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-90K00 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 61646-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61684 - ORNAMENT, QUARTER PANEL STEP, NO.1 LH | ||||
| 61684-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61684-60020 |
LJ77,79,RJ77 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-60090 |
LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61706-60100 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61706-60120 |
LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61706-60120 |
LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61706-60100 |
RJ77..GCC;LJ79,RJ77..STD |
1 | ||
| 61706-60130 |
LJ79,RJ77..STD W(3RD *FFRS) |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-60020 |
LJ77,79,RJ77 |
1 | ||
| 61712-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-60020 |
LJ77,79,RJ77 |
1 | ||
| 61734-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 61746-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61749-60010 |
LJ77,79,RJ77 |
1 | ||
| 61749-60010 |
KZJ77,LJ79,RJ77 |
1 | ||
| 61968 - BRACKET, REAR SEAT LEG, NO.1 LH | ||||
| 61969-90K00 |
LJ77,79,RJ77;FJ73,FZJ73,PZJ73..STD |
1 | ||
| 61969-90K00 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 61969-90K00 |
LJ77,79,RJ77;FZJ74,PZJ73..STD;FZJ73..STD..GEN..CBR |
1 | ||
| 64199B - BRACKET, LOWER BACK RAIL, INNER SIDE LH | ||||
| 64199-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 64199-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 75596E - COVER, ROOF DRIP SIDE MOULDING END, FRONT LH | ||||
| 75596-95J00 |
FZJ70,LJ72,79,PZJ70,RJ7#..HT..STD;FJ70,75,FZJ75,HZJ7#,LJ70,PZJ75..HT |
1 | ||
| 75596-95J00 |
FJ70..STD..GCC;FJ70,RJ77..HT..(ARL,GEN);FJ75,HZJ70,75,LJ7#,PZJ70,75,RJ70..HT |
1 | ||
| 75596-95J00 |
LJ7#,RJ7#..HT..STD |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90159-60267 | ||||
| 90189-06029 | ||||
| 90950-01027 | ||||
| 90950-01130 | ||||
| 90950-01398 | ||||
| 90950-06035 | ||||
| 94185-60800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
