LJ77RV-MNX (1990)

Toyota Land Cruiser

Production Apr 1990 - May 1993
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

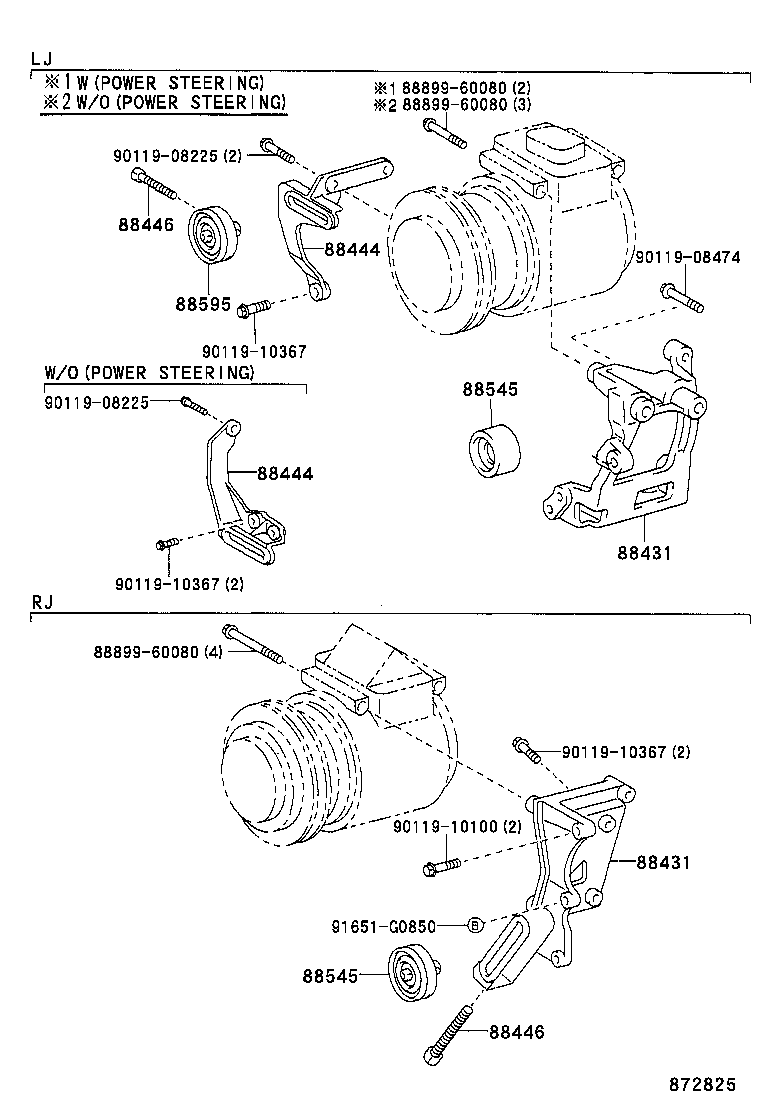

ILLUST NO. 2 OF 3(9001-9604)LJ7#,RJ7#

Click highlighted areas on diagram

MAKER OPTION

diagram 88431 88431 88444 88444 88446 88446 88545 88545 88595 8889960080 8889960080 8889960080 9011908225 9011908225 9011908474 9011910100 9011910367 9011910367 9011910367 91651G0850
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60180

LJ7#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60180

LJ7#

 1
88444 - BRACKET, IDLE PULLEY
88444-60080

LJ7#..LX

 1
88444 - BRACKET, IDLE PULLEY
88444-60080

LJ7#..LX

 1
88446 - BOLT, IDLE PULLEY
88446-35030

RJ7#;LJ7#..LX..GEN

 1
88446-35030

RJ7#;LJ7#..LX

 1
88446 - BOLT, IDLE PULLEY
88446-35030

RJ7#;LJ7#..LX..GEN

 1
88446-35030

RJ7#;LJ7#..LX

 1
88545 - PULLEY ASSY, IDLE
88440-26070

LJ7#

 1
88545 - PULLEY ASSY, IDLE
88440-26070

LJ7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35030

LJ7#,RJ7#..ARL,GEN

 1
88440-35030

LJ7#,RJ7#..GEN

 1
Common parts
88899-60080
90119-08225
90119-08474
90119-10100
90119-10367
91651-G0850

ILLUST NO. 2 OF 3(9001-9604)LJ7#

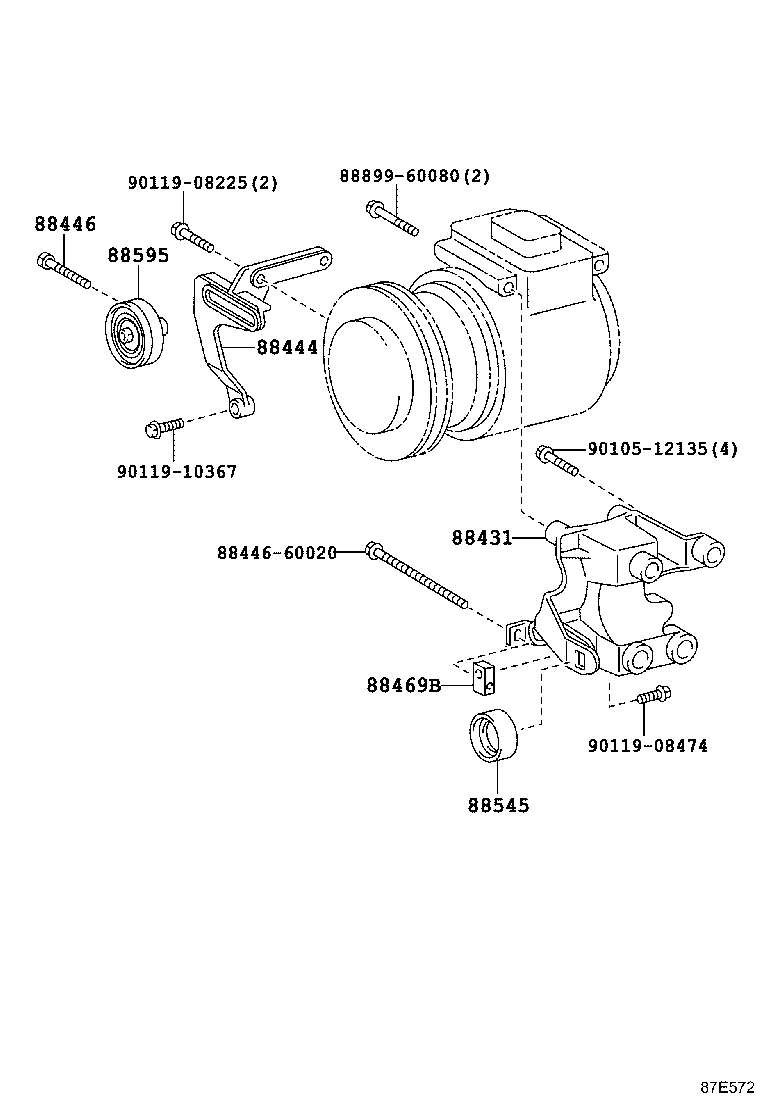

Click highlighted areas on diagram

DEALER OPTION

diagram 88431 88444 88446 8844660020 88469B 88545 88595 8889960080 9010512135 9011908225 9011908474 9011910367
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60180

LJ7#

 1
88444 - BRACKET, IDLE PULLEY
88444-60080

LJ7#..LX

 1
88446 - BOLT, IDLE PULLEY
88446-35030

RJ7#;LJ7#..LX..GEN

 1
88446-35030

RJ7#;LJ7#..LX

 1
88545 - PULLEY ASSY, IDLE
88440-26070

LJ7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35030

LJ7#,RJ7#..ARL,GEN

 1
88440-35030

LJ7#,RJ7#..GEN

 1
Common parts
88446-60020
88899-60080
90105-12135
90119-08225
90119-08474
90119-10367
