LJ77RV-MNX (1990)
Toyota Land Cruiser

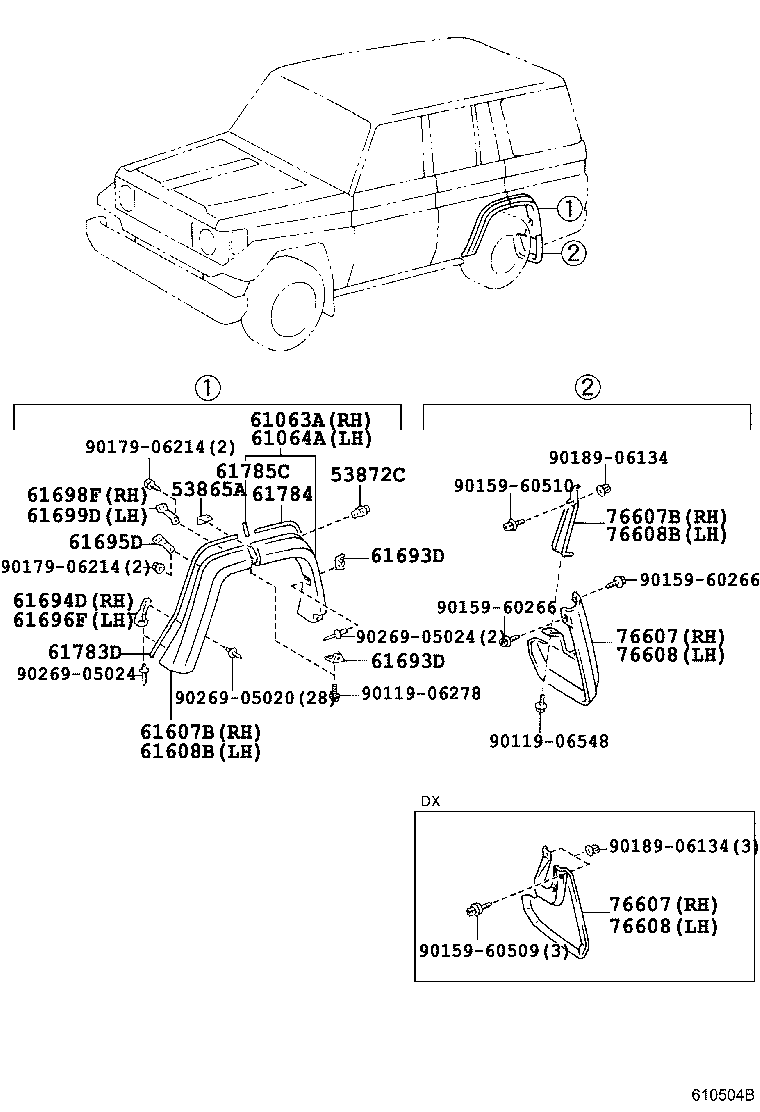

ILLUST NO. 2 OF 2(9004- )KZJ77,LJ77,79,RJ77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53865A - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 53865-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53865-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53872C - BRACKET, REAR WHEEL OPENING, NO.8 | ||||
| 53872-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53872-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-60902 |
LJ77,79,RJ77 |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-60902 |
LJ77,79,RJ77 |
1 | ||
| 61607B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, RH | ||||
| 61607-60901 |
LJ77,79,RJ77 |
1 | ||
| 61608B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, LH | ||||
| 61608-60901 |
LJ77,79,RJ77 |
1 | ||
| 61693D - BRACKET, REAR WHEEL OPENING, NO.1 | ||||
| 61693-90K01 |
LJ77,79,RJ77 |
4 | ||
| 61693D - BRACKET, REAR WHEEL OPENING, NO.1 | ||||
| 61693-90K01 |
LJ77,79,RJ77 |
4 | ||
| 61694D - BRACKET, REAR WHEEL OPENING, NO.2 | ||||
| 61694-60020 |
LJ77,79,RJ77 |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60020 |
LJ77,79,RJ77 |
2 | ||
| 61696F - BRACKET, REAR WHEEL OPENING, NO.2 LH | ||||
| 61696-60020 |
LJ77,79,RJ77 |
1 | ||
| 61698F - BRACKET, REAR WHEEL OPENING, NO.4 | ||||
| 61698-60040 |
LJ77,79,RJ77 |
1 | ||
| 61699D - BRACKET, REAR WHEEL | ||||
| 61699-60020 |
LJ77,79,RJ77 |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-60020 |
LJ77,79,RJ77 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-60020 |
LJ77,79,RJ77 |
2 | ||
| 61785C - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-60020 |
LJ77,79,RJ77 |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76607-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76607B - BRACKET, QUARTER PANEL REAR MUDGUARD, RH | ||||
| 76645-90K01 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76645-90K01 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,74,HZJ71,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60030 |
LJ77,79,RJ77 NO PAINT REQ. |
1 | ||
| 76608-60040 |
LJ77,79,RJ77 NO PAINT REQ.,W(OVER FENDER) |
1 | ||
| 76608B - BRACKET, QUARTER PANEL REAR MUDGUARD, LH | ||||
| 76646-90K01 |
FJ73,HZJ73,PZJ70,73;FJ70,LJ7#,RJ7#..GCC,GEN |
1 | ||
| 76646-90K01 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 76646-90K01 |
FZJ71,74;FJ70,FZJ70,73,HZJ71,LJ72,77,79,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| Common parts | ||||
| 90119-06278 | ||||
| 90119-06548 | ||||
| 90159-60266 | ||||
| 90159-60509 | ||||
| 90159-60510 | ||||
| 90179-06214 | ||||
| 90189-06134 | ||||
| 90269-05020 | ||||
| 90269-05024 | ||||
