LJ77LV-MNX (1990)

Toyota Land Cruiser

Production Apr 1990 - May 1993
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9305)LJ70,77

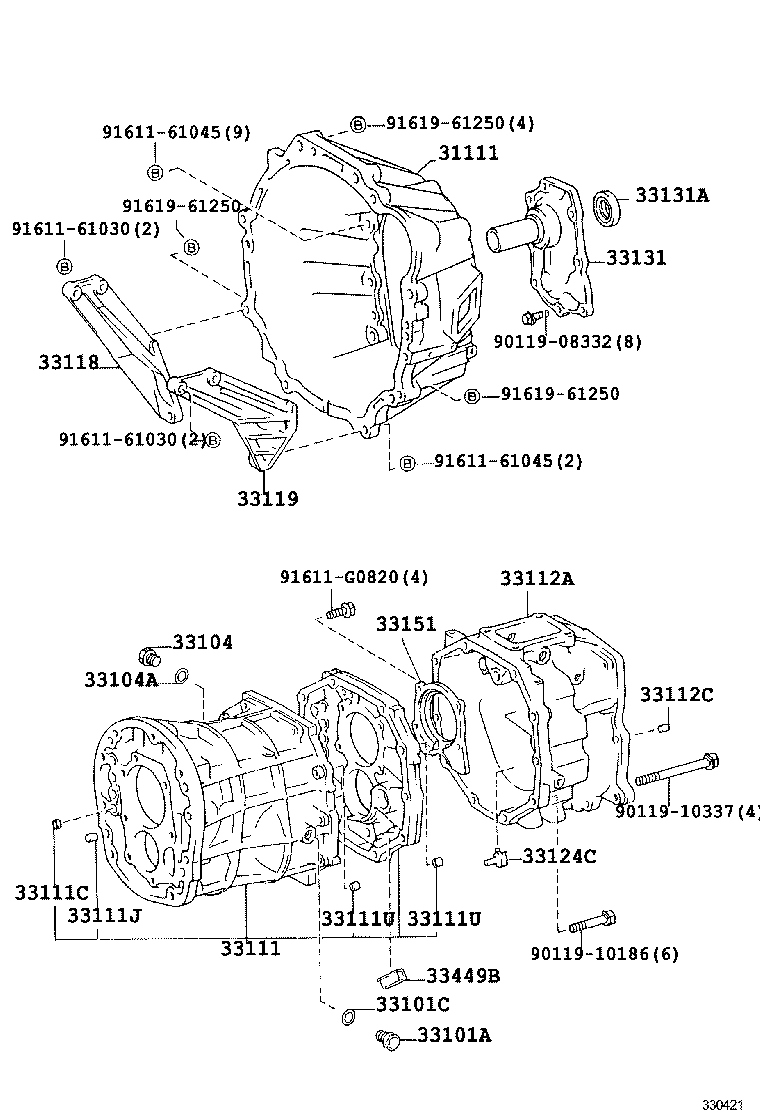

Click highlighted areas on diagram

R150

diagram 31111 33101A 33101C 33104 33104A 33111 33111C 33111J 33111U 33111U 33112A 33112C 33118 33119 33124C 33131 33131A 33151 33449B 9011908332 9011910186 9011910337 9161161030 9161161030 9161161045 9161161045 91611G0820 9161961250 9161961250 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-60260

LJ70,77

 1
31111-25030

LJ70,77

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

FZJ70,73,75..GCC;HZJ71,78,79,LJ70,77,PZJ7#

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-60020

LJ70,77,PZJ7#

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

LJ7#,PZJ7#,RJ7#

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LJ70,77,PZJ7#

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LJ70,77,PZJ7#

L=14,OD=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LJ70,77,PZJ7#

L=14,OD=15

 4
33112A - ADAPTER, TRANSFER
36117-60050

LJ70,77,PZJ7#

 1
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12216

FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 2
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LJ7#

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LJ7#

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36010

LJ7#,PZJ7#,RJ7#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35030

LJ70,77

 1
33131-35031

LJ70,77

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

LJ70,77,PZJ7#

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

LJ70,77,PZJ7#

 1
33449B - MAGNET, TRANSMISSION
33449-35010

FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ70,77,PZJ7#

 1
Common parts
90119-08332
90119-10186
90119-10337
91611-61030
91611-61045
91611-G0820
91619-61250
