LJ72LV-MN (1990)

Toyota Land Cruiser

Production Apr 1990 - May 1993
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)LJ7#

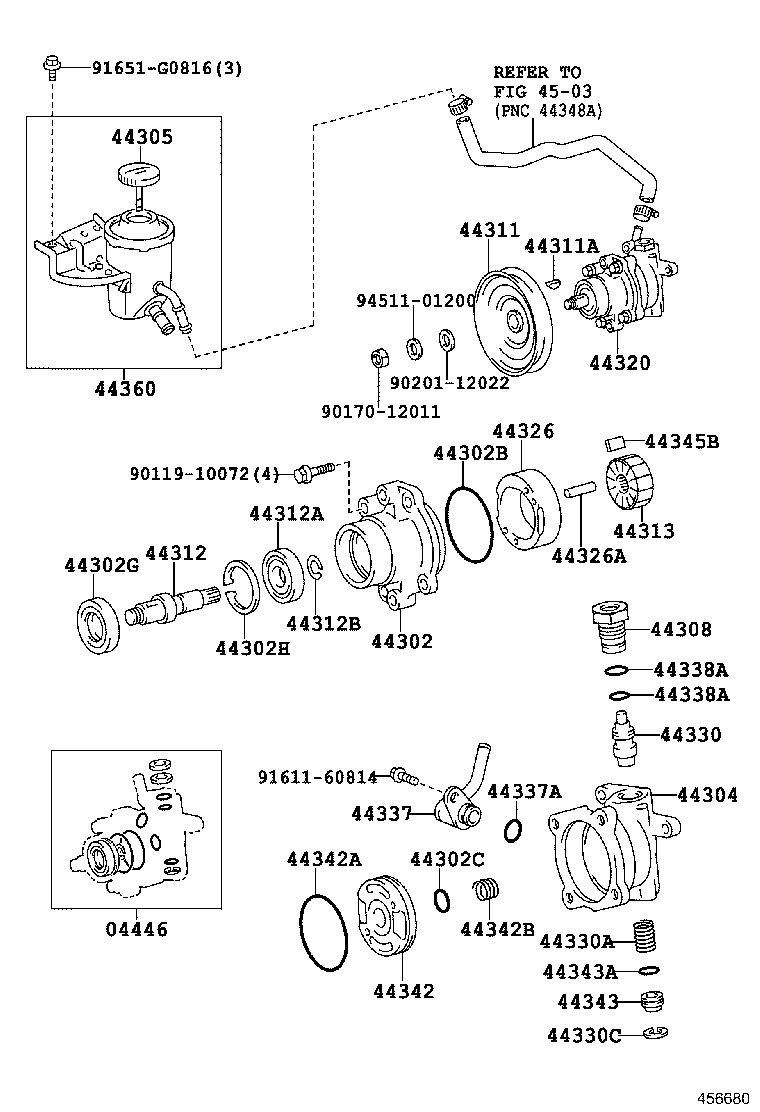

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44308 44311 44311A 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44343A 44345B 44360 4503 9011910072 9017012011 9020112022 9161160814 91651G0816 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-60030

LJ7#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12010

LJ7#,RJ7#

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

LJ7#,RJ7#

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

LJ7#,RJ7#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

LJ7#,RJ7#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

FZJ70,75..ARL;FZJ71,74,78,79,LJ7#,RJ7#;FZJ70,73,75..(GCC,GEN)..CBR

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-35041

LJ7#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-50010

LJ7#

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-35030

LJ7#,RJ7#

 1
44311 - PULLEY, VANE PUMP
44311-35030

LJ7#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

FZJ70,75..ARL;FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,LJ7#,RJ7#..ARL,GCC,GEN

 1
44312 - SHAFT, VANE PUMP
44312-12010

LJ7#,RJ7#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

LJ7#,RJ7#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

LJ7#,RJ7#

 1
44313 - ROTOR, VANE PUMP
44313-22040

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

NO MARK

 1
44313-22080

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

MARK 4

 1
44313-22070

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

MARK 3

 1
44313-22060

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

MARK 2

 1
44313-22050

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

MARK 1

 1
44320 - PUMP ASSY, VANE
44320-60201

LJ7#

 1
44320-60200

LJ7#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12010

LJ7#,RJ7#

NO MARK

 1
44325-12020

LJ7#,RJ7#

MARK 1

 1
44325-12050

LJ7#,RJ7#

MARK 4

 1
44325-12030

LJ7#,RJ7#

MARK 2

 1
44325-12040

LJ7#,RJ7#

MARK 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

LJ7#,RJ7#

L=25,OD=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-35131

LJ7#,RJ7#

MARK A

 1
44330-35141

LJ7#,RJ7#

MARK B

 1
44330-35151

LJ7#,RJ7#

MARK C

 1
44330-35181

LJ7#,RJ7#

MARK F

 1
44330-35171

LJ7#,RJ7#

MARK E

 1
44330-35161

LJ7#,RJ7#

MARK D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

FZJ70,75..ARL;FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,LJ7#,RJ7#..ARL,GCC,GEN

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

LJ7#,RJ7#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-60040

LJ7#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013

LJ7#,RJ7#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LJ7#,RJ7#

OD=17.0,ID=13.0

 1
90301-22001

LJ7#,RJ7#

OD=25.5,ID=22.5

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LJ7#,RJ7#

OD=17.0,ID=13.0

 1
90301-22001

LJ7#,RJ7#

OD=25.5,ID=22.5

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

LJ7#,RJ7#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

LJ7#,RJ7#

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

LJ7#,RJ7#

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040

LJ7#,RJ7#

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

LJ7#,RJ7#

 1
44345B - PLATE, VANE PUMP
44345-12050

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

L=14.989

 10
44345-12020

LJ7#,RJ7#

L=14.995

 10
44345-12030

LJ7#,RJ7#

L=14.993

 10
44345-12040

FJ7#,LJ7#,RJ7#..ARL,GCC,GEN

L=14.991

 10
44345-12010

LJ7#,RJ7#

L=14.997

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-60110

LJ7#

 1
Common parts
90119-10072
90170-12011
90201-12022
91611-60814
91651-G0816
94511-01200
Linked diagrams
4503
