LJ72LV-MN (1990)
Toyota Land Cruiser

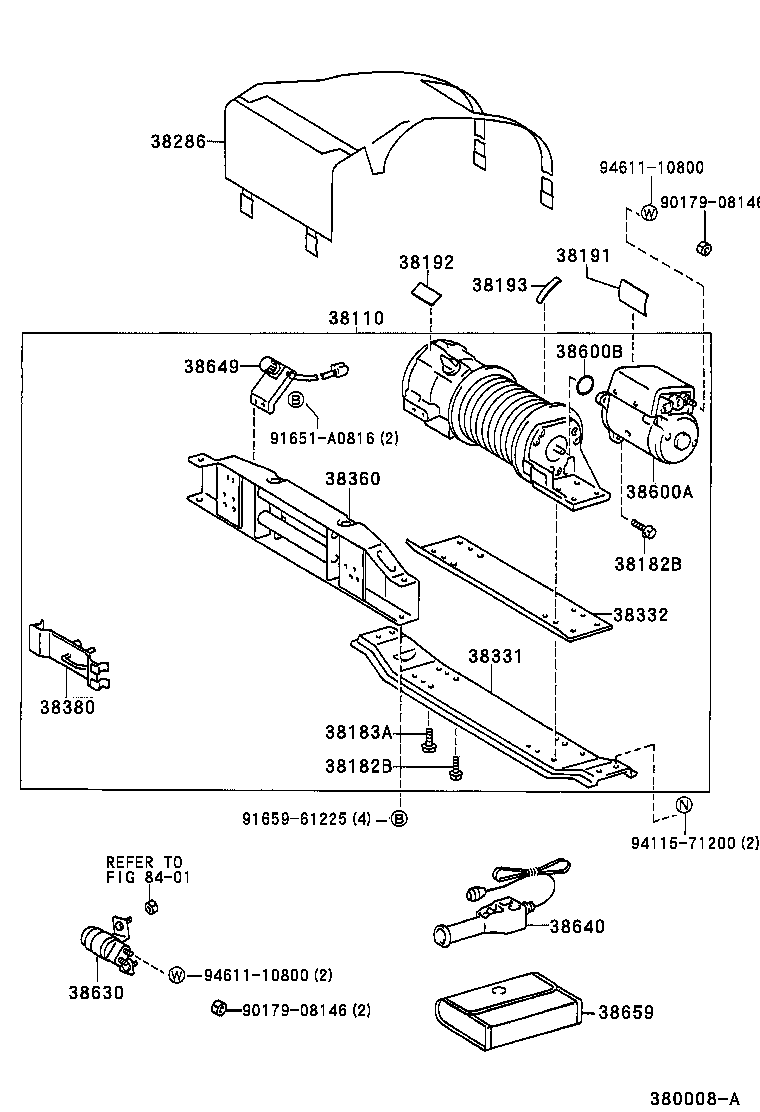

ILLUST NO. 1 OF 3(9001-0604)KZJ7#,LJ7#,RJ7#..GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60190 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60192 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60210 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38110-60192 |
LJ72,79,RJ7#..GEN MECHANICAL |
1 | ||
| 38110-60212 |
LJ72,77,79,RJ7#..GEN ELECTRICAL |
1 | ||
| 38110-60211 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38110-60191 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60212 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
LJ7#,RJ7#..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
LJ7#,RJ7#..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 91651-A0816 |
LJ7#,RJ7#..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182-41018 |
LJ7#,RJ7#..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38183-61235 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-61025 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-41018 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 91651-A0816 |
LJ72,77,79,RJ7#..GEN *8-1.25PX16-16 |
2 | ||
| 38182-60830 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
LJ7#,RJ7#..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
LJ7#,RJ7#..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 91651-A0816 |
LJ7#,RJ7#..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182-41018 |
LJ7#,RJ7#..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38183-61235 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-61025 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-41018 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 91651-A0816 |
LJ72,77,79,RJ7#..GEN *8-1.25PX16-16 |
2 | ||
| 38182-60830 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) *8-1.25PX30-30 |
3 | ||
| 38183A - BOLT, WINCH, NO.2 | ||||
| 38183-61235 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
6 | ||
| 38183-61235 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
6 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60051 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38191-60051 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-60110 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) ELECTRICAL |
1 | ||
| 38286-60100 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN MECHANICAL |
1 | ||
| 38286-60100 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) MECHANICAL |
1 | ||
| 38286-60110 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN ELECTRICAL |
1 | ||
| 38331 - BASE, WINCH, NO.1 | ||||
| 38331-60210 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38331-60210 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38332 - BASE, WINCH, NO.2 | ||||
| 38332-60210 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38332-60210 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60030 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38360-60031 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38360-60031 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60021 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38380-60020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38380-60021 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60080 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38600-60080 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38600B - RING, O (FOR WINCH MOTOR) | ||||
| 90301-59044 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 90301-59044 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 90301-59044 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-60100 |
LJ7#..GEN |
1 | ||
| 38630-60100 |
LJ72,77,79 |
1 | ||
| 38630-60100 |
LJ77,79;LJ72..LHD |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38640-35010 |
FJ75..LHD..IV;FJ73..STD..GEN;LJ72,RJ70..LHD;LJ77,79,PZJ7#,RJ77;FJ70,75..HT..5F..GEN;HZJ75..5F..(GCC,GEN) |
1 | ||
| 38640-35010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38649 - WIRE, WINCH CONTROL | ||||
| 38649-60020 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38649-60020 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38659-60010 |
FJ75..LHD..IV;FJ73..STD..GEN;LJ72,RJ70..LHD;LJ77,79,PZJ7#,RJ77;FJ70,75..HT..5F..GEN;HZJ75..5F..(GCC,GEN) |
1 | ||
| 38659-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91651-A0816 | ||||
| 91659-61225 | ||||
| 94115-71200 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9001-0604)KZJ7#,LJ7#,RJ7#..GCC,GEN

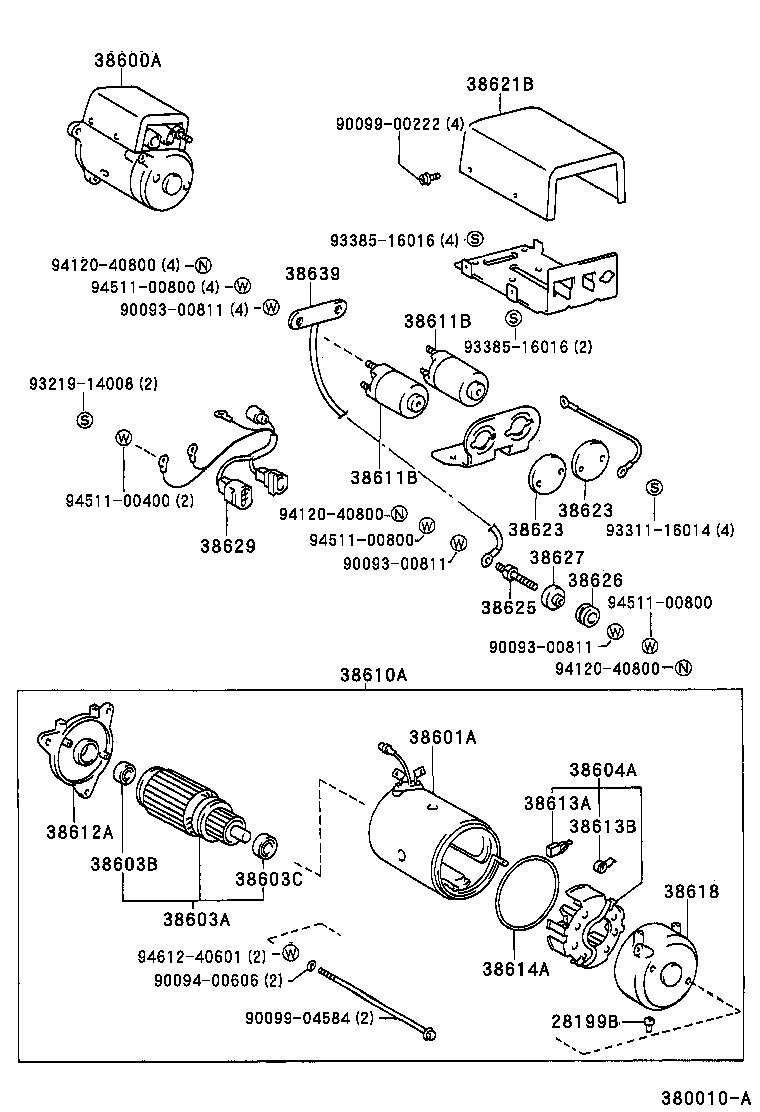

ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28199B - PROTECTOR, DUST WINCH MOTOR | ||||
| 28199-15090 |
22R,3F,1HZ,2LT,3L,1PZ..FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 28199-15090 |
1HZ..HZJ75..RHD..GEN;1HZ..HZJ75..LHD..CBU;22R,1HZ..HZJ78,RJ77..GEN;1FZFE..FZJ71,74,78,79..GCC,GEN;22R,1FZF,3F,1HZ,2LT,3L,1PZ..FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60080 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38600-60080 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60050 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38601-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60050 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38603-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 90099-10130 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38603C - BEARING, NO.2 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10201 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 90099-10201 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38604A - HOLDER ASSY, WINCH MOTOR BRUSH | ||||
| 38604-60050 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38604-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60080 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38610-60080 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38611-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38611-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60050 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38612-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
4 | ||
| 38613-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
4 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
4 | ||
| 28143-46012 |
LJ72,RJ70..LHD;FJ7#,HZJ75,LJ77,79,PZJ7#,RJ77..GCC,GEN |
4 | ||
| 28143-46012 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
4 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14023 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 90099-14023 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38618 - FRAME, WINCH MOTOR COMMUTATOR END | ||||
| 38618-60080 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38618-60080 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38621-60050 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 38623-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 38623-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38625-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38626-60010 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38627-60011 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60050 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38629-60050 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38639 - WIRE (FOR WINCH MOTOR) | ||||
| 38639-60050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38639-60050 |
HZJ78,RJ77..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ72,77,79,PZJ7#,RJ70..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| Common parts | ||||
| 90093-00811 | ||||
| 90094-00606 | ||||
| 90099-00222 | ||||
| 90099-04584 | ||||
| 93219-14008 | ||||
| 93311-16014 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00800 | ||||
| 94612-40601 | ||||

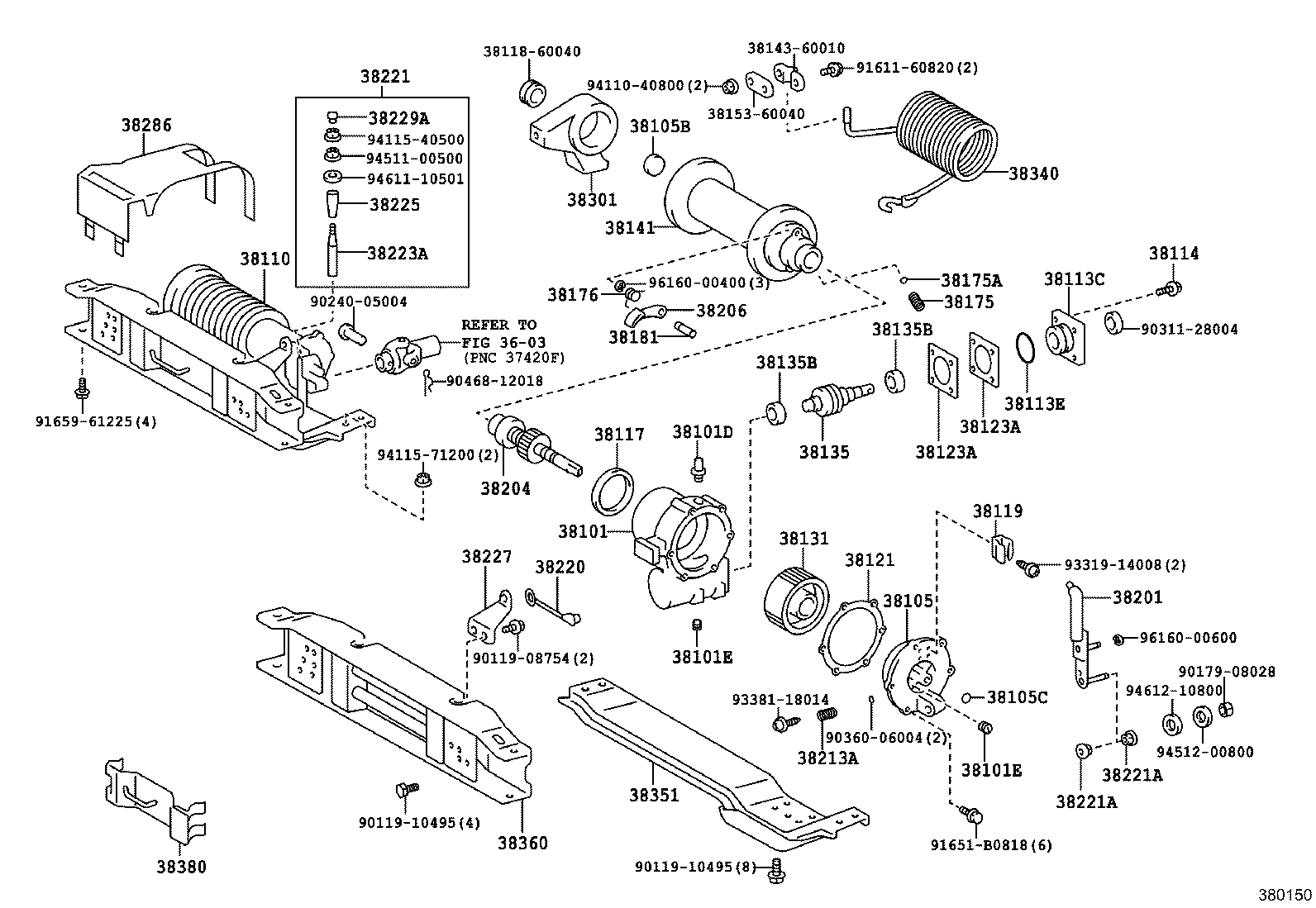

(9001-9604)LJ72,79,RJ7#..GCC,GEN
MECHANICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60210 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38101-60210 |
LJ72,77,79,RJ7#..GEN ELECTRICAL |
1 | ||
| 38101-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN MECHANICAL |
1 | ||
| 38101-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) MECHANICAL |
1 | ||
| 38101D - PLUG, BREATHER (FOR WINCH GEAR CASE) | ||||
| 90930-03058 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-51005 |
LJ72,79,RJ7#..GCC,GEN |
2 | ||
| 90344-51005 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-51005 |
LJ72,79,RJ7#..GCC,GEN |
2 | ||
| 90344-51005 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..GCC,GEN |
2 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60180 |
HZJ75..5F..(GCC,GEN);LJ72,79,PZJ7#,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38105-60170 |
LJ72,79,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38105-60180 |
RJ77..GEN;HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN MECHANICAL |
1 | ||
| 38105-60170 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN ELECTRICAL |
1 | ||
| 38105-60170 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) ELECTRICAL |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-55001 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38105C - RING, O (FOR WINCH GEAR CASE COVER) | ||||
| 96721-24016 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38110 - WINCH ASSY | ||||
| 38110-60190 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60192 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60210 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38110-60192 |
LJ72,79,RJ7#..GEN MECHANICAL |
1 | ||
| 38110-60212 |
LJ72,77,79,RJ7#..GEN ELECTRICAL |
1 | ||
| 38110-60211 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38110-60191 |
LJ72,79,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38110-60212 |
LJ7#,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38113C - RETAINER, WORM BEARING, NO.1 | ||||
| 38113-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38113-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38113E - RING, O (FOR WINCH WORM BEARING RETAINER NO.1) | ||||
| 96721-35071 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 96721-35071 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38114 - BOLT, WINCH WORM BEARING RETAINER | ||||
| 38114-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
4 | ||
| 38114-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
4 | ||
| 38117 - SEAL, WINCH GEAR CASE COVER | ||||
| 38117-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38117-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38119 - CLIP, WINCH GEAR CASE COVER | ||||
| 38119-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38119-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60180 |
HZJ75..5F..(GCC,GEN);LJ72,79,PZJ7#,RJ7#..GCC,GEN MECHANICAL |
1 | ||
| 38121-60170 |
LJ72,79,RJ7#..GCC,GEN ELECTRICAL |
1 | ||
| 38121-60170 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN ELECTRICAL |
1 | ||
| 38121-60180 |
RJ77..GEN;HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN MECHANICAL |
1 | ||
| 38121-60170 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) ELECTRICAL |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38123-60180 |
LJ72,79,RJ7#..GEN T=0.228 |
1 | ||
| 38125-60180 |
LJ72,79,RJ7#..GCC,GEN T=1.000 |
1 | ||
| 38124-60180 |
LJ72,79,RJ7#..GCC,GEN T=0.500 |
1 | ||
| 38125-60180 |
LJ72,79,RJ7#..GEN T=1.000 |
1 | ||
| 38124-60180 |
LJ72,79,RJ7#..GEN T=0.500 |
1 | ||
| 38123-60180 |
LJ72,79,RJ7#..GCC,GEN T=0.228 |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38123-60180 |
LJ72,79,RJ7#..GEN T=0.228 |
1 | ||
| 38125-60180 |
LJ72,79,RJ7#..GCC,GEN T=1.000 |
1 | ||
| 38124-60180 |
LJ72,79,RJ7#..GCC,GEN T=0.500 |
1 | ||
| 38125-60180 |
LJ72,79,RJ7#..GEN T=1.000 |
1 | ||
| 38124-60180 |
LJ72,79,RJ7#..GEN T=0.500 |
1 | ||
| 38123-60180 |
LJ72,79,RJ7#..GCC,GEN T=0.228 |
1 | ||
| 38131 - GEAR, WORM | ||||
| 38131-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38131-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38135 - WORM, WINCH | ||||
| 38135-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38135-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
2 | ||
| 97600-30206 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
2 | ||
| 97600-30206 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
2 | ||
| 38141 - DRUM, WINCH | ||||
| 38141-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38141-60181 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38141-60181 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38175 - SPRING, WINCH BRAKE, NO.1 | ||||
| 38175-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
3 | ||
| 38175-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
3 | ||
| 38175A - BALL (FOR WINCH BRAKE SPRING NO.1) | ||||
| 90360-11001 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
3 | ||
| 90360-11001 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
3 | ||
| 38176 - SPRING, WINCH BRAKE, NO.1 | ||||
| 38176-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
3 | ||
| 38176-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
3 | ||
| 38181 - PIN, WINCH BRAKE | ||||
| 38181-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
3 | ||
| 38181-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
3 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-60191 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38201-60190 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38201-60191 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38204 - SHAFT ASSY, WINCH CLUTCH HUB | ||||
| 38204-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38204-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38206 - BRAKE ASSY, WINCH | ||||
| 38206-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38206-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38213A - SPRING, WINCH CLUTCH HUB SHIFT | ||||
| 38213-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38213-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38220 - CAP ASSY, WINCH CLUTCH LEVER | ||||
| 38220-60010 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38220-60010 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60181 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38221-60180 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38221-60181 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-13007 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
2 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-13007 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
2 | ||
| 38223A - LEVER, WINCH CLUTCH | ||||
| 38223-60181 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38223-60180 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38223-60181 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60180 |
LJ72..5F;LJ72..SOT;RJ70..RHD..GEN |
1 | ||
| 38225-60040 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) ELECTRICAL |
1 | ||
| 38225-60040 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN ELECTRICAL |
1 | ||
| 38227 - PLATE, WINCH CLUTCH LEVER SHIFT LOCK | ||||
| 38227-60190 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38227-60190 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38229A - COVER, WINCH CLUTCH | ||||
| 38229-60180 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38229-60180 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-60110 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) ELECTRICAL |
1 | ||
| 38286-60100 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN MECHANICAL |
1 | ||
| 38286-60100 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) MECHANICAL |
1 | ||
| 38286-60110 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN ELECTRICAL |
1 | ||
| 38301 - BRACKET SUB-ASSY, WINCH END | ||||
| 38301-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38301-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60180 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 38340-60180 |
RJ77..GEN;FJ7#,HZJ75,LJ72,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60190 |
LJ72,79,RJ7#..GEN |
1 | ||
| 38351-60190 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60030 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38360-60031 |
LJ7#,RJ7#..GCC,GEN |
1 | ||
| 38360-60031 |
LJ72,77,79,RJ7#..GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60021 |
RJ77..GEN;FJ7#,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ70..GCC,GEN |
1 | ||
| 38380-60020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 38380-60021 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 38118-60040 | ||||
| 38143-60010 | ||||
| 38153-60040 | ||||
| 90119-08754 | ||||
| 90119-10495 | ||||
| 90179-08028 | ||||
| 90240-05004 | ||||
| 90311-28004 | ||||
| 90360-06004 | ||||
| 90468-12018 | ||||
| 91611-60820 | ||||
| 91651-B0818 | ||||
| 91659-61225 | ||||
| 93319-14008 | ||||
| 93381-18014 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94115-71200 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94611-10501 | ||||
| 94612-10800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
