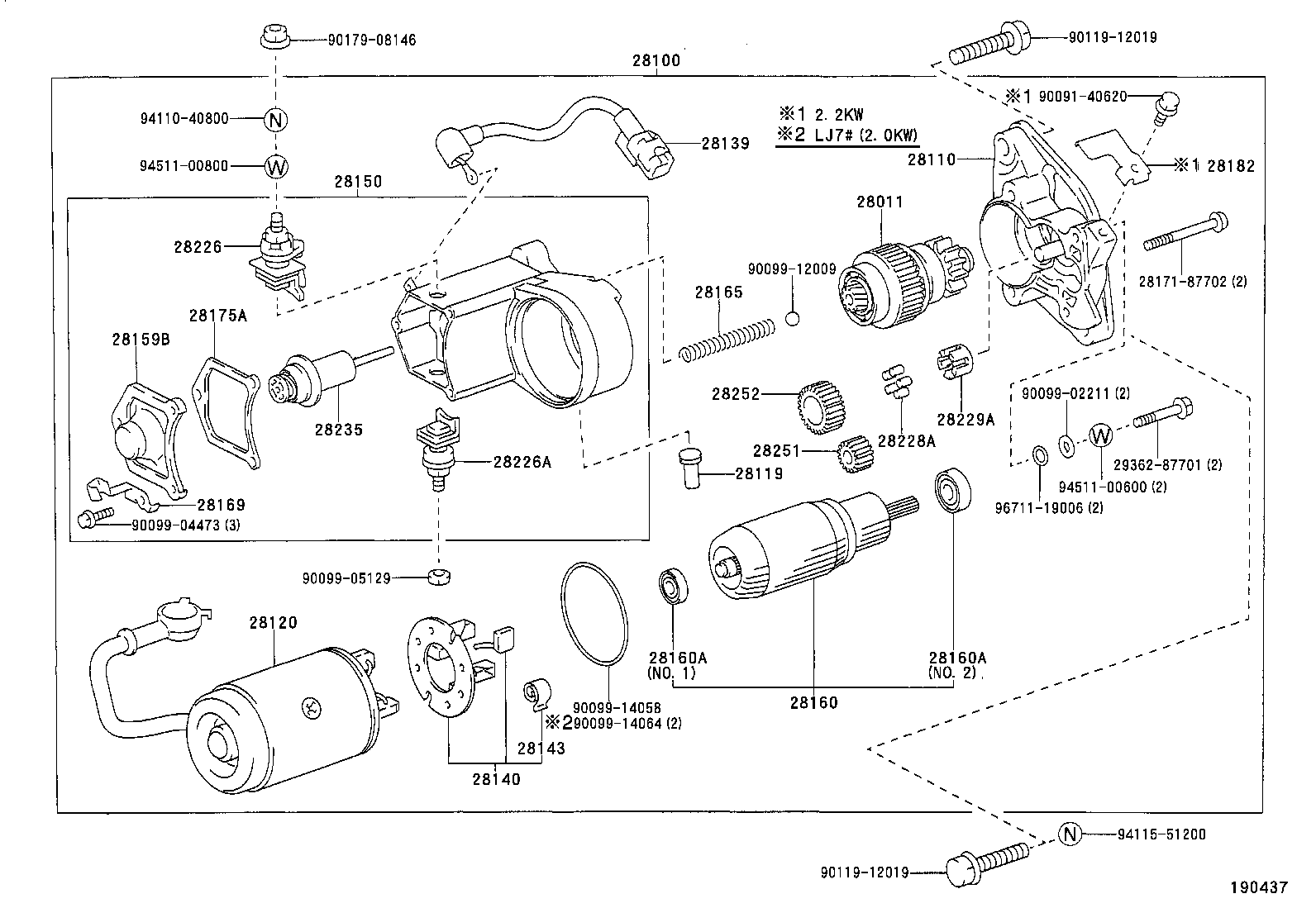

Toyota Land cruiser LJ70 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
28100 - STARTER ASSY
28100-54100	2LT,3L..LJ7# 12V 2.0KW	01/1990 - 08/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28115-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
28119 - COVER, STARTER END FRAME
28199-77090	1HZ,2H,2LT,1PZ..HJ75,HZJ7#,LJ70,PZJ7# NO.1	01/1990 - 04/1990	1
28120 - YOKE ASSY, STARTER
28120-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-54100	2LT,3L..LJ7#	01/1990 - 04/1991	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
28143 - SPRING, STARTER BRUSH
90099-17115	2LT,3L..LJ7#	01/1990 - 05/1993	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-54070	2LT,3L..LJ7#	01/1990 - 04/1991	1
28160 - ARMATURE ASSY, STARTER
28160-54071	2LT,3L..LJ7#	01/1990 - 05/1993	1
28160A - BEARING, STARTER ARMATURE
28253-54070	2LT,3L..LJ7# NO.2	01/1990 - 05/1993	1
90099-10131	2LT,3L..LJ7# NO.1	01/1990 - 05/1993	1
28160A - BEARING, STARTER ARMATURE
28253-54070	2LT,3L..LJ7# NO.2	01/1990 - 05/1993	1
90099-10131	2LT,3L..LJ7# NO.1	01/1990 - 05/1993	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	22R,3F,2LT,3L..FJ7#,LJ7#,RJ7#	01/1990 - 05/1993	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54100	2LT,3L..LJ7#	04/1990 - 01/1991	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79;22R,1FZF,3F,2LT,3L..FJ7#,FZJ70,73,75,LJ7#,RJ7#	01/1990 - 05/1993	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	22R,3F,2LT,3L..FJ7#,LJ7#,RJ7#	01/1990 - 05/1993	1
28251 - PINION, STARTER DRIVE
28251-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
28252 - GEAR, STARTER IDLE
28254-54070	2LT,3L..LJ7#	01/1990 - 05/1993	1
Common parts
28171-87702
29362-87701
90091-40620
90099-02211
90099-04473
90099-05129
90099-12009
90099-14058
90099-14064
90119-12019
90179-08146
94110-40800
94115-51200
94511-00600
94511-00800
96711-19006

LJ70RV-MNXQ (1990)

(9001-9604)1KZT,2LT,3L
