LJ70LV-MNX (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001-9908)FJ70,73,FZJ70,73,HZJ70,73,KZJ7#,LJ7#,PZJ70,73,RJ7# ; (9908- )FZJ71,74

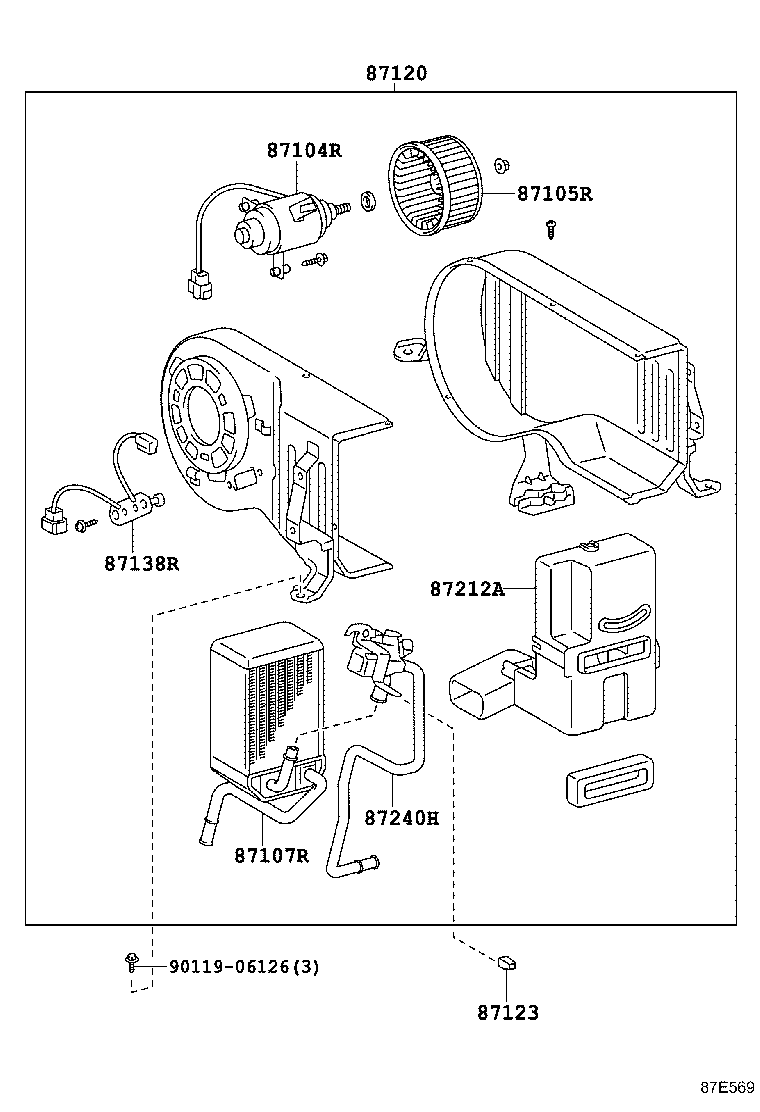

REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-90K03 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..GEN |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-90K02 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-90K00 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12070 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-90K02 |
FZJ70,75..HT..GEN..CBR;FJ7#,FZJ71,73,74,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT..GEN |
1 | ||
| 87212A - DUCT, AIR, REAR NO.1 | ||||
| 87212-90K00 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-90K05 |
FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
ILLUST NO. 2 OF 3(9001- )
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-89110 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-90K01 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60290 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60240 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75..LHD MARK=87150-60240 |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-60030 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87248-90K02 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87248-90K05 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75..LHD |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
ILLUST NO. 1 OF 3(9001- )
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-60060 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
