KZJ77RV-MNX (1993)
Toyota Land Cruiser
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69345 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69345 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60550 |
FJ70,75,FZJ70,75,HZJ75,PZJ70,RJ70..RHD..(HT,PIC)..GEN;FZJ71,78,79,HZJ71,78,79,LJ72,77,79,PZJ75,RJ77..RHD..(HT,PIC) W(INTERMITTENT WIPER) |
1 | ||
| 84310-60540 |
HZJ79..ARL..IV;FJ70,75,FZJ70,71,75,78,79,HZJ71,75,78,79,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN |
1 | ||
| 84310-60540 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD |
1 | ||
| 84310-60550 |
KZJ77,LJ7#,RJ77..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60550 |
FJ70,75,FZJ70,75,HZJ75,PZJ70,RJ70..RHD..(HT,PIC)..GEN;FZJ71,78,79,HZJ71,78,79,LJ72,77,79,PZJ75,RJ77..RHD..(HT,PIC) W(INTERMITTENT WIPER) |
1 | ||
| 84310-60540 |
HZJ79..ARL..IV;FJ70,75,FZJ70,71,75,78,79,HZJ71,75,78,79,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN |
1 | ||
| 84310-60540 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD |
1 | ||
| 84310-60550 |
KZJ77,LJ7#,RJ77..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60240 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN |
1 | ||
| 84450-60120 |
FJ75,FZJ75..PIC..GEN;FJ70,73,FZJ70,73,LJ70,77,RJ7#..LX..GEN W(TILT STEERING) |
1 | ||
| 84450-60140 |
RJ70..HT;FZJ7#,KZJ7#,RJ77..GEN |
1 | ||
| 84450-60120 |
FZJ75..PIC..GEN;FZJ70,73,KZJ7#,RJ7#..LX..GEN W(TILT STEERING) |
1 | ||
| 84450-60140 |
FJ7#,FZJ7#,LJ70,77,RJ7#..GEN |
1 | ||
| 84450-60250 |
LJ79..LHD..LX;KZJ7#,RJ7#..LX..GEN W(TILT STEERING) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FJ70,75,FZJ70,71,75,78,79,HZJ71,75,78,79,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN |
1 | ||
| 84652-69425 |
FJ70,75,FZJ70,75,HZJ75,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN W(INTERMITTENT WIPER) |
1 | ||
| 84652-69415 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD |
1 | ||
| 84652-69425 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FJ70,75,FZJ70,71,75,78,79,HZJ71,75,78,79,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN |
1 | ||
| 84652-69425 |
FJ70,75,FZJ70,75,HZJ75,LJ72,77,79,PZJ70,75,RJ7#..RHD..(HT,PIC)..GEN W(INTERMITTENT WIPER) |
1 | ||
| 84652-69415 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD |
1 | ||
| 84652-69425 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD W(INTERMITTENT WIPER) |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZJ7#,LJ7#,RJ7#..HT 10A |
1 | ||
| 90080-82014 |
KZJ7#,LJ7#,RJ7#..HT 20A,YELLOW |
1 | ||
| 90982-09005 |
KZJ7#,LJ7#,RJ7#..HT 7.5A |
1 | ||
| 90982-10001 |
KZJ7#,LJ7#,RJ7#..HT 30A,PINK |
1 | ||
| 90080-82013 |
KZJ7#,LJ7#,RJ7#..HT 15A,BLUE,(L) |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60032 |
KZJ7#,LJ7# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZJ7#,LJ7#,RJ7#..HT 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
KZJ7#,LJ7#,RJ7#..HT HEAD LAMP |
1 | ||
| 90987-01003 |
KZJ7#,LJ7#,RJ7#..HT TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
KZJ7#,LJ7#,RJ7#..HT HEAD LAMP |
1 | ||
| 90987-01003 |
KZJ7#,LJ7#,RJ7#..HT TAIL LAMP |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,RJ7#..ARL,GCC,GEN |
1 | ||
| 90987-03001 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN |
1 | ||
| 90987-03001 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-60030 |
KZJ7#,LJ7# |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-60030 |
KZJ7#,LJ7# |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-67010 |
1KZT..KZJ7# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-67010 |
1KZT..KZJ7# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-67010 |
1KZT..KZJ7# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54170 |
1KZT..KZJ7# |
1 | ||
| 28529-54170 |
1KZT,3L..KZJ7#,LJ7# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54170 |
1KZT..KZJ7# |
1 | ||
| 28529-54170 |
1KZT,3L..KZJ7#,LJ7# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02004 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60030 |
RJ70..HT;PZJ75..5F;FZJ7#,HZJ7#,KZJ7#,LJ7#,RJ77 |
1 | ||
| 85940-60030 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-60010 |
KZJ77..RHD |
1 | ||
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||

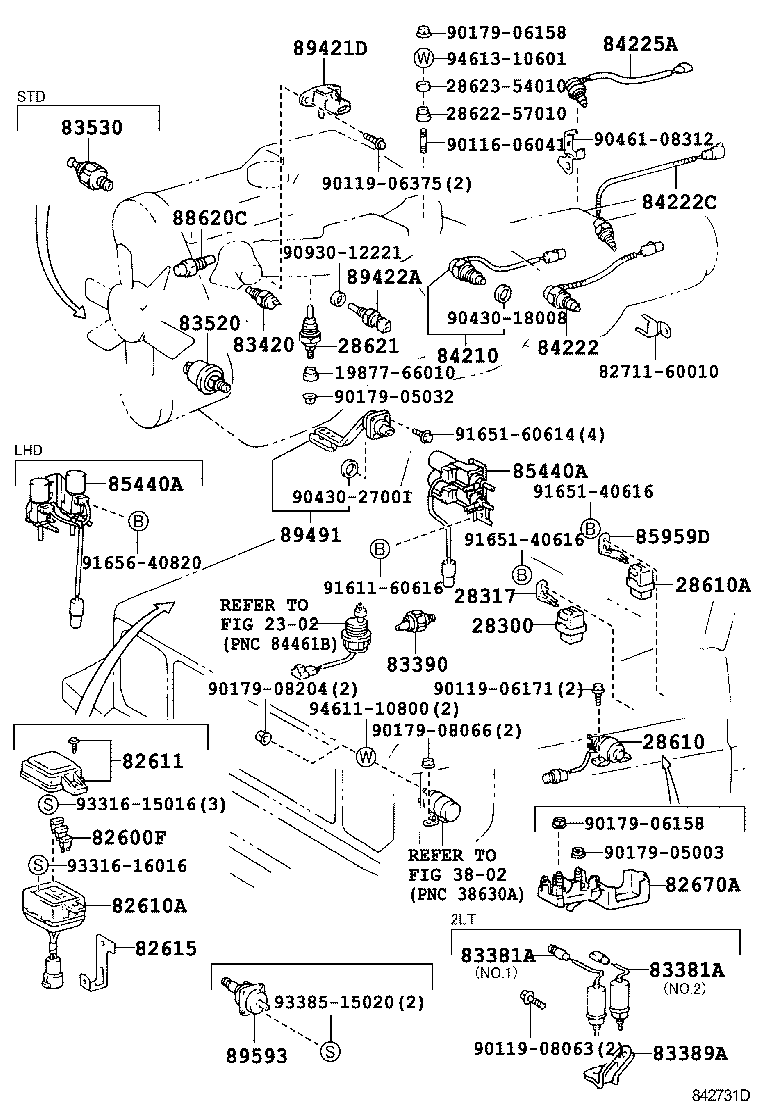

ILLUST NO. 1 OF 7(9001-9604)LJ7# ; (9305-9604)KZJ7#
ENGINE & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54110 |
1KZT,3L..KZJ7#,LJ7# |
1 | ||
| 28317 - BRACKET, STARTER RELAY | ||||
| 28317-54020 |
1KZT,3L..KZJ7#,LJ7# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-67010 |
1KZT..KZJ7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZJ7#,LJ7#,RJ7#..HT 10A |
1 | ||
| 90080-82014 |
KZJ7#,LJ7#,RJ7#..HT 20A,YELLOW |
1 | ||
| 90982-09005 |
KZJ7#,LJ7#,RJ7#..HT 7.5A |
1 | ||
| 90982-10001 |
KZJ7#,LJ7#,RJ7#..HT 30A,PINK |
1 | ||
| 90080-82013 |
KZJ7#,LJ7#,RJ7#..HT 15A,BLUE,(L) |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K01 |
KZJ7#,LJ7# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-16050 |
LJ70,77 NO.1 |
1 | ||
| 83381-60060 |
LJ70,77 NO.2 |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-16050 |
LJ70,77 NO.1 |
1 | ||
| 83381-60060 |
LJ70,77 NO.2 |
1 | ||
| 83389A - BRACKET, PRESSURE SWITCH | ||||
| 83389-60060 |
LJ70,77 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
KZJ7#,LJ7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ70,PZJ70..ARL;FJ70,75,PZJ70,RJ7#..LX;FJ75,HZJ75,LJ72..ARL,GEN;FJ73,HZJ70,73,LJ70,77,79,PZJ73,75..HT,PIC |
1 | ||
| 83520-60030 |
KZJ7#,RJ7#..HT |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60022 |
KZJ7#,LJ7#,RJ7#..HT TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60041 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN |
1 | ||
| 84222-60041 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 84222-60041 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,RJ7#..ARL,GCC,GEN |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-35010 |
KZJ7# |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60140 |
HZJ75..ARL;HZJ75..GEN..IV;HZJ70,KZJ77,LJ72,PZJ73,75..RHD;HZJ75,LJ79,PZJ70..RHD..HT..STD..GEN |
1 | ||
| 85440-60140 |
LJ79..RHD..STD;KZJ77,LJ72..RHD |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60140 |
HZJ75..ARL;HZJ75..GEN..IV;HZJ70,KZJ77,LJ72,PZJ73,75..RHD;HZJ75,LJ79,PZJ70..RHD..HT..STD..GEN |
1 | ||
| 85440-60140 |
LJ79..RHD..STD;KZJ77,LJ72..RHD |
1 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-60050 |
KZJ7# |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88790-60050 |
HZJ75..HT..ARL;HZJ75,LJ70,77..GEN |
1 | ||
| 88790-60050 |
KZJ7# |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-60030 |
KZJ7# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
HZJ75,PZJ70..ARL;HZJ70,73,LJ70,77,PZJ73..HT;HZJ75,PZJ70..(PIC,SOT)..4F..CBU |
1 | ||
| 89422-20010 |
KZJ7# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25020 |
KZJ7# |
1 | ||
| 89491-60040 |
KZJ7# |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-60010 | ||||
| 90116-06041 | ||||
| 90119-06171 | ||||
| 90119-06375 | ||||
| 90119-08063 | ||||
| 90179-05003 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90179-08066 | ||||
| 90179-08204 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 90930-12221 | ||||
| 91611-60616 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 91656-40820 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 3802 | ||||
ILLUST NO. 3 OF 7(9001-0808)RHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 84160-90K01 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90K00 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 84731-12032 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60050 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN |
1 | ||
| 84722-60050 |
RJ70..HT;PZJ75..5F;LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ77..ARL,GCC,GEN |
1 | ||
| 84722K - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN 12V 1.12W |
1 | ||
| 84999-10170 |
RJ70..HT;PZJ75..5F;LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ77..ARL,GCC,GEN 12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K02 |
FJ70,75,FZJ70,71,75,78,79,HZJ71,75,78,79,LJ72,77,79,PZJ7#,RJ7#..RHD..GEN W(AIR CONDITIONER) |
1 | ||
| 84660-90K02 |
LJ79,PZJ70..RHD..HT..STD;FZJ70,75,HZJ75,KZJ77,LJ72,PZJ73,75,RJ77..RHD..GEN W(AIR CONDITIONER) |
1 | ||
| 84660-90K02 |
LJ79,PZJ70..RHD..HT..STD;HZJ75,KZJ77,LJ72,PZJ73,75,RJ77..RHD..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-90K02 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 84660-90K02 |
LJ79..RHD..STD;KZJ77,LJ72,RJ77..RHD W(AIR CONDITIONER) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
LJ79..STD;LJ79..LHD..LX;FZJ73,PZJ70,73,RJ70;FZJ70,75,HZJ7#,KZJ7#,LJ72,PZJ75,RJ77..(HT,PIC)..(ARL,GCC,GEN) W(AIR CONDITIONER) |
1 | ||
| 84731-12010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84731-20030 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# W(AIR CONDITIONER) |
1 | ||
| 84731-20030 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,PZJ7#,RJ7#..ARL,GCC,GEN W(AIR CONDITIONER) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12120 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60020 |
KZJ7#,LJ79,RJ7#..LX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-60030 |
KZJ7#,LJ7#,RJ7# 12V |
1 | ||
| 85500-17010 |
HZJ75,PZJ75..RHD..5F;FZJ7#,HZJ70,KZJ7#,LJ7#,RJ77;HZJ75,RJ70..LHD..(HT,PIC)..CBU |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
KZJ7#,LJ7#,RJ7# 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-17020 |
KZJ7#,LJ7#,RJ7# 12V |
1 | ||
| Common parts | ||||
| 90164-50025 | ||||
| 90170-09002 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69135 |
KZJ7#,LJ7# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-60010 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20120 |
KZJ77,LJ79,RJ77 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20120 |
KZJ77,LJ79,RJ77 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84535-22080 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
KZJ7#,LJ7#,RJ7#..HT TYPE B:REFER ILLUST. |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-60011 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90K04 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LJ79..LHD..LX;KZJ77,RJ77..LX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LJ79..LHD..LX;KZJ77,RJ77..LX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LJ79..LHD..LX;KZJ77,RJ77..LX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32140 |
KZJ77,RJ77..RHD..LX |
1 | ||
| 84820-35020 |
KZJ77,RJ77..RHD..LX |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-6001006 |
LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,RJ7#..LX LIGHT SABLE,TRIM4# |
1 | ||
| 84930-6001003 |
LJ79..LHD..LX;KZJ7#,RJ7#..LX LIGHT GRAY,TRIM1# |
1 | ||
| 84930-60010E0 |
LJ79..LHD..LX;KZJ7#,RJ7#..LX LIGHT OAK,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-60010 |
KZJ77,RJ77..RHD..LX |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-60021 |
LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 85921-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-90K04 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-60061 |
KZJ77,RJ77..RHD..LX |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN);FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT NO.1 |
1 | ||
| 83481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX NO.2 |
1 | ||
| 83481-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX W(SUN ROOF),NO.2 |
1 | ||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN);FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT NO.1 |
1 | ||
| 83481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX NO.2 |
1 | ||
| 83481-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX W(SUN ROOF),NO.2 |
1 | ||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN);FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT NO.1 |
1 | ||
| 83481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX NO.2 |
1 | ||
| 83481-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX W(SUN ROOF),NO.2 |
1 | ||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN);FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT NO.1 |
1 | ||
| 83481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX NO.2 |
1 | ||
| 83481-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX W(SUN ROOF),NO.2 |
1 | ||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN);FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT NO.1 |
1 | ||
| 83481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX NO.2 |
1 | ||
| 83481-60020 |
LJ79..LHD..LX;KZJ77,RJ77..LX W(SUN ROOF),NO.2 |
1 | ||
| 83481-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT NO.1 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
LJ79..STD;LJ79..LHD..LX;FZJ70,73,HZJ70,KZJ7#,LJ72,PZJ70,RJ7#..HT |
1 | ||
| 89437-90A00 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
