KZJ77RV-MNX (1993)
Toyota Land Cruiser
Production
May 1993
-
Apr 1996
Engine
1KZT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

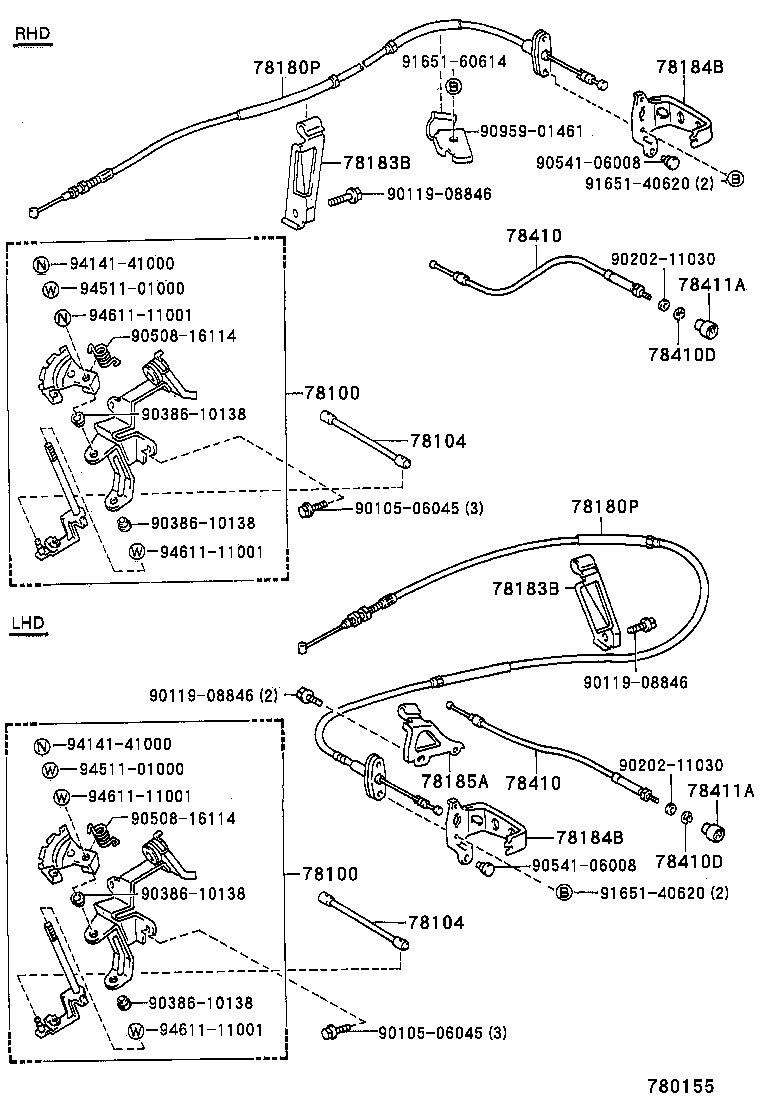

ILLUST NO. 1 OF 2(9305- )KZJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-60050 |
KZJ7# |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-60050 |
KZJ7# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-60030 |
KZJ7# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-60030 |
KZJ7# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60330 |
KZJ77..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60330 |
KZJ77..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-60060 |
KZJ77..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-60060 |
KZJ77..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K02 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K02 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 90105-06045 | ||||
| 90119-08846 | ||||
| 90202-11030 | ||||
| 90386-10138 | ||||
| 90508-16114 | ||||
| 90541-06008 | ||||
| 90959-01461 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
ILLUST NO. 2 OF 2(9001-0808)HZJ78 ; (9001-0808)FJ7#,FZJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZJ7#,RJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-29017 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78111E - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
FZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 45619-14010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K08 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50845 |
FZJ70,75,HZJ7#,KZJ77,LJ7#,PZJ7#,RJ77..RHD |
1 | ||
| 91131-40850 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
KZJ77,LJ7#,RJ77..RHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| 96160-00600 | ||||
