KZJ77RV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)KZJ7#,LJ7#,RJ7#

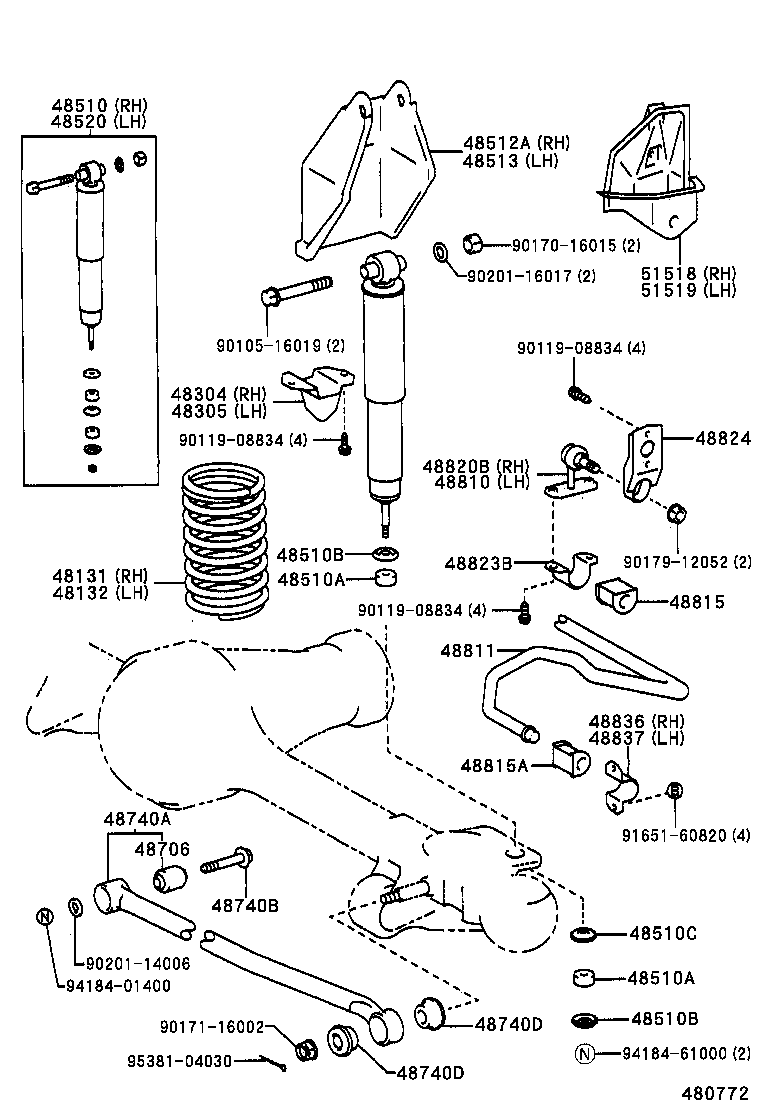

Click highlighted areas on diagram

diagram 48131 48132 48304 48305 48510 48510A 48510A 48510B 48510B 48510C 48512A 48513 48520 48706 48740A 48740B 48740D 48740D 48810 48811 48815 48815A 48820B 48823B 48824 48836 48837 51518 51519 9010516019 9011908834 9011908834 9011908834 9017016015 9017116002 9017912052 9020114006 9020116017 9165160820 9418401400 9418461000 9538104030
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-6A680

KZJ77

 1
48131-6A690

KZJ77

W(WINCH)

 1
48132 - SPRING, FRONT COIL, LH
48131-6A680

LJ79..LHD;KZJ77..RHD

W(WINCH)

 1
48131-6A670

KZJ77..RHD

 1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-60042

KZJ7#,LJ7#,RJ7#..HT

 1
48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2
48305-60012

KZJ7#,LJ7#,RJ7#..HT

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-69405

KZJ7#,LJ7#,RJ7#..HT

MARK 48511-60221

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KZJ7#,LJ7#,RJ7#..HT

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KZJ7#,LJ7#,RJ7#..HT

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02114

KZJ7#,LJ7#,RJ7#..HT

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02114

KZJ7#,LJ7#,RJ7#..HT

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02017

KZJ7#,LJ7#,RJ7#..HT

 2
48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-60070

KZJ7#,LJ7#,RJ7#

 1
48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48513-60040

KZJ7#,LJ7#,RJ7#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-69405

KZJ7#,LJ7#,RJ7#..HT

MARK 48511-60221

 1
48706 - BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD
48706-60011

KZJ7#,LJ7#,RJ7#..HT

 1
48740A - ROD ASSY, FRONT LATERAL CONTROL
48740-60023

KZJ77,LJ7#,RJ77..RHD

 1
48740B - BOLT(FOR FRONT LATERAL CONTROL ROD)
90105-14034

KZJ7#,LJ7#,RJ7#

 1
90105-14034

KZJ7#,LJ7#,RJ7#

 1
48740D - BUSH(FOR FRONT LATERAL CONTROL ROD)
90389-20001

KZJ7#,LJ7#,RJ7#

 2
90389-20001

KZJ7#,LJ7#,RJ7#

 2
48740D - BUSH(FOR FRONT LATERAL CONTROL ROD)
90389-20001

KZJ7#,LJ7#,RJ7#

 2
90389-20001

KZJ7#,LJ7#,RJ7#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60010

KZJ7#,LJ7#,RJ7#

 1
48810-60010

KZJ7#,LJ7#,RJ7#

 1
48811 - BAR, STABILIZER, FRONT
48811-60110

KZJ77,LJ79,RJ77

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26020

FZJ75..HT..GCC;FZJ75,HZJ75..ARL,GEN;FZJ70,73,HZJ70,KZJ77,LJ79,PZJ7#,RJ77

 2
48815-26020

KZJ77,LJ79,RJ77

 2
48815A - BUSH, FRONT STABILIZER BAR, NO.2
48815-60030

KZJ7#,LJ7#,RJ7#

 2
48815-60030

KZJ7#,LJ7#,RJ7#

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60010

KZJ7#,LJ7#,RJ7#

 1
48820-60010

KZJ7#,LJ7#,RJ7#

 1
48823B - COVER, FRONT STABILIZER BRACKET
48823-60030

KZJ7#,LJ7#,RJ7#

 2
48823-60030

FZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN

 2
48824 - BRACKET, STABILIZER, FRONT
48824-60041

KZJ7#,LJ7#,RJ7#..HT

 2
48836 - BRACKET, FRONT STABILIZER END, RH
48836-60020

KZJ7#,LJ7#,RJ7#

 1
48836-60020

KZJ7#,LJ7#,RJ7#

 1
48837 - BRACKET, FRONT STABILIZER END, LH
48836-60020

KZJ7#,LJ7#,RJ7#

 1
48836-60020

KZJ7#,LJ7#,RJ7#

 1
51518 - BRACKET, LOWER ARM, RH
51518-60030

KZJ7#,LJ7#,RJ7#

 1
51518-60030

KZJ7#,LJ7#,RJ7#

 1
51519 - BRACKET, LOWER ARM, LH
51519-60020

KZJ7#,LJ7#,RJ7#

 1
51519-60020

KZJ7#,LJ7#,RJ7#

 1
Common parts
90105-16019
90119-08834
90170-16015
90171-16002
90179-12052
90201-14006
90201-16017
91651-60820
94184-01400
94184-61000
95381-04030
