KZJ77RV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

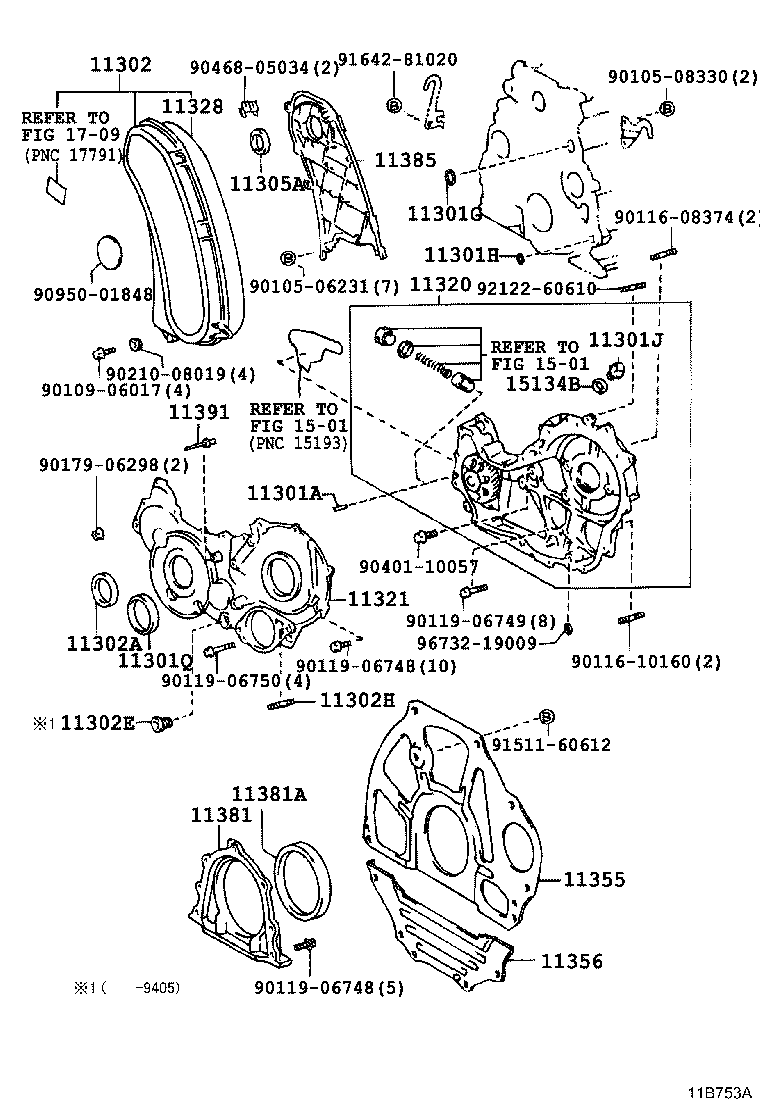

Click highlighted areas on diagram

diagram 11301A 11301G 11301H 11301J 11301Q 11302 11302A 11302E 11302H 11305A 11320 11321 11328 11355 11356 11381 11381A 11385 11391 1501 1501 15134B 1709 9010506231 9010508330 9010906017 9011608374 9011610160 9011906748 9011906748 9011906749 9011906750 9017906298 9021008019 9040110057 9046805034 9095001848 9151160612 9164281020 9212260610 9673219009
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KZT..KZJ7#

L=18,OD=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
96721-24022

1KZT..KZJ7#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
96721-24010

1KZT..KZJ7#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KZT..KZJ7#

 1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-58006

1KZT..KZJ7#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-67010

1KZT..KZJ7#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50017

1KZT..KZJ7#

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-22004

1KZT..KZJ7#

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376

1KZT..KZJ7#

 2
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017

1KZT..KZJ7#

 1
11320 - CASE ASSY, TIMING GEAR
11320-67010

1KZT..KZJ7#

 1
11320-67010

1KZT..KZJ7#

 1
11321 - CASE, TIMING GEAR
11321-67030

1KZT..KZJ7#

 1
11321-67031

1KZT..KZJ7#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-67020

1KZT..KZJ7#

 1
11355 - PLATE, REAR END
11355-67010

1KZT..KZJ7#

 1
11356 - PLATE, REAR END, NO.2
11356-67010

1KZT..KZJ7#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020

1KZT..KZJ7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95008

1KZT..KZJ7#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-67010

1KZT..KZJ7#

 1
11391 - POINTER, TIMING
11391-67010

1KZT..KZJ7#

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-20010

1KZT..KZJ7#

 1
15134-67010

1KZT..KZJ7#

 1
Common parts
90105-06231
90105-08330
90109-06017
90116-08374
90116-10160
90119-06748
90119-06749
90119-06750
90179-06298
90210-08019
90401-10057
90468-05034
90950-01848
91511-60612
91642-81020
92122-60610
96732-19009
Linked diagrams
1501
1709
