KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )KZJ7#

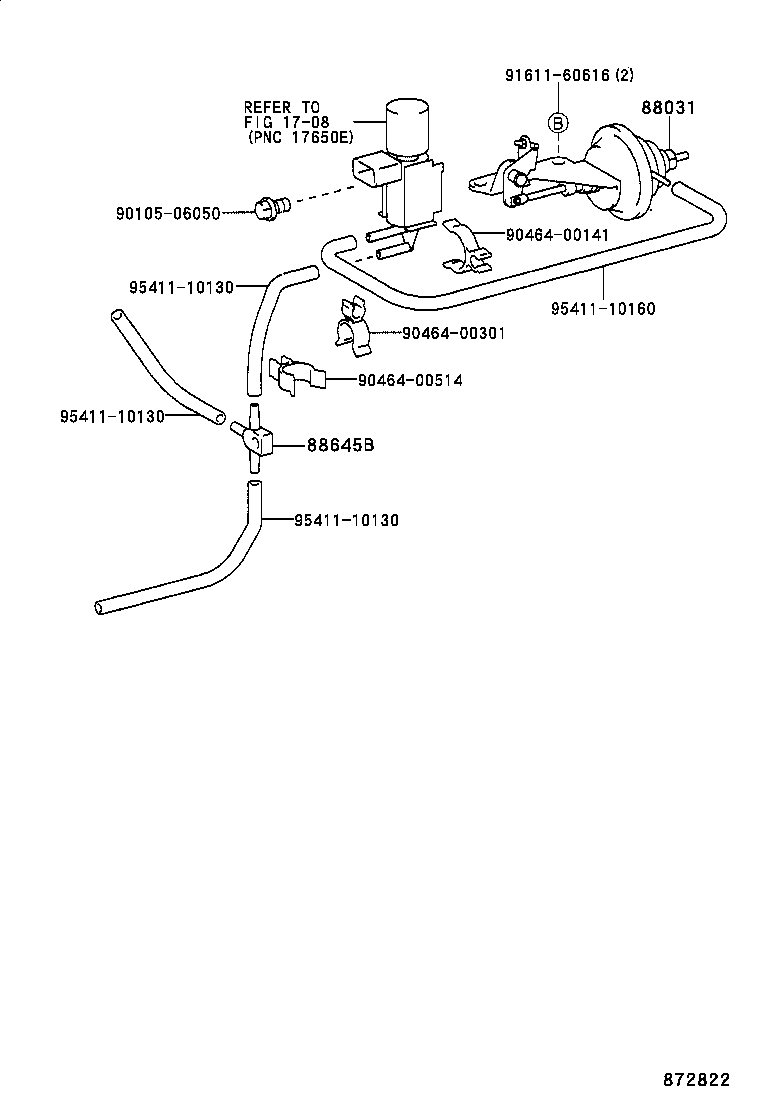

Click highlighted areas on diagram

diagram 1708 88031 88645B 9010506050 9046400141 9046400301 9046400514 9161160616 9541110130 9541110130 9541110130 9541110160
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,PZJ7#..ARL,GCC,GEN

 1
88031-25020

LJ70,77

 1
88031-30060

LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

KZJ7#

 1
Common parts
90105-06050
90464-00141
90464-00301
90464-00514
91611-60616
95411-10130
95411-10160
Linked diagrams
1708
