KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

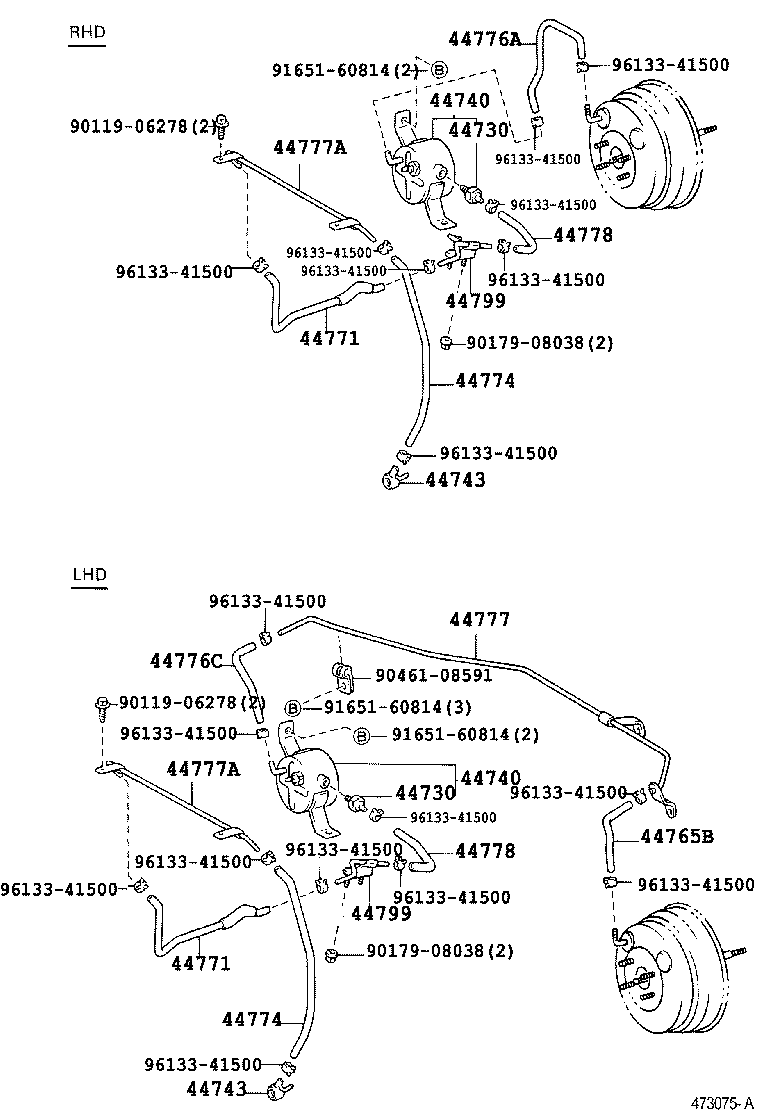

ILLUST NO. 2 OF 2(9305-9604)KZJ7#

Click highlighted areas on diagram

diagram 44730 44730 44740 44740 44743 44743 44765B 44771 44771 44774 44774 44776A 44776C 44777 44777A 44777A 44778 44778 44799 44799 9011906278 9011906278 9017908038 9017908038 9046108591 9165160814 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

KZJ7#,LJ7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

KZJ7#,LJ7#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60090

KZJ7#,LJ7#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60090

KZJ7#,LJ7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09171

KZJ7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09171

KZJ7#

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
44778-60130

KZJ7#..LHD

 1
95446-09190

KZJ7#..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-60030

KZJ7#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-60030

KZJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60190

KZJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60190

KZJ7#

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95446-09190

KZJ7#,LJ7#..LHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60020

KZJ7#..LHD

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60300

KZJ7#

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60300

KZJ7#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60030

KZJ7#,LJ7#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60030

KZJ7#,LJ7#

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-60100

KZJ7#

W(*ELC)

 1
44777-60290

KZJ7#

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-60100

KZJ7#

W(*ELC)

 1
44777-60290

KZJ7#

 1
Common parts
90119-06278
90179-08038
90461-08591
91651-60814
96133-41500
