KZJ77LV-MNX (1993)
Toyota Land Cruiser
Production
May 1993
-
Apr 1996
Engine
1KZT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9604)KZJ7#

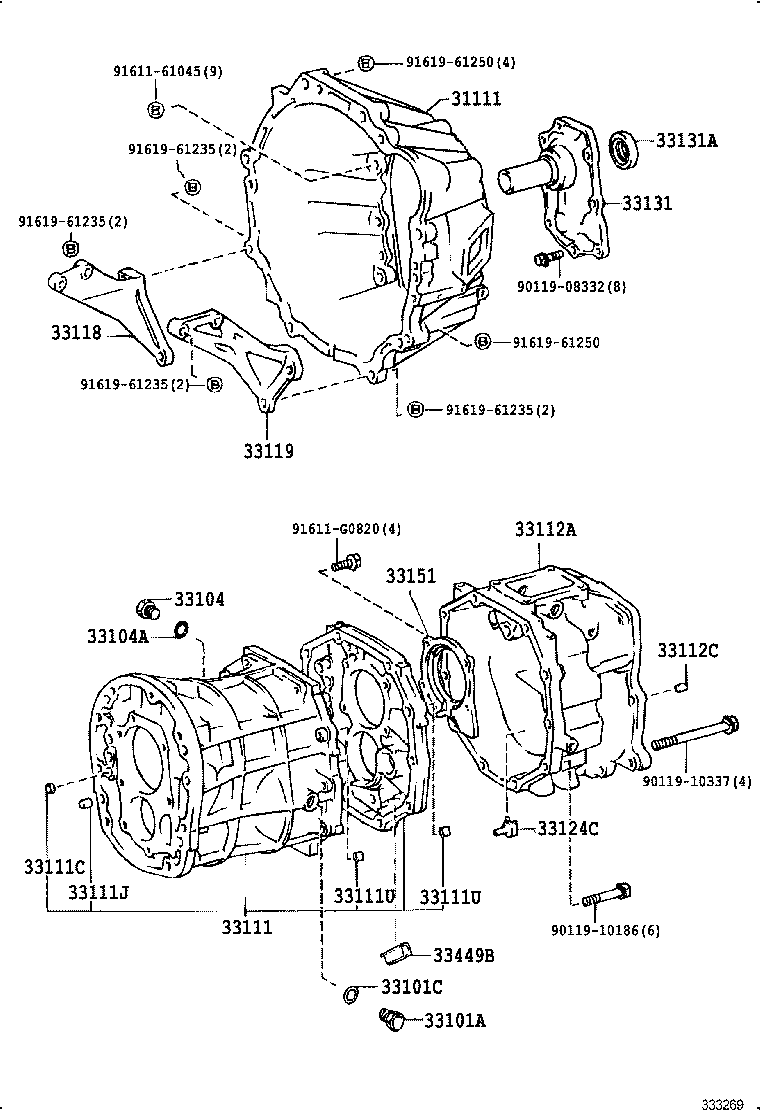

Click highlighted areas on diagram
R150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25030 |
LJ70,77 |
1 | ||
| 31111-60270 |
KZJ7# |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
FZJ70,73,75..GCC;HZJ71,78,79,LJ70,77,PZJ7# |
1 | ||
| 90341-18006 |
KZJ7# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-60020 |
LJ70,77,PZJ7# |
1 | ||
| 33101-60030 |
KZJ7# |
1 | ||
| 33101-60060 |
KZJ7# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KZJ7#,LJ7#,RJ7#..HT OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KZJ7# L=16,OD=12 |
2 | ||
| 90250-12002 |
LJ70,77,PZJ7# L=16,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LJ70,77,PZJ7# L=14,OD=15 |
4 | ||
| 90253-15001 |
KZJ7# L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LJ70,77,PZJ7# L=14,OD=15 |
4 | ||
| 90253-15001 |
KZJ7# L=14,OD=15 |
4 | ||
| 33112A - ADAPTER, TRANSFER | ||||
| 36117-60050 |
LJ70,77,PZJ7# |
1 | ||
| 36117-60050 |
KZJ7# |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12216 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-60050 |
KZJ7# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-60050 |
KZJ7# |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36010 |
KZJ7#,LJ79,RJ7#..LX |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35030 |
LJ70,77 |
1 | ||
| 33131-35031 |
KZJ7# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
LJ70,77,PZJ7# |
1 | ||
| 90311-32012 |
KZJ7# |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
LJ70,77,PZJ7# |
1 | ||
| 33151-35020 |
KZJ7# |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35010 |
KZJ7# |
1 | ||
| 33449-35010 |
FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ70,77,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-61045 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
