KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9001-9604)KZJ7#,LJ7#..LHD

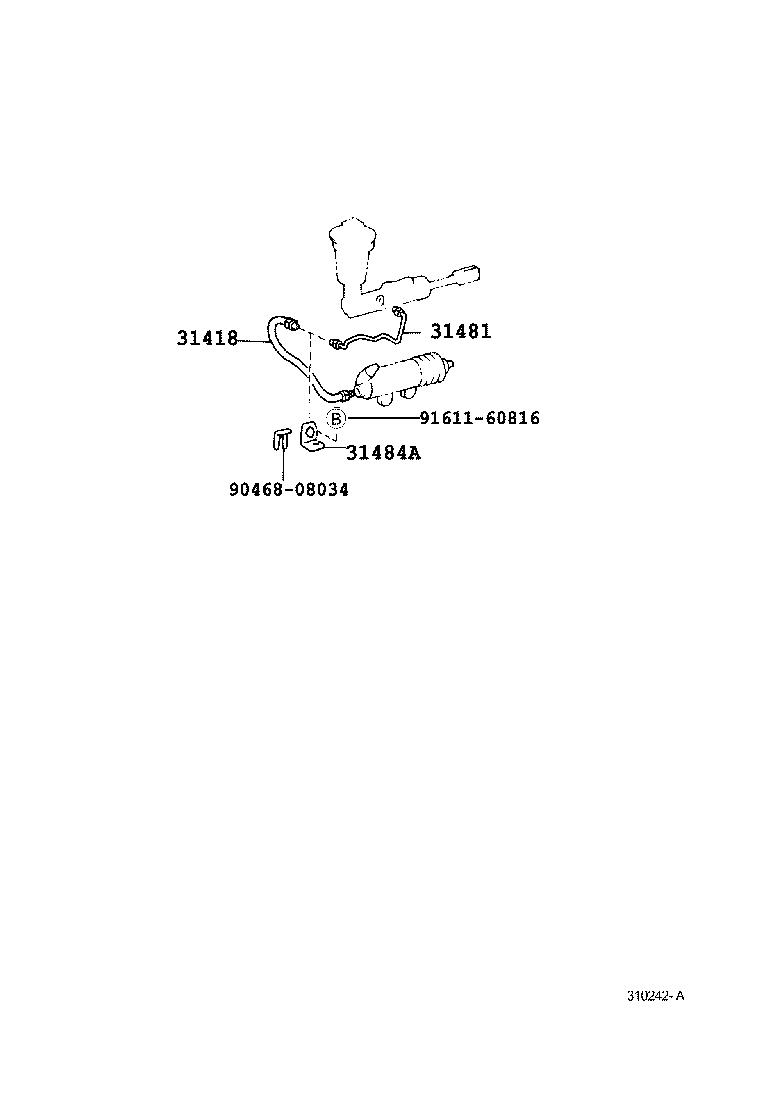

Click highlighted areas on diagram

diagram 31418 31481 31484A 9046808034 9161160816
Part # Description Qty Price
31418 - HOSE, CLUTCH
96812-50370

KZJ7#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60371

KZJ7#,LJ7#..LHD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60040

KZJ7#,LJ7#

 1
Common parts
90468-08034
91611-60816
