HZJ79L-TJMRS (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )FZJ7#,HZJ7#,VDJ7#

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28800J 28897 9011906915 9151261014 9151261014 9167180820 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60030

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800B - CABLE, BATTERY TO GROUND
82124-60160

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.2

 1
82124-60150

1HZ..HZJ7#

 1
82124-60150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.1

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60500

1HZ..HZJ7#..LHD

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GRFE,1HZ,1VDFTV..GRJ7#,HZJ7#,VDJ7#

 1
90982-06024

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28897 - PLATE, BATTERY CAUTION
28897-54030

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
Common parts
90119-06915
91512-61014
91671-80820
94151-80801

(0701- )HZJ76,78..GEN ; (0701- )HZJ71,79..DCB,PIC,SOT..GEN..CBU

Click highlighted areas on diagram

2-BATTERY

diagram 28800 28800 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 28800F 28800F 28800M 28800M 28800Q 28800Q 28800Q 28897 9011906915 9011906915 9017908204 9017908204 9046810034 9151261014 9167180820 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60030

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60030

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800B - CABLE, BATTERY TO GROUND
82124-60160

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.2

 1
82124-60150

1HZ..HZJ7#

 1
82124-60150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.1

 1
28800B - CABLE, BATTERY TO GROUND
82124-60160

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.2

 1
82124-60150

1HZ..HZJ7#

 1
82124-60150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.1

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60500

1HZ..HZJ7#..LHD

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60500

1HZ..HZJ7#..LHD

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800F - CABLE, BATTERY TO BATTERY
82123-60280

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800F - CABLE, BATTERY TO BATTERY
82123-60280

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800M - TERMINAL, BATTERY POSITIVE
90982-05058

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800M - TERMINAL, BATTERY POSITIVE
90982-05058

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800Q - COVER, CONNECTOR(FOR BATTERY)
82821-12150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800Q - COVER, CONNECTOR(FOR BATTERY)
82821-12150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28800Q - COVER, CONNECTOR(FOR BATTERY)
82821-12150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
28897 - PLATE, BATTERY CAUTION
28897-54030

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L

 1
Common parts
90119-06915
90179-08204
90468-10034
91512-61014
91671-80820
94151-80801

(0701- )HZJ7#..HT,PIC,SOT..GEN

Click highlighted areas on diagram

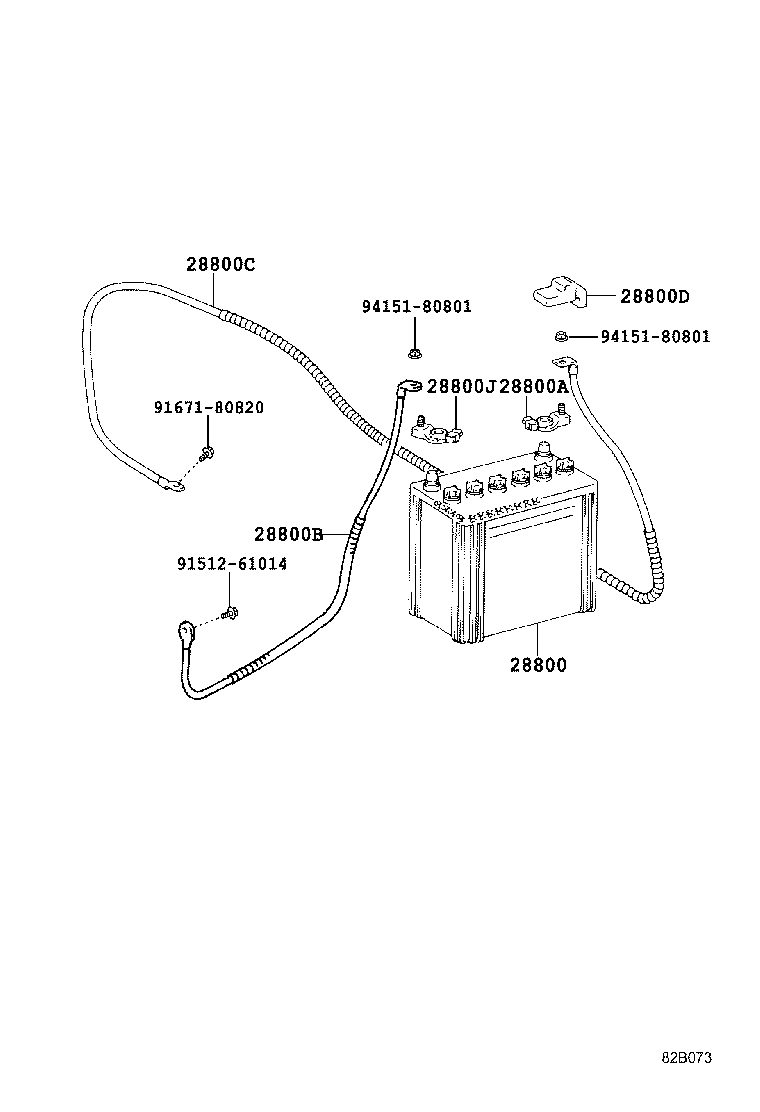

diagram 28800 28800A 28800B 28800C 28800D 28800J 9151261014 9167180820 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-54222

1HZ..HZJ7#..GEN

80D26R,GS YUASA

 1
28800-17111

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,FURUKAWA

 1
28800-17150

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31R,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800-17131

1HZ..HZJ76,78,79..GEN..CBU

105D31R,BATTERY-105D31R,FURUKAWA

 1
28800-54370

1HZ..HZJ76,78,79..LHD..GEN..CBU

95D31L,BATTERY-95D31R X 95D31L,PANASONIC

 1
28800-54232

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,YUASA

 1
28800-38100

1GRFE,1HZ..GRJ7#,HZJ7#..GEN

80D26R,PANASONIC

 1
28800-67123

1HZ..HZJ76,78,79..(HT,PIC)..GEN..CBU

105D31R,BATTERY-105D31R,GS YUASA

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60030

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800B - CABLE, BATTERY TO GROUND
82124-60160

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.2

 1
82124-60150

1HZ..HZJ7#

 1
82124-60150

1HZ..HZJ76,78,79..LHD..GEN..CBU

BATTERY-95D31R X 95D31L,NO.1

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60500

1HZ..HZJ7#..LHD

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GRFE,1HZ,1VDFTV..GRJ7#,HZJ7#,VDJ7#

 1
90982-06024

1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7#

 1
Common parts
91512-61014
91671-80820
94151-80801
