HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

FRONT HEATER

diagram 87104 87105 87107 87126 87126 87126 87130 87138 87150 87201D 87248E 87249E 9011906373 9011906373 9017906115 9017906115
Part # Description Qty Price
Common parts
90119-06373
90179-06115

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 88910 9011906373 9017906115
Part # Description Qty Price
Common parts
90119-06373
90179-06115

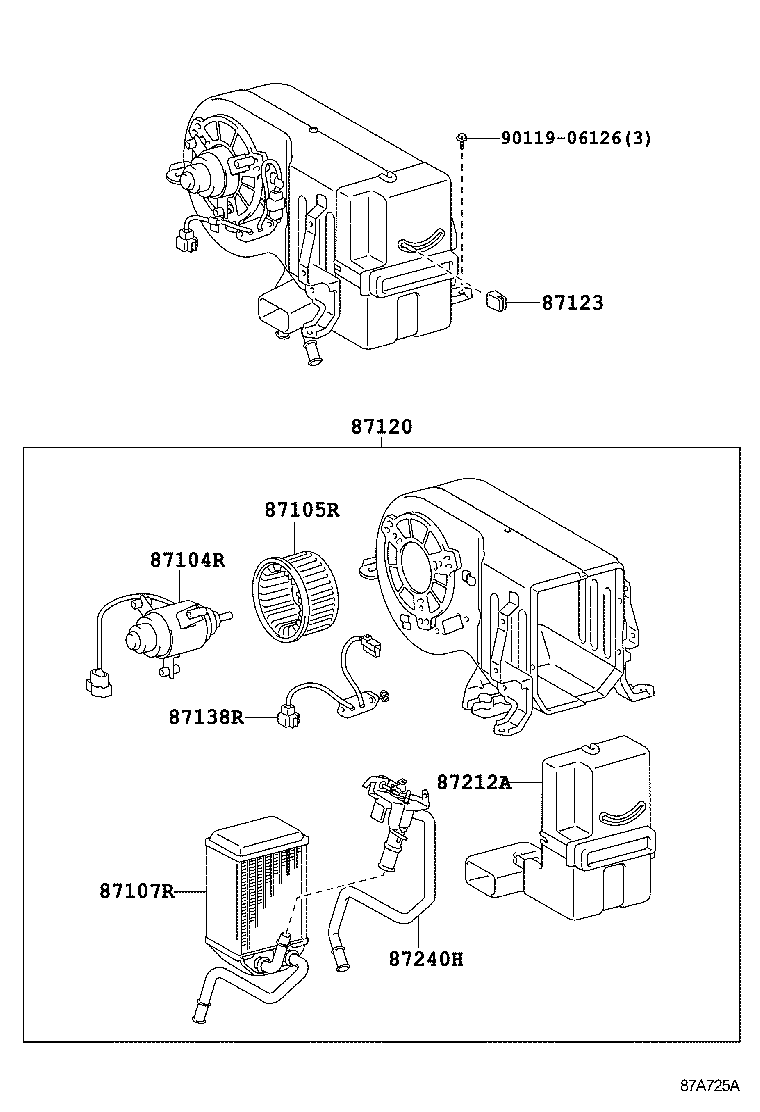

ILLUST NO. 3 OF 3(0701- )FZJ76,HZJ76,79..DCB,HT..GEN

Click highlighted areas on diagram

REAR HEATER

diagram 87104R 87105R 87107R 87120 87123 87138R 87212A 87240H 9011906126
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-90K03

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

HZJ76,78,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60330

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87120 - HEATER ASSY, REAR
87110-60200

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87123 - KNOB, HEATER
55905-12070

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-90K02

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87212A - DUCT, AIR, REAR NO.1
87212-90K00

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
87240H - VALVE ASSY, WATER UNIT
87240-60200

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)

 1
Common parts
90119-06126
