HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

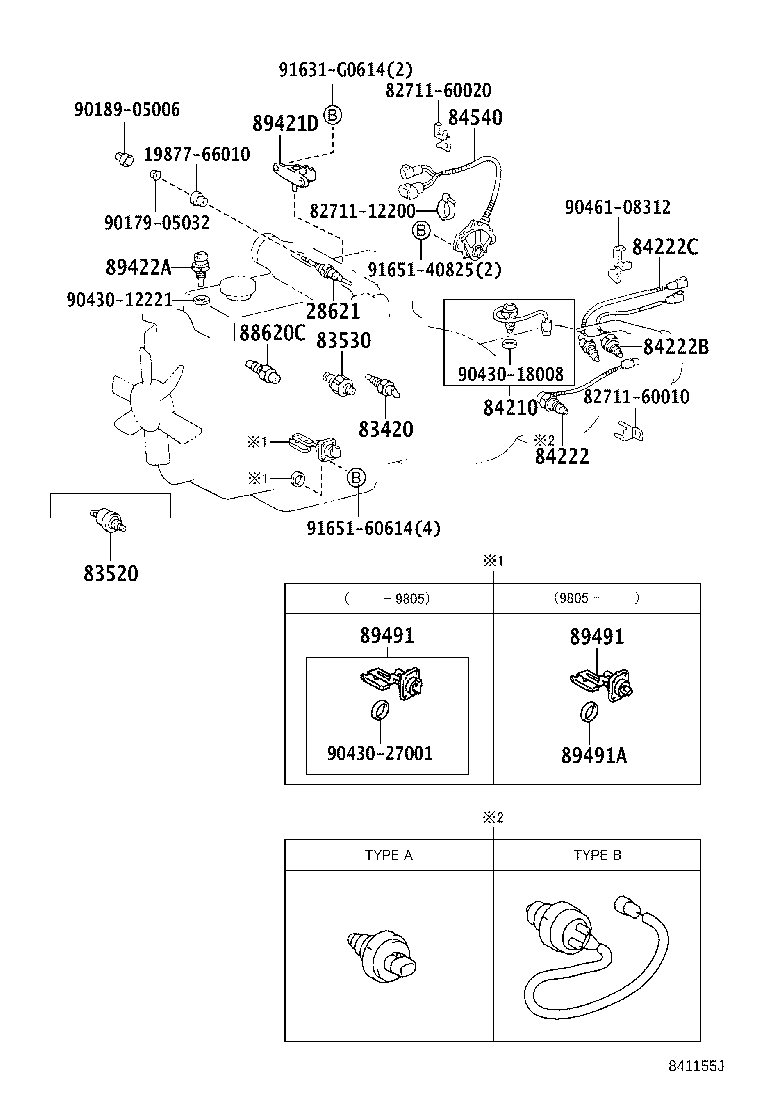

ILLUST NO. 1 OF 7(9001- )HJ75,HZJ7#,PZJ7#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 1987766010 28621 8271112200 8271160010 8271160020 83420 83520 83530 84210 84222 84222B 84222C 84540 88620C 89421D 89422A 89491 89491 89491A 9017905032 9018905006 9043012221 9043018008 9043027001 9046108312 91631G0614 9165140825 9165160614
Part # Description Qty Price
Common parts
19877-66010
82711-12200
82711-60010
82711-60020
90179-05032
90189-05006
90430-12221
90430-18008
90430-27001
90461-08312
91631-G0614
91651-40825
91651-60614

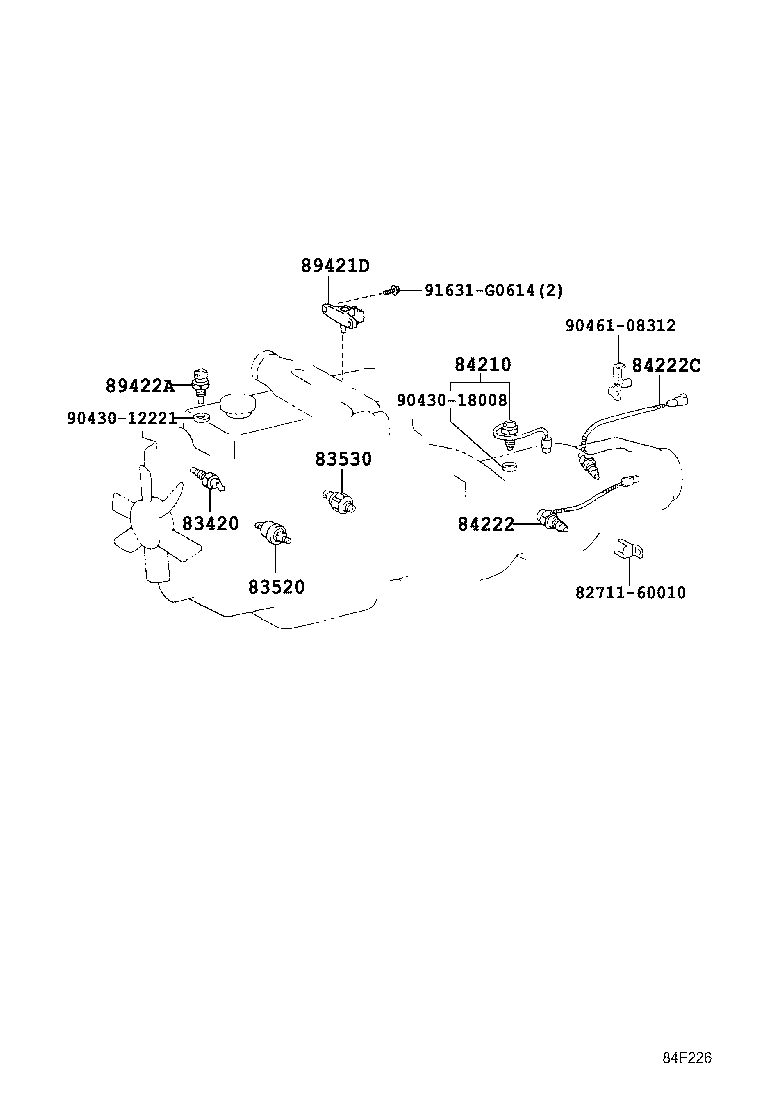

ILLUST NO. 1 OF 7(0701- )HZJ7#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271160010 83420 83520 83530 84210 84222 84222C 89421D 89422A 9043012221 9043018008 9046108312 91631G0614
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

HZJ7#

 1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-35031

HZJ79..DCB..GCC;HZJ76,78,79..GEN..CBU

SPEEDOMETER-KM/H

 1
83520-60050

VDJ76,79..DCB,HT

 1
83520-60051

VDJ76,79..DCB,HT

 1
83520-35032

HZJ79..DCB..GCC;HZJ76,78,79..GEN..CBU

SPEEDOMETER-KM/H

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030

HZJ7#..STD

 1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-60041

HZJ7#

REAR WHEEL BRAKE-DISC FS14 18V

 1
84222-60022

HZJ7#

 1
84222C - SWITCH, TRANSFER INDICATOR, NO.3
84222-60041

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
89422A - SENSOR, WATER TEMPERATURE
89422-20010

HZJ7#

 1
Common parts
82711-60010
90430-12221
90430-18008
90461-08312
91631-G0614

ILLUST NO. 7 OF 7(0701- )LHD

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

diagram 83320 83320 84222D 84222D 84233 84233 84234 84234 84235 84290 84550 84656A 84732A 84810 84810 84810 84820 84820 84930 84931B 85930 85940B 85980 86650H 9011906390 9011906390 9011906390 9011906390 9011906915 9011906915 9015960081 9015960081 9018906018 9018906043 9043018008 9043018008 9046713030 9155380814 9162161020 9162640818 9165140614 9167180612 9331314012 93319A4010 93319A4010 9354014012 9354014012
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-69575

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
83320-69505

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
83320 - GAGE ASSY, FUEL SENDER
83320-69575

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
83320-69505

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010

FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 2
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010

FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J05

GRJ71,76,79,HZJ71,76,79,VDJ76,79

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J05

GRJ71,76,79,HZJ71,76,79,VDJ76,79

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J05

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J05

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010

FZJ7#,GRJ7#,HZJ7#,VDJ7#

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

GRJ76,79,HZJ76,79,VDJ79..DCB,HT

POWER DOOR LOCK-WITH&POWER WINDOW-WITH

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

GRJ76,79,HZJ76,79,VDJ79..DCB,HT

POWER DOOR LOCK-WITH&POWER WINDOW-WITH

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

GRJ76,79,HZJ76,79,VDJ79..DCB,HT

POWER DOOR LOCK-WITH&POWER WINDOW-WITH

 3
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-35010

FZJ76,GRJ76,79,HZJ76,79..LHD..(DCB,HT)

POWER DOOR LOCK-WITH&POWER WINDOW-WITH

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-35010

FZJ76,GRJ76,79,HZJ76,79..LHD..(DCB,HT)

POWER DOOR LOCK-WITH&POWER WINDOW-WITH

 1
84931B - SWITCH, DOOR CONTROL
84931-60090

FZJ76,GRJ76,79,HZJ76,79..LHD..(DCB,HT)

POWER DOOR LOCK-WITH

 1
84931-60110

GRJ76,79,HZJ76,79..LHD..(DCB,HT)

POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-60130

GRJ79..LHD..DCB;GRJ79,HZJ79..RHD;HZJ79..LHD..DCB..GEN;GRJ76,HZJ76,VDJ79..DCB,HT;GRJ71,HZJ79..(DCB,HT,PIC)..GCC

POWER DOOR LOCK-WITH

 1
Common parts
90119-06390
90119-06915
90159-60081
90189-06018
90189-06043
90430-18008
90467-13030
91553-80814
91621-61020
91626-40818
91651-40614
91671-80612
93313-14012
93319-A4010
93540-14012
