HZJ79L-DKMRS (2012)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||
ILLUST NO. 5 OF 5(0701- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||

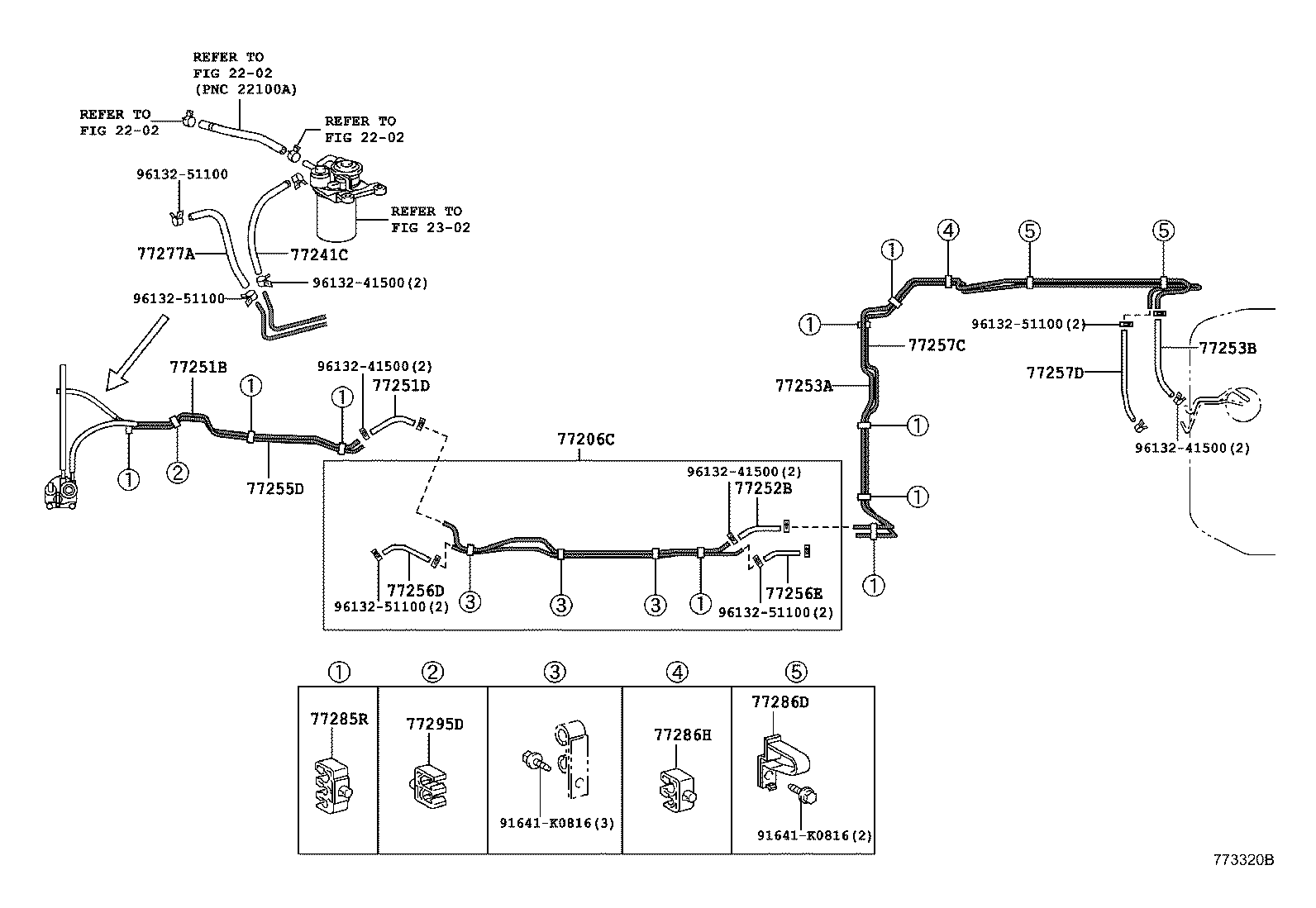

ILLUST NO. 3 OF 5(1208- )HZJ79..DCB
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60650 |
HZJ79..DCB |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A70 |
HZJ79..DCB |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95338-10016 |
HZJ79..DCB L=160 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95338-10016 |
HZJ79..DCB L=160 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60370 |
HZJ79..DCB |
1 | ||
| 77253-60400 |
HZJ79..DCB |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-60C50 |
HZJ79..DCB |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A40 |
HZJ79..DCB |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95337-06014 |
HZJ79..DCB |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95337-06014 |
HZJ79..DCB |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60330 |
HZJ79..DCB |
1 | ||
| 77257-60380 |
HZJ79..DCB |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77259-60C60 |
HZJ79..DCB |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60A70 |
HZJ79..DCB |
9 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60C00 |
HZJ76,79..DCB,HT |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60D30 |
HZJ79..DCB |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-25050 |
HZJ7# |
1 | ||
| Common parts | ||||
| 91641-K0816 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

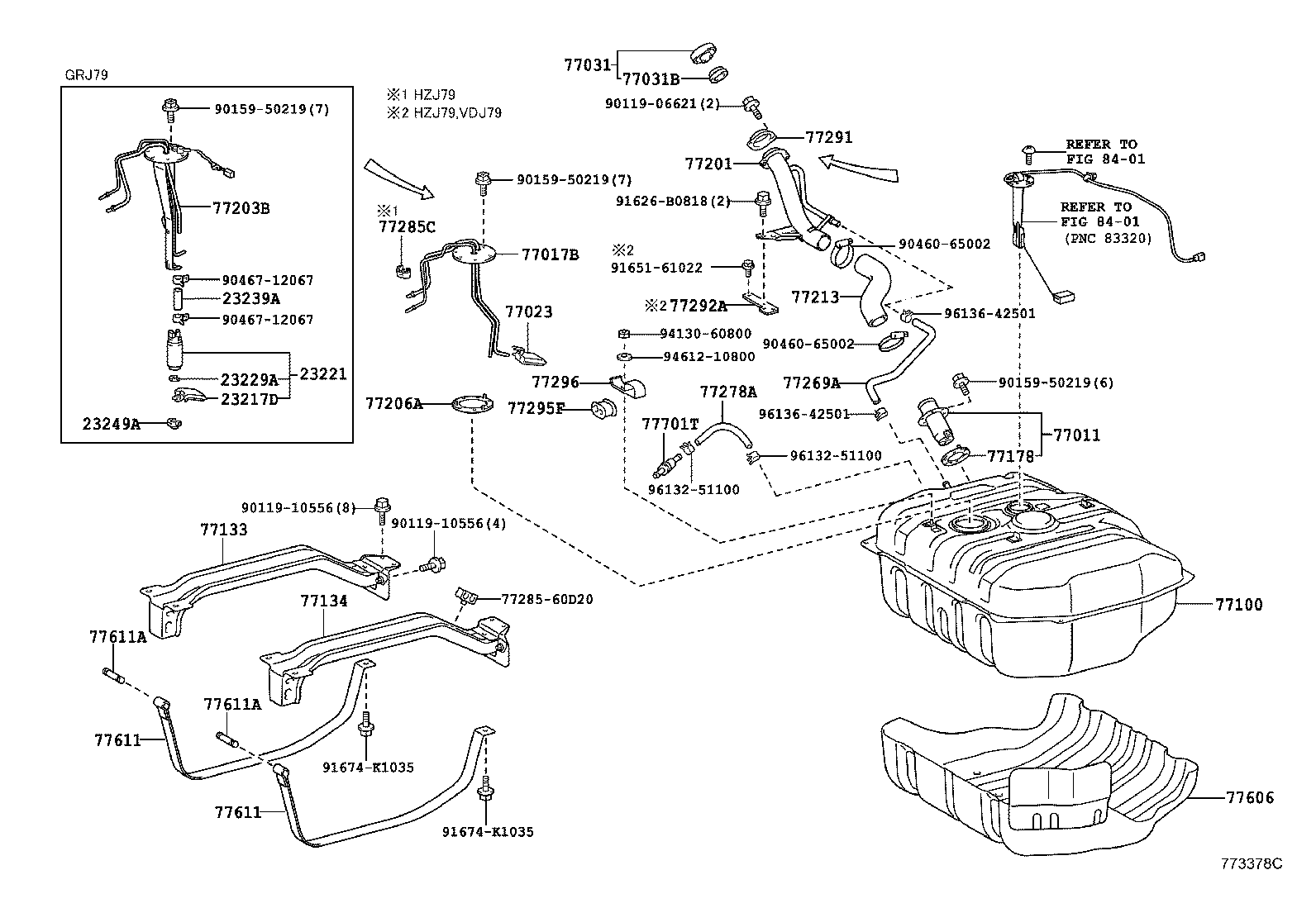

ILLUST NO. 1 OF 5(1208-1608)DCB
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60570 |
HZJ76,79..DCB,HT |
1 | ||
| 77017-60610 |
VDJ76,79..DCB,HT |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-26010 |
HZJ76,79..DCB,HT |
1 | ||
| 77023-60030 |
VDJ76,79..DCB,HT |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
HZJ79 |
1 | ||
| 77310-60100 |
HZJ79..DCB FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GRJ79,HZJ79 |
1 | ||
| 77316-12050 |
HZJ79..DCB FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60A80 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60160 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60050 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60C20 |
HZJ79,VDJ79..DCB |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60310 |
GRJ76,79..DCB,HT |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
GRJ71,76..LHD;GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60340 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77213-60341 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-60041 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77269-60040 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
HZJ76,79,VDJ76,79..DCB,HT *H,L=300 |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-30140 |
HZJ76,79..DCB,HT |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-60360 |
VDJ76,79..DCB,HT |
1 | ||
| 77295-60370 |
HZJ76,79..DCB,HT |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-60200 |
HZJ76,79,VDJ76,79..DCB,HT |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60160 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60350 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60350 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-60080 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-60080 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
HZJ78,79,VDJ78,79 |
1 | ||
| Common parts | ||||
| 77285-60D20 | ||||
| 90119-06621 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 91674-K1035 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
