HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1608)HZJ71,76,79..DCB,HT,SOT

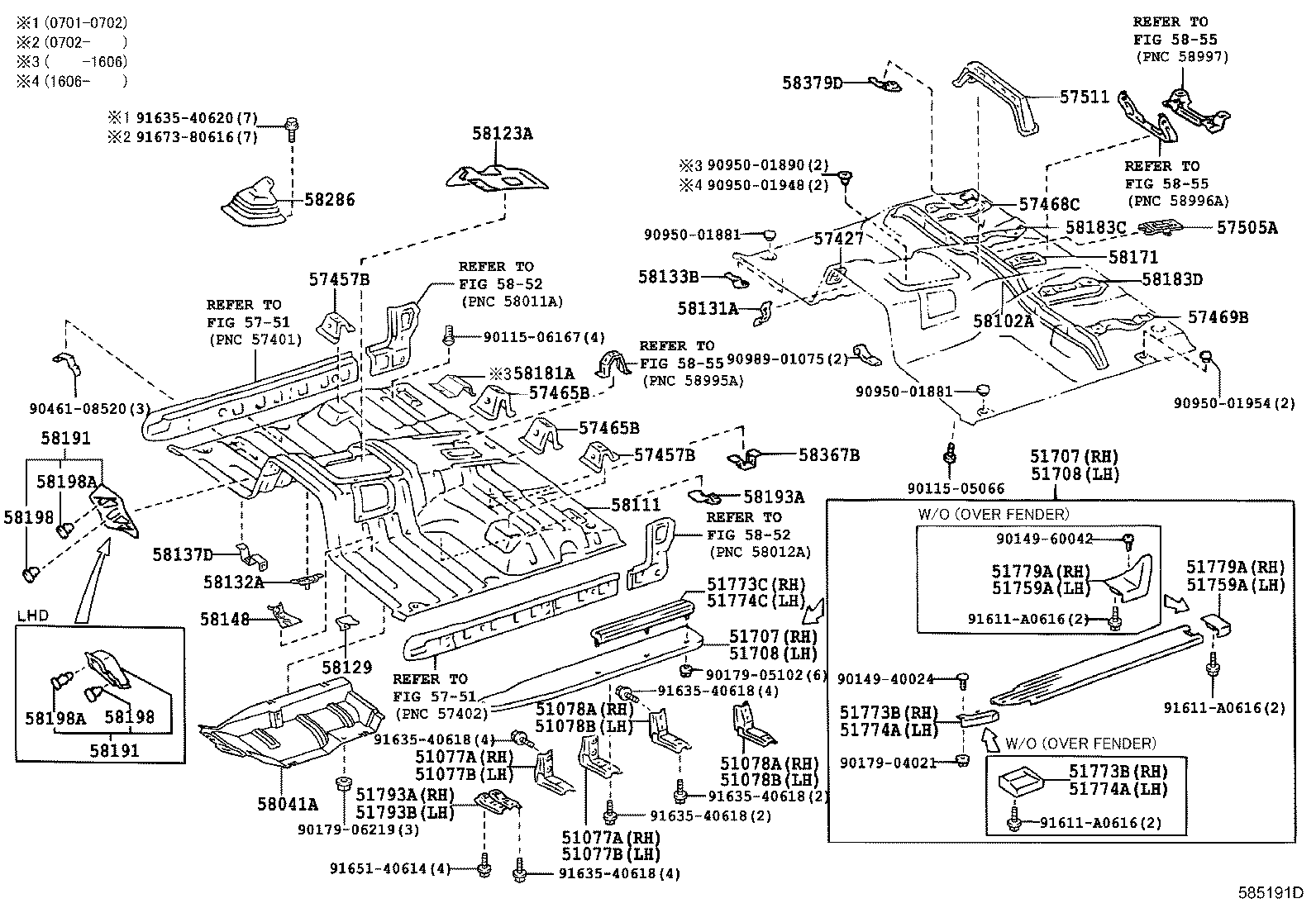

Click highlighted areas on diagram

diagram 51077A 51077A 51077B 51077B 51078A 51078A 51078B 51078B 51707 51707 51708 51708 51759A 51759A 51773B 51773B 51773C 51774A 51774A 51774C 51779A 51779A 51793A 51793B 57427 57457B 57457B 57465B 57465B 57468C 57469B 57505A 5751 5751 57511 58041A 58102A 58111 58123A 58129 58131A 58132A 58133B 58137D 58148 58171 58181A 58183C 58183D 58191 58191 58193A 58198 58198 58198A 58198A 58286 58367B 58379D 5852 5852 5855 5855 5855 9011505066 9011506167 9014940024 9014960042 9017904021 9017905102 9017906219 9046108520 9095001881 9095001881 9095001890 9095001948 9095001954 9098901075 91611A0616 91611A0616 91611A0616 9163540618 9163540618 9163540618 9163540618 9163540618 9163540620 9165140614 9167380616
Part # Description Qty Price
51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH
51783-60010

GRJ79,HZJ79,VDJ79..DCB

 3
51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH
51783-60010

GRJ79,HZJ79,VDJ79..DCB

 3
51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH
51783-60010

GRJ79,HZJ79,VDJ79..DCB

 3
51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH
51783-60010

GRJ79,HZJ79,VDJ79..DCB

 3
51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH
51078-90K00

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH
51078-90K00

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH
51078-90K00

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH
51078-90K00

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 2
51707 - STEP SUB-ASSY, RH
51770-60390

GRJ79,HZJ79,VDJ79..DCB

 1
51707 - STEP SUB-ASSY, RH
51770-60390

GRJ79,HZJ79,VDJ79..DCB

 1
51708 - STEP SUB-ASSY, LH
51780-60410

GRJ79,HZJ79,VDJ79..DCB

 1
51708 - STEP SUB-ASSY, LH
51780-60410

GRJ79,HZJ79,VDJ79..DCB

 1
51759A - COVER, SIDE DOOR STEP PLATE, REAR LH
51759-60140

GRJ79,HZJ79,VDJ79..DCB

 1
51759A - COVER, SIDE DOOR STEP PLATE, REAR LH
51759-60140

GRJ79,HZJ79,VDJ79..DCB

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51773-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51773-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51774-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51774-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
51779A - COVER, SIDE DOOR STEP PLATE, REAR RH
51779-60160

GRJ79,HZJ79,VDJ79..DCB

 1
51779A - COVER, SIDE DOOR STEP PLATE, REAR RH
51779-60160

GRJ79,HZJ79,VDJ79..DCB

 1
51793A - BRACKET, SIDE STEP, NO.1 RH
51793-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
51793B - BRACKET, SIDE STEP, NO.1, LH
51793-60030

GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT

 1
57457B - BRACKET, FRONT SEAT, FRONT
57457-90K00

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 2
57457B - BRACKET, FRONT SEAT, FRONT
57457-90K00

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 2
57465B - BRACKET, FRONT SEAT, INNER
57465-90K00

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 2
57465B - BRACKET, FRONT SEAT, INNER
57465-90K00

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 2
57468C - BRACKET, FRONT SEAT, OUTSIDE, RH
57468-60020

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 1
57469B - BRACKET, FRONT SEAT, OUTSIDE LH
57469-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 1
57511 - REINFORCEMENT, FRONT FLOOR, CENTER
57511-90K00

VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76

 1
58111 - PAN, FRONT FLOOR
58111-60E10

GRJ71,76,79,HZJ76,79..LHD..(DCB,HT,SOT)

 1
58111-60E90

HZJ76,79..LHD..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT

 1
58111-60E11

GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT)

 1
58111-60E91

HZJ76,79..LHD..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-60081

HZJ7#

 1
58013-60080

HZJ7#

 1
58129 - PLATE, FRONT FLOOR, NO.2
58129-60010

HZJ7#

 1
58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-60030

HZJ7#,VDJ7#

 1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-90A01

HZJ79;GRJ78..LHD;GRJ79,HZJ71,76,78..HT,PIC,SOT

 2
58148 - BRACKET, FRONT FLOOR HOUSING, REAR LH
58148-60020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH
58183-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 1
58183D - BRACKET, FRONT SEAT MOUNTING, INSIDE LH
58184-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

 1
58191 - FOOTREST, FRONT FLOOR
58190-60070

GRJ7#,HZJ7#..LHD

 1
58191 - FOOTREST, FRONT FLOOR
58190-60070

GRJ7#,HZJ7#..LHD

 1
58193A - BRACKET, FUEL PIPE
58193-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79..DCB,HT,SOT

 1
58198 - CLIP, FOOTREST
58198-60060

FZJ7#,GRJ7#,HZJ7#,VDJ7#

 1
58198 - CLIP, FOOTREST
58198-60060

FZJ7#,GRJ7#,HZJ7#,VDJ7#

 1
58198A - CLIP, FOOTREST, NO.1
58198-60050

FZJ7#,GRJ7#,HZJ7#..LHD

 1
58198A - CLIP, FOOTREST, NO.1
58198-60050

FZJ7#,GRJ7#,HZJ7#..LHD

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-60170

HZJ7#..LHD

 1
58379D - BRACKET, HEATER HOSE CLAMP
58379-90B00

HZJ76,79..(DCB,HT)..GEN

HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT

 1
Common parts
90115-05066
90115-06167
90149-40024
90149-60042
90179-04021
90179-05102
90179-06219
90461-08520
90950-01881
90950-01890
90950-01948
90950-01954
90989-01075
91611-A0616
91635-40618
91635-40620
91651-40614
91673-80616
Linked diagrams
5751
5852
5855
