HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )HZJ7#..GEN

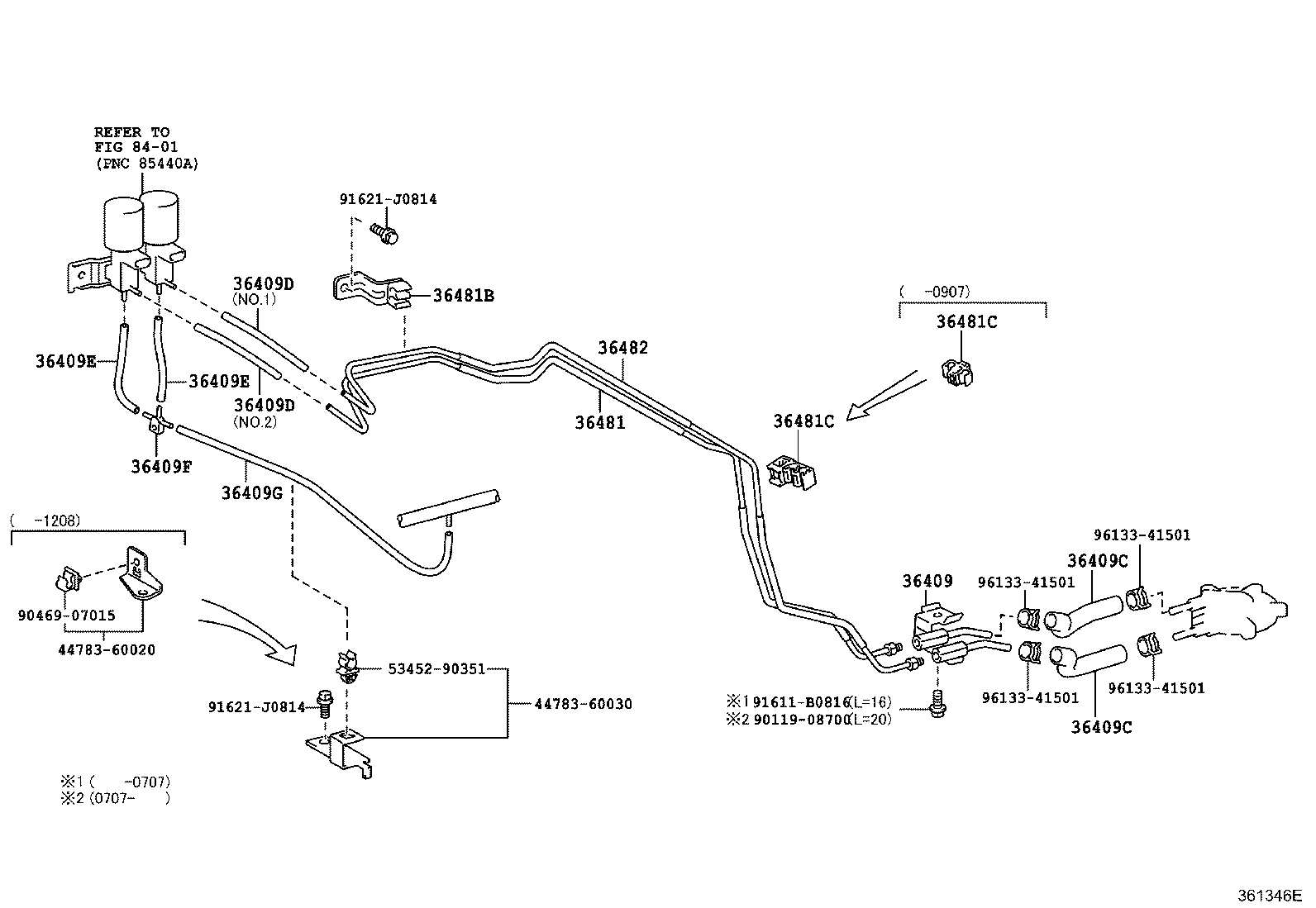

Click highlighted areas on diagram

diagram 36409 36409C 36409C 36409D 36409D 36409E 36409E 36409F 36409G 36481 36481B 36481C 36481C 36482 4478360020 4478360030 5345290351 8401 9011908700 9046907015 91611B0816 91621J0814 91621J0814 9613341501 9613341501 9613341501 9613341501
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60080

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95446-09210

HZJ7#..(DCB,HT,PIC)..GEN

L-210,TRANSFER-BF1B 2-4SELECTOR

 2
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95446-09210

HZJ7#..(DCB,HT,PIC)..GEN

L-210,TRANSFER-BF1B 2-4SELECTOR

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
44727-60020

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80*,TRANSFER-BF1B 2-4SELECTOR,NO.2

 1
44726-60020

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80*,TRANSFER-BF1B 2-4SELECTOR,NO.1

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
44727-60020

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80*,TRANSFER-BF1B 2-4SELECTOR,NO.2

 1
44726-60020

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80*,TRANSFER-BF1B 2-4SELECTOR,NO.1

 1
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80,MARK=#*,TRANSFER-BF1B 2-4SELECTOR

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ7#..(DCB,HT,PIC)..GEN

*H,L=80,MARK=#*,TRANSFER-BF1B 2-4SELECTOR

 2
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
44728-60020

HZJ7#..(DCB,HT,PIC)..GEN

*L,H=330*,TRANSFER-BF1B 2-4SELECTOR

 1
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-60120

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1
47371-60180

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60120

HZJ7#..(DCB,HT,PIC)..GEN

TRANSFER-BF1B 2-4SELECTOR

 1
Common parts
44783-60020
44783-60030
53452-90351
90119-08700
90469-07015
91611-B0816
91621-J0814
96133-41501
Linked diagrams
8401
