HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )HZJ7#..LHD

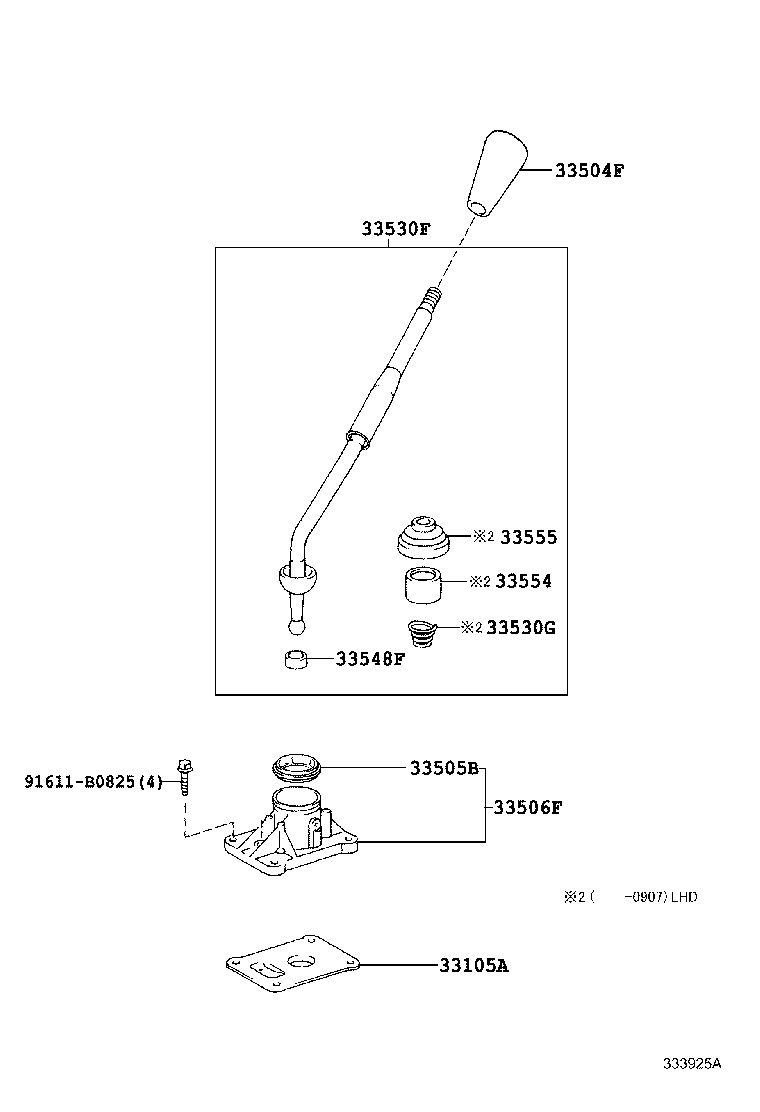

Click highlighted areas on diagram

diagram 33105A 33504F 33505B 33506F 33530F 33530G 33548F 33554 33555 91611B0825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-60040

HZJ7#

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-24010C1

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

BLACK,TRIM1#,4#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

HZJ7#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35110

HZJ7#

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

HZJ7#

 1
Common parts
91611-B0825
