HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

Click highlighted areas on diagram

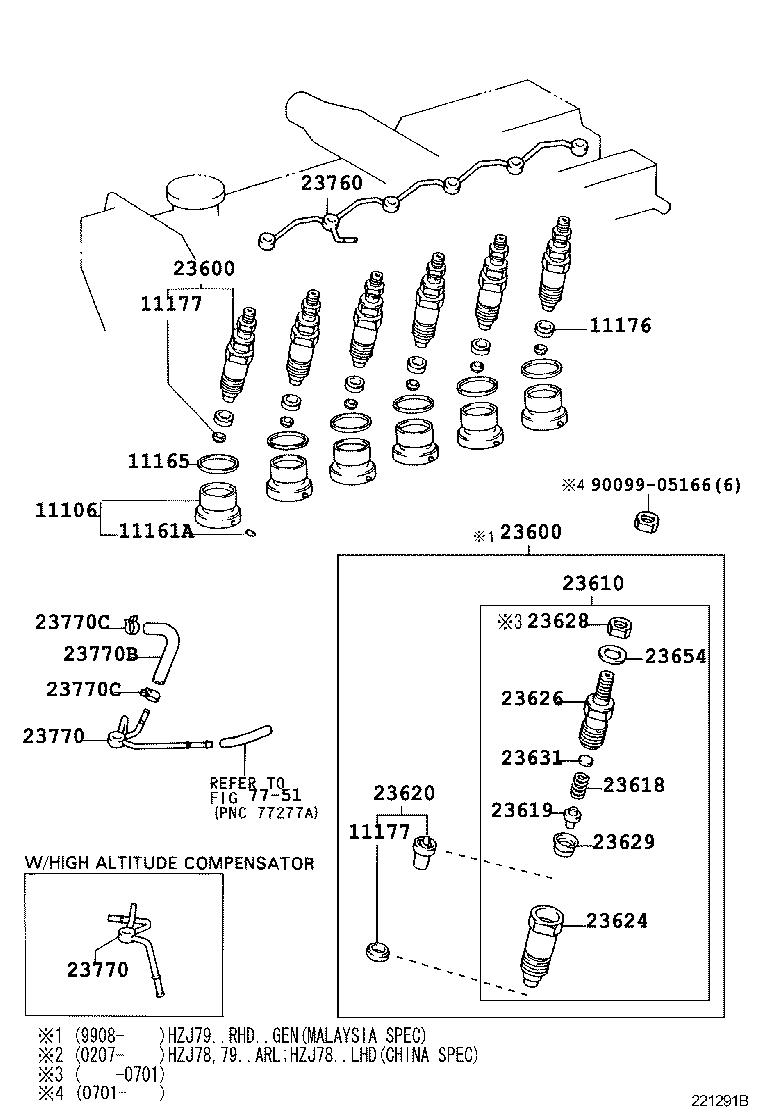

diagram 11106 11161A 11165 11176 11177 11177 23600 23600 23610 23618 23619 23620 23624 23626 23628 23629 23631 23654 23760 23770 23770 23770B 23770C 23770C 7751 9009905166
Part # Description Qty Price
Common parts
90099-05166
Linked diagrams
7751

(0701- )1HZ

Click highlighted areas on diagram

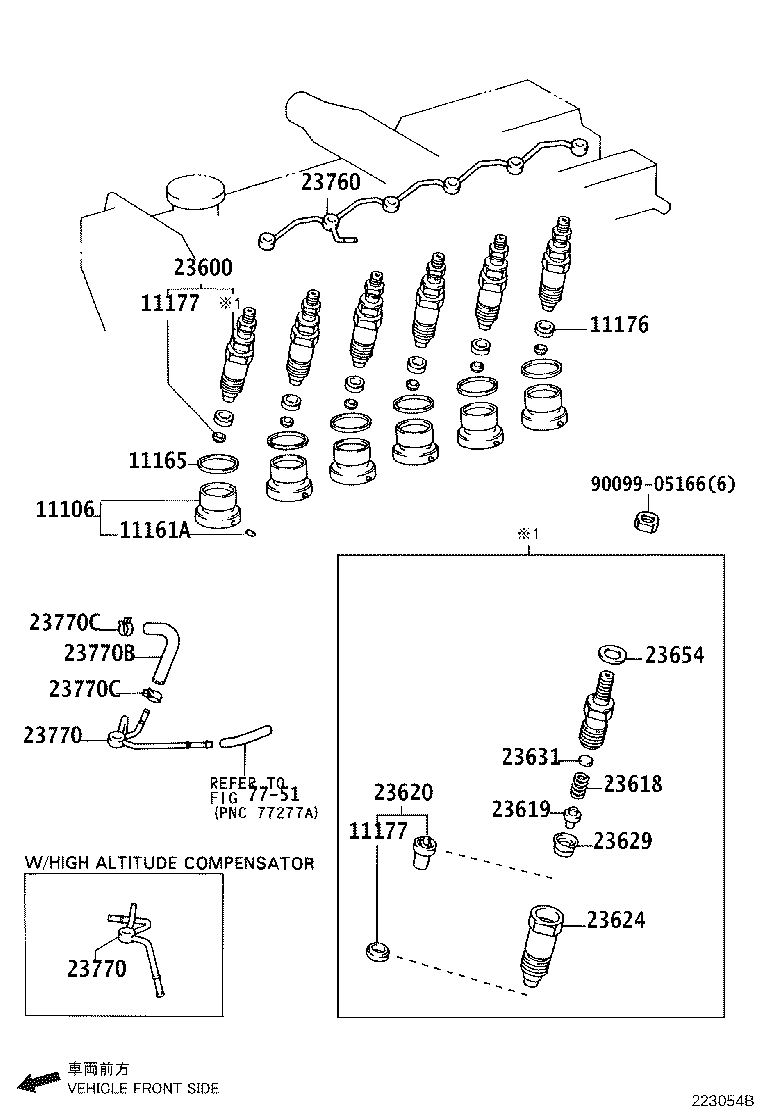

diagram 11106 11161A 11165 11176 11177 11177 23600 23618 23619 23620 23624 23629 23631 23654 23760 23770 23770 23770B 23770C 23770C 7751 9009905166
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-17040

1HZ..HZJ7#

 1
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

1HZ..HZJ7#

 1
11165 - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

1HZ..HZJ7#

T=0.03

 12
11176 - SEAT, INJECTION NOZZLE
11176-64010

1HZ..HZJ7#

 6
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

1HZ..HZJ7#

 6
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

1HZ..HZJ7#

 6
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-19075

1HZ..HZJ7#

 6
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-17090

1HZ..HZJ7#

 6
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

1HZ..HZJ7#

 6
23620 - NOZZLE ASSY
23620-19105

1HZ..HZJ7#

 6
23624 - NUT, NOZZLE RETAINING
23624-64080

1HZ..HZJ7#

 6
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

1HZ..HZJ7#

 6
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64011

1HZ..HZJ7#

T=0.925

 6
23631-64010

1HZ..HZJ7#

T=0.900

 6
23631-64018

1HZ..HZJ7#

T=1.100

 6
23631-64015

1HZ..HZJ7#

T=1.025

 6
23631-64016

1HZ..HZJ7#

T=1.050

 6
23631-64019

1HZ..HZJ7#

T=1.125

 6
23632-64012

1HZ..HZJ7#

T=1.200

 6
23631-64017

1HZ..HZJ7#

T=1.075

 6
23631-64013

1HZ..HZJ7#

T=0.975

 6
23632-64015

1HZ..HZJ7#

T=1.275

 6
23631-64012

1HZ..HZJ7#

T=0.950

 6
23632-64011

1HZ..HZJ7#

T=1.175

 6
23632-64019

1HZ..HZJ7#

T=1.375

 6
23632-64014

1HZ..HZJ7#

T=1.250

 6
23632-64013

1HZ..HZJ7#

T=1.225

 6
23632-64018

1HZ..HZJ7#

T=1.350

 6
23632-64017

1HZ..HZJ7#

T=1.325

 6
23632-64016

1HZ..HZJ7#

T=1.300

 6
23633-64011

1HZ..HZJ7#

T=1.425

 6
23632-64010

1HZ..HZJ7#

T=1.150

 6
23633-64010

1HZ..HZJ7#

T=1.400

 6
23633-64013

1HZ..HZJ7#

T=1.475

 6
23631-64014

1HZ..HZJ7#

T=1.000

 6
23633-64015

1HZ..HZJ7#

T=1.525

 6
23633-64019

1HZ..HZJ7#

T=1.625

 6
23633-64016

1HZ..HZJ7#

T=1.550

 6
23633-64018

1HZ..HZJ7#

T=1.600

 6
23634-64011

1HZ..HZJ7#

T=1.675

 6
23634-64016

1HZ..HZJ7#

T=1.800

 6
23633-64014

1HZ..HZJ7#

T=1.500

 6
23633-64017

1HZ..HZJ7#

T=1.575

 6
23634-64017

1HZ..HZJ7#

T=1.825

 6
23634-64010

1HZ..HZJ7#

T=1.650

 6
23633-64012

1HZ..HZJ7#

T=1.450

 6
23634-64019

1HZ..HZJ7#

T=1.875

 6
23634-64015

1HZ..HZJ7#

T=1.775

 6
23634-64013

1HZ..HZJ7#

T=1.725

 6
23635-64012

1HZ..HZJ7#

T=1.950

 6
23634-64012

1HZ..HZJ7#

T=1.700

 6
23634-64018

1HZ..HZJ7#

T=1.850

 6
23634-64014

1HZ..HZJ7#

T=1.750

 6
23635-64010

1HZ..HZJ7#

T=1.900

 6
23635-64011

1HZ..HZJ7#

T=1.925

 6
23654 - WASHER(FOR RING PACKING)
23654-64010

1HZ..HZJ7#

 6
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-17010

1HZ..HZJ7#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23762-17011

1HZ..HZJ7#

 1
23762-17051

1HZ..HZJ7#

HIGH ALTITUDE COMPENSATOR-WITH

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23762-17011

1HZ..HZJ7#

 1
23762-17051

1HZ..HZJ7#

HIGH ALTITUDE COMPENSATOR-WITH

 1
23770B - HOSE, FUEL
95333-04020

1HZ..HZJ7#

*H,L=140,HIGH ALTITUDE COMPENSATOR-WITH

 1
95333-04020

1HZ..HZJ7#

*H,L=140

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90467-10149

1HZ..HZJ7#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90467-10149

1HZ..HZJ7#

 2
