HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1HZ..HZJ76,78,79..LHD..GEN..CBU

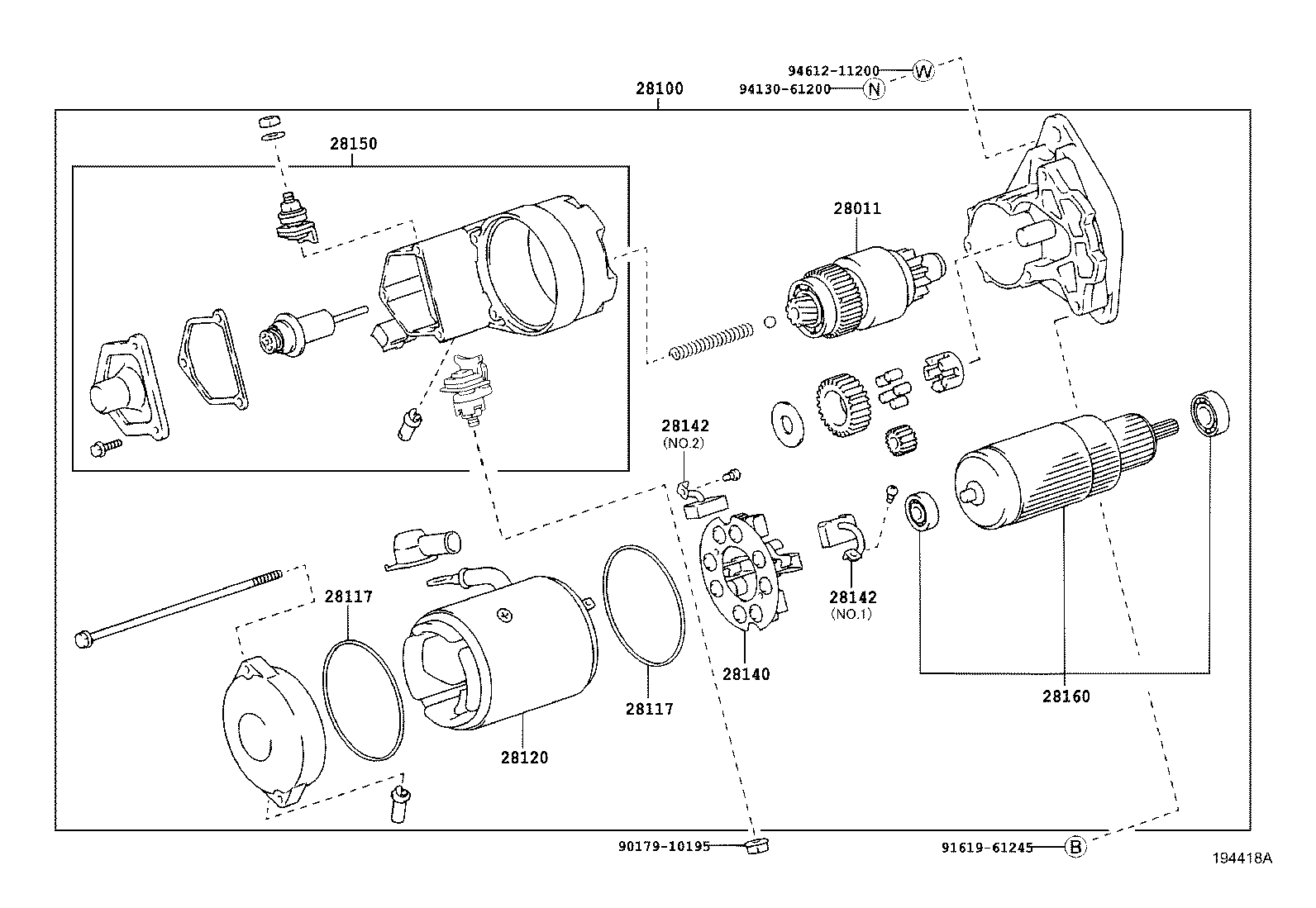

Click highlighted areas on diagram

12V 3.0KW

diagram 28011 28100 28117 28117 28120 28140 28142 28142 28150 28160 9017910195 9161961245 9413061200 9461211200
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-17090

1HZ..HZJ7#

 1
28011-54480

1HZ..HZJ76,78,79..LHD..GEN..CBU

COLD AREA SPEC.

 1
28120 - YOKE ASSY, STARTER
28120-17070

1HZ..HZJ76,78,79..LHD..GEN..CBU

COLD AREA SPEC.

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

1HZ..HZJ7#

 1
28140-67090

1HZ..HZJ76,78,79..LHD..GEN..CBU

COLD AREA SPEC.

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-17080

1HZ..HZJ76,78,79..LHD..GEN..CBU

COLD AREA SPEC.

 1
28150-17090

1HZ..HZJ7#

 1
28160 - ARMATURE ASSY, STARTER
28160-54140

1HZ..HZJ7#

 1
28160-67090

1HZ..HZJ76,78,79..LHD..GEN..CBU

COLD AREA SPEC.

 1
Common parts
90179-10195
91619-61245
94130-61200
94612-11200
