HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )1HZ..HZJ79..DCB

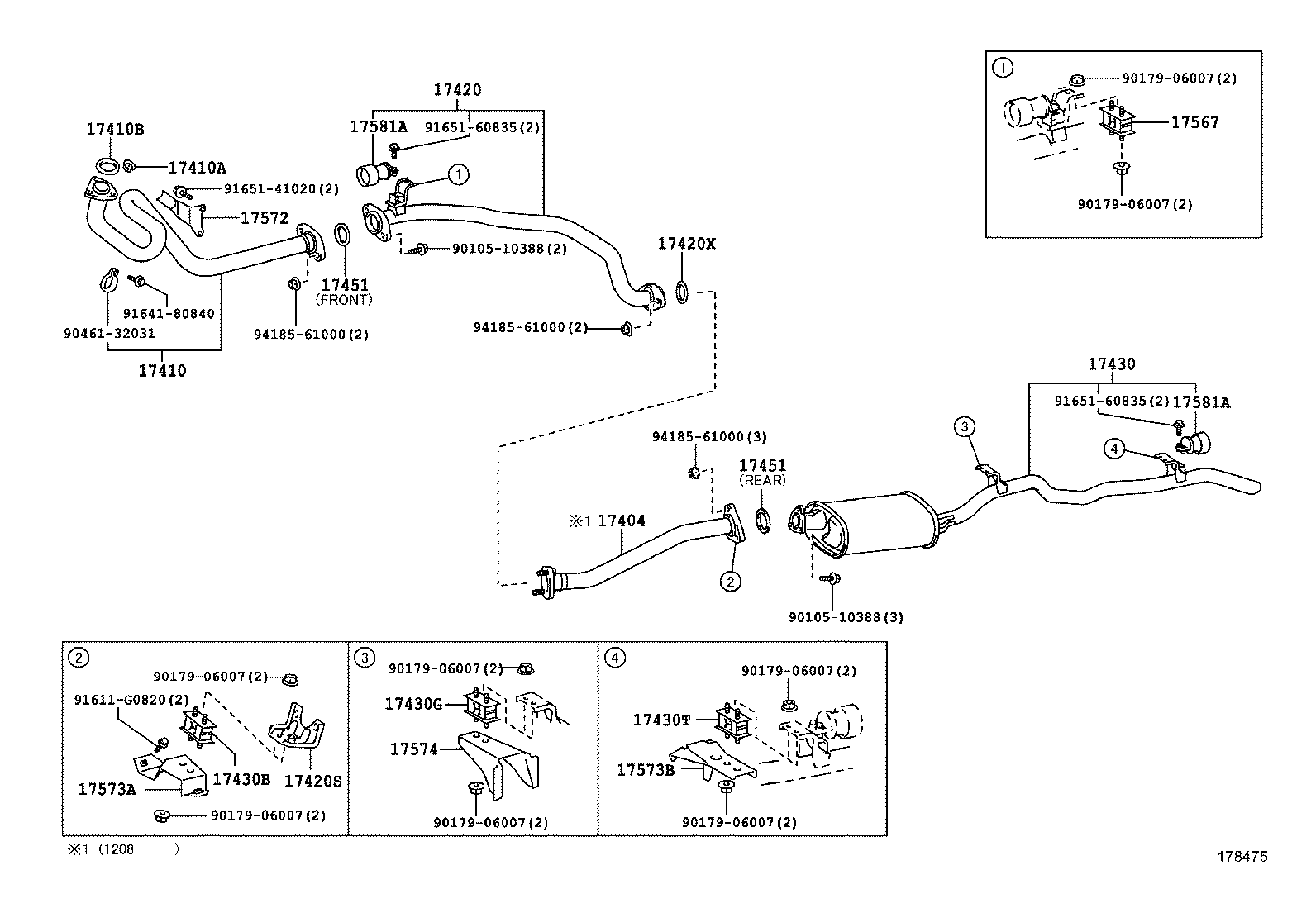

Click highlighted areas on diagram

diagram 17404 17410 17410A 17410B 17420 17420S 17420X 17430 17430B 17430G 17430T 17451 17451 17567 17572 17573A 17573B 17574 17581A 17581A 9010510388 9010510388 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9046132031 91611G0820 9164180840 9165141020 9165160835 9165160835 9418561000 9418561000 9418561000
Part # Description Qty Price
17404 - PIPE SUB-ASSY, EXHAUST FORKED
17404-17050

1HZ..HZJ79..DCB

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17240

1HZ..HZJ7#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1HZ..HZJ79..DCB

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

1HZ..HZJ7#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17220

1HZ..HZJ76,79..DCB,HT

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17576-61030

1GRFE,1HZ,1VDFTV..GRJ79,HZJ78,79,VDJ78,79

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06076

1HZ..HZJ71,76,79..DCB,HT,SOT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17073

1HZ..HZJ78,79

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-17020

1HZ..HZJ78,79

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ78,79

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1GRFE,1HZ..GRJ79,HZJ79..DCB

FRONT

 1
90917-06049

1GRFE,1HZ..GRJ79,HZJ79..DCB

REAR

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1GRFE,1HZ..GRJ79,HZJ79..DCB

FRONT

 1
90917-06049

1GRFE,1HZ..GRJ79,HZJ79..DCB

REAR

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-17030

1HZ..HZJ7#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58081

1HZ,1VDFTV..HZJ78,79,VDJ78,79

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-60021

1HZ,1VDFTV..HZJ76,78,79,VDJ7#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-60040

1GRFE..GRJ78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ78,79,VDJ78,79

 1
17581A - DAMPER, EXHAUST PIPE
17581-17010

1HZ..HZJ7#

CENTER PIPE

 1
17581-17020

1HZ..HZJ76,78,79

TAIL PIPE

 1
17581A - DAMPER, EXHAUST PIPE
17581-17010

1HZ..HZJ7#

CENTER PIPE

 1
17581-17020

1HZ..HZJ76,78,79

TAIL PIPE

 1
Common parts
90105-10388
90179-06007
90461-32031
91611-G0820
91641-80840
91651-41020
91651-60835
94185-61000
