HZJ79L-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

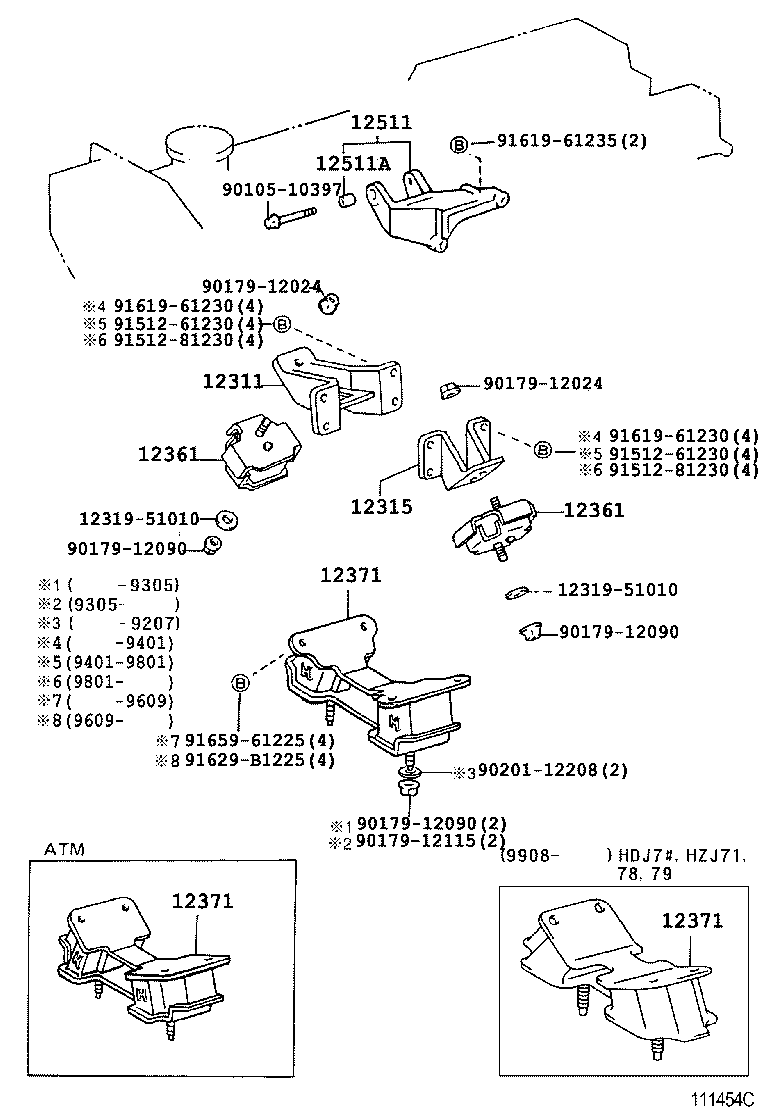

(9001- )1H#

Click highlighted areas on diagram

diagram 12311 12315 1231951010 1231951010 12361 12361 12371 12371 12371 12511 12511A 9010510397 9017912024 9017912024 9017912090 9017912090 9017912090 9017912115 9020112208 9151261230 9151261230 9151281230 9151281230 9161961230 9161961230 9161961235 91629B1225 9165961225
Part # Description Qty Price
Common parts
12319-51010
90105-10397
90179-12024
90179-12090
90179-12115
90201-12208
91512-61230
91512-81230
91619-61230
91619-61235
91629-B1225
91659-61225

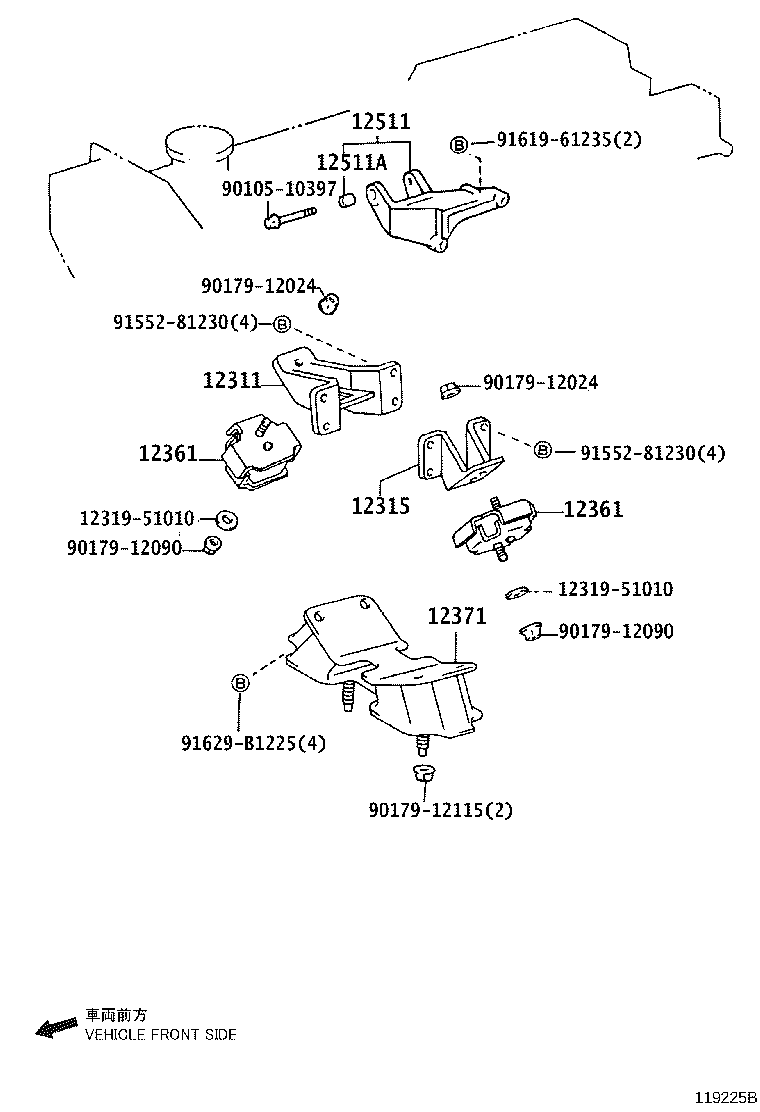

(0701- )1HZ

Click highlighted areas on diagram

diagram 12311 12315 1231951010 1231951010 12361 12361 12371 12511 12511A 9010510397 9017912024 9017912024 9017912090 9017912090 9017912115 9155281230 9155281230 9161961235 91629B1225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-17021

1HZ..HZJ7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-17021

1HZ..HZJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17091

1HZ..HZJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17091

1HZ..HZJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17080

1HZ..HZJ7#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-17013

1HZ..HZJ7#

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10155

1HZ..HZJ7#

 1
Common parts
12319-51010
90105-10397
90179-12024
90179-12090
90179-12115
91552-81230
91619-61235
91629-B1225
