HZJ75RP-MRN (1991)

Toyota Land Cruiser

Production Aug 1991 - Nov 1999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

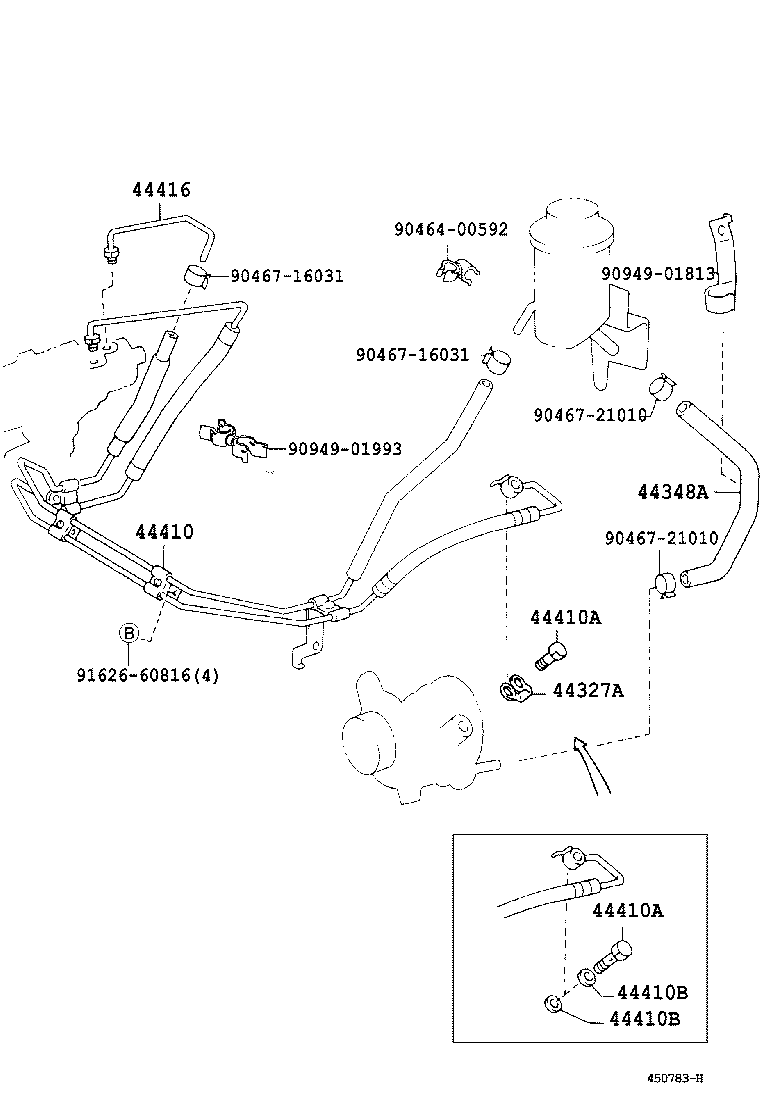

(9201- )FZJ71..GCC ; (9201- )FZJ70,71,75,78,79..RHD

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44410A 44410A 44410B 44410B 44416 9046400592 9046716031 9046716031 9046721010 9046721010 9094901813 9094901993 9162660816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120

HZJ75..SA

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60280

HZJ75..SA

 1
44410-60281

HZJ75..SA

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16027

FZJ75,HZJ75..SA

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16027

FZJ75,HZJ75..SA

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

FZJ75,HZJ75..SA

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

FZJ75,HZJ75..SA

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60230

HZJ75..RHD;HZJ70..RHD..GEN

 1
44416-60231

HZJ75..SA

 1
Common parts
90464-00592
90467-16031
90467-21010
90949-01813
90949-01993
91626-60816

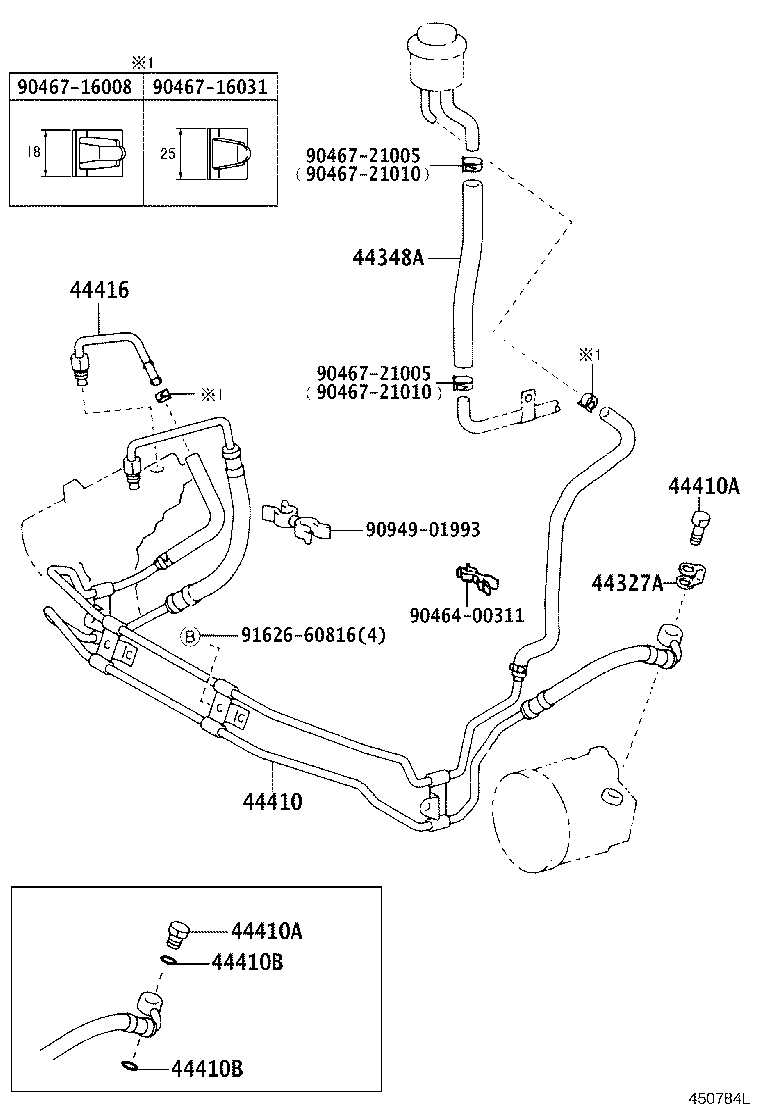

(9001-9501)HZJ7#,PZJ7#..RHD ; (9501-0701)HZJ7#..RHD

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44410A 44410A 44410B 44410B 44416 9046400311 9046716008 9046716031 9046721005 9046721005 9046721010 9046721010 9094901993 9162660816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120

HZJ75..SA

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60280

HZJ75..SA

 1
44410-60281

HZJ75..SA

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16027

FZJ75,HZJ75..SA

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16027

FZJ75,HZJ75..SA

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

FZJ75,HZJ75..SA

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

FZJ75,HZJ75..SA

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60230

HZJ75..RHD;HZJ70..RHD..GEN

 1
44416-60231

HZJ75..SA

 1
Common parts
90464-00311
90467-16008
90467-16031
90467-21005
90467-21010
90949-01993
91626-60816
