HZJ75RP-KR3 (1990)
Toyota Land Cruiser
(9001-9108)HJ75 ; (9001-9208)FJ70,75,HZJ75..4F
H41

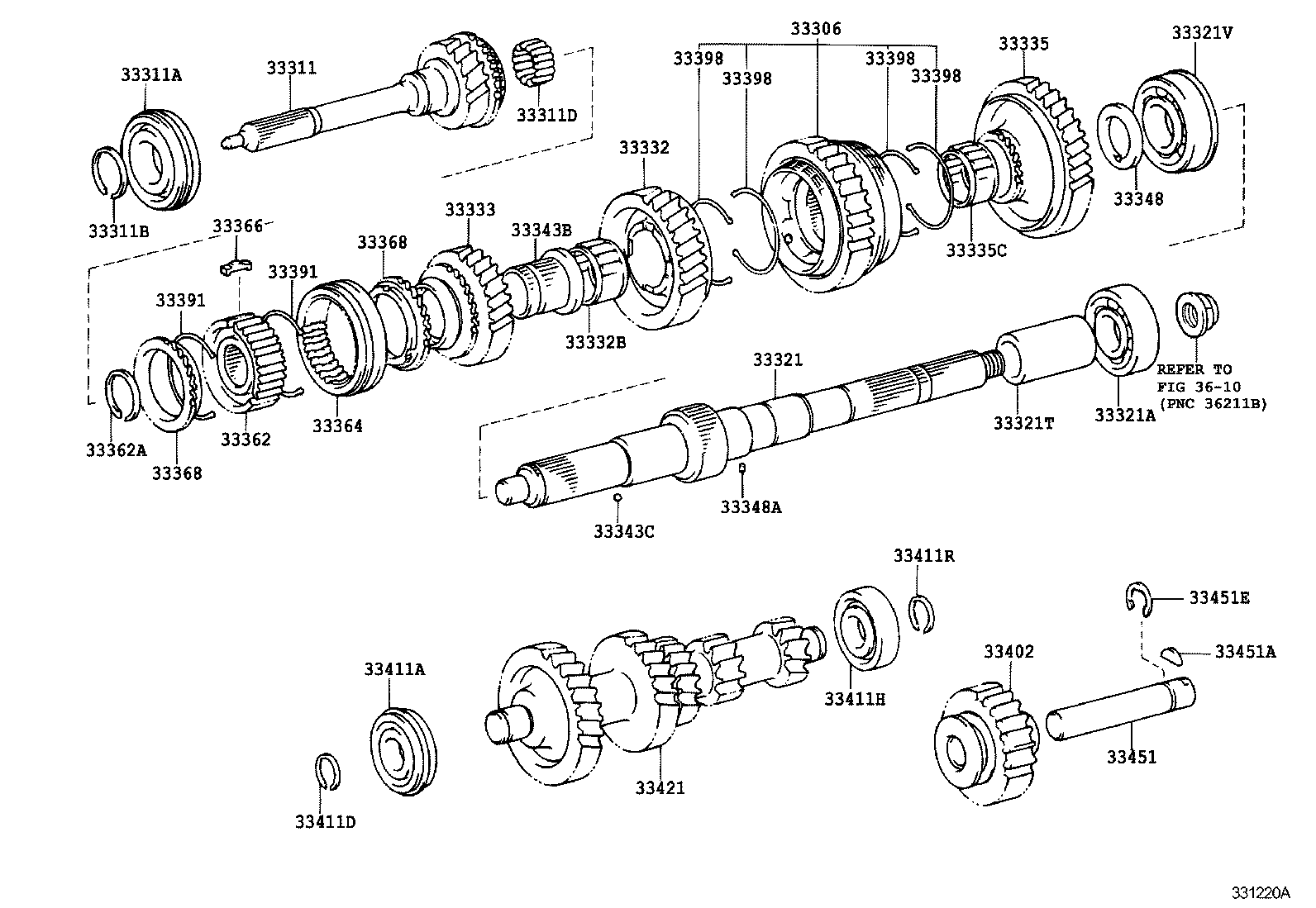

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 | ||||
| 33306-60010 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-60170 |
HZJ7#..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40037 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-36016 |
FJ7#,HJ75,HZJ7#..MTM T=3.20-3.31 |
1 | ||
| 90520-36015 |
FJ7#,HJ75,HZJ7#..MTM T=3.31-3.42 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
FJ7#,HJ75,HZJ7#..MTM |
17 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60081 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321-60082 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-35022 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-39001 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 97154-06308 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44065 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-60030 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33343B - BUSH, 3RD GEAR | ||||
| 33343-36020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33343C - BALL (FOR 3RD GEAR BUSH) | ||||
| 90360-06004 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-36250 |
FJ7#,HJ75,HZJ7#..MTM T=2.40-2.45 |
1 | ||
| 90520-36252 |
FJ7#,HJ75,HZJ7#..MTM T=2.50-2.55 |
1 | ||
| 90520-36253 |
FJ7#,HJ75,HZJ7#..MTM T=2.55-2.60 |
1 | ||
| 90520-36255 |
FJ7#,HJ75,HZJ7#..MTM T=2.65-2.70 |
1 | ||
| 90520-36251 |
FJ7#,HJ75,HZJ7#..MTM T=2.45-2.50 |
1 | ||
| 90520-36254 |
FJ7#,HJ75,HZJ7#..MTM T=2.60-2.65 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36070 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
FJ7#,HJ75,HZJ7#..MTM |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
FJ7#,HJ75,HZJ7#..MTM |
4 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
FJ7#,HJ75,HZJ7#..MTM |
4 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
FJ7#,HJ75,HZJ7#..MTM |
4 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
FJ7#,HJ75,HZJ7#..MTM |
4 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06332 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-30216 |
FJ7#,HJ75,HZJ7#..MTM T=2.15,MARK 2 |
1 | ||
| 90520-30218 |
FJ7#,HJ75,HZJ7#..MTM T=2.25,MARK 4 |
1 | ||
| 90520-30214 |
FJ7#,HJ75,HZJ7#..MTM T=2.05,MARK 0 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-32010 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-29099 |
HJ75;FJ70,75,HZJ75..4F T=2.1 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-60060 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36022 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03015 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-27001 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| Linked diagrams | ||||
| 3610 | ||||
(0701-1005)HZJ7#
R151,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-60170 |
HZJ7#..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40037 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-36016 |
FJ7#,HJ75,HZJ7#..MTM T=3.20-3.31 |
1 | ||
| 90520-36015 |
FJ7#,HJ75,HZJ7#..MTM T=3.31-3.42 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
FJ7#,HJ75,HZJ7#..MTM |
17 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60081 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321-60082 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-35022 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-39001 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 97154-06308 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44065 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-60030 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36070 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
FJ7#,HJ75,HZJ7#..MTM |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
FJ7#,HJ75,HZJ7#..MTM |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-60020 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06332 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-30216 |
FJ7#,HJ75,HZJ7#..MTM T=2.15,MARK 2 |
1 | ||
| 90520-30218 |
FJ7#,HJ75,HZJ7#..MTM T=2.25,MARK 4 |
1 | ||
| 90520-30214 |
FJ7#,HJ75,HZJ7#..MTM T=2.05,MARK 0 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-60060 |
HJ75;FJ70,75,HZJ75..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36022 |
FJ7#,HJ75,HZJ7#..MTM |
1 | ||
| Common parts | ||||
| 90105-06258 | ||||
| 91511-J0820 | ||||
