HZJ75RP-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 1HZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)FJ70,75,HZJ75..4F

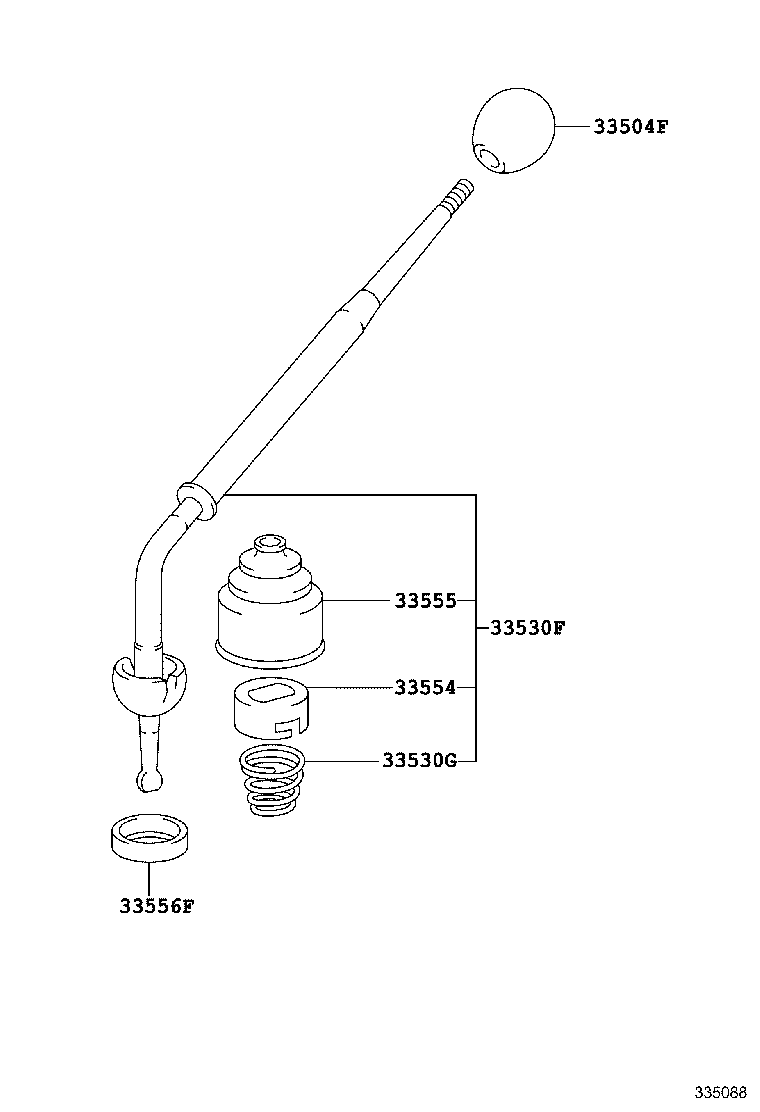

Click highlighted areas on diagram

diagram 33504F 33530F 33530G 33554 33555 33556F
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60040E0

FJ70,75,HZJ75..4F

SABLE,TRIM4#

 1
33504-60040B0

FJ70,75,HZJ75..4F

BLUISH GRAY,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60230

HZJ75..PIC..4F

 1
33530-60070

FJ70,75..RHD..4F

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-29001

FJ7#,HJ75,HZJ7#..MTM

 1
33554 - CAP, SHIFT LEVER
33554-60021

FJ7#,FZJ7#,HJ75,HZJ7#..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-55011

FJ7#,HJ75,HZJ7#..MTM

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33505-60020

FJ7#,HJ75,HZJ7#..MTM

 1
