HZJ75LV-KR (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001-9208)FJ70,73..ARL,GCC ; (9208-9908)FZJ70,73..GCC ; (9208-0701)FZJ75,HZJ75,PZJ

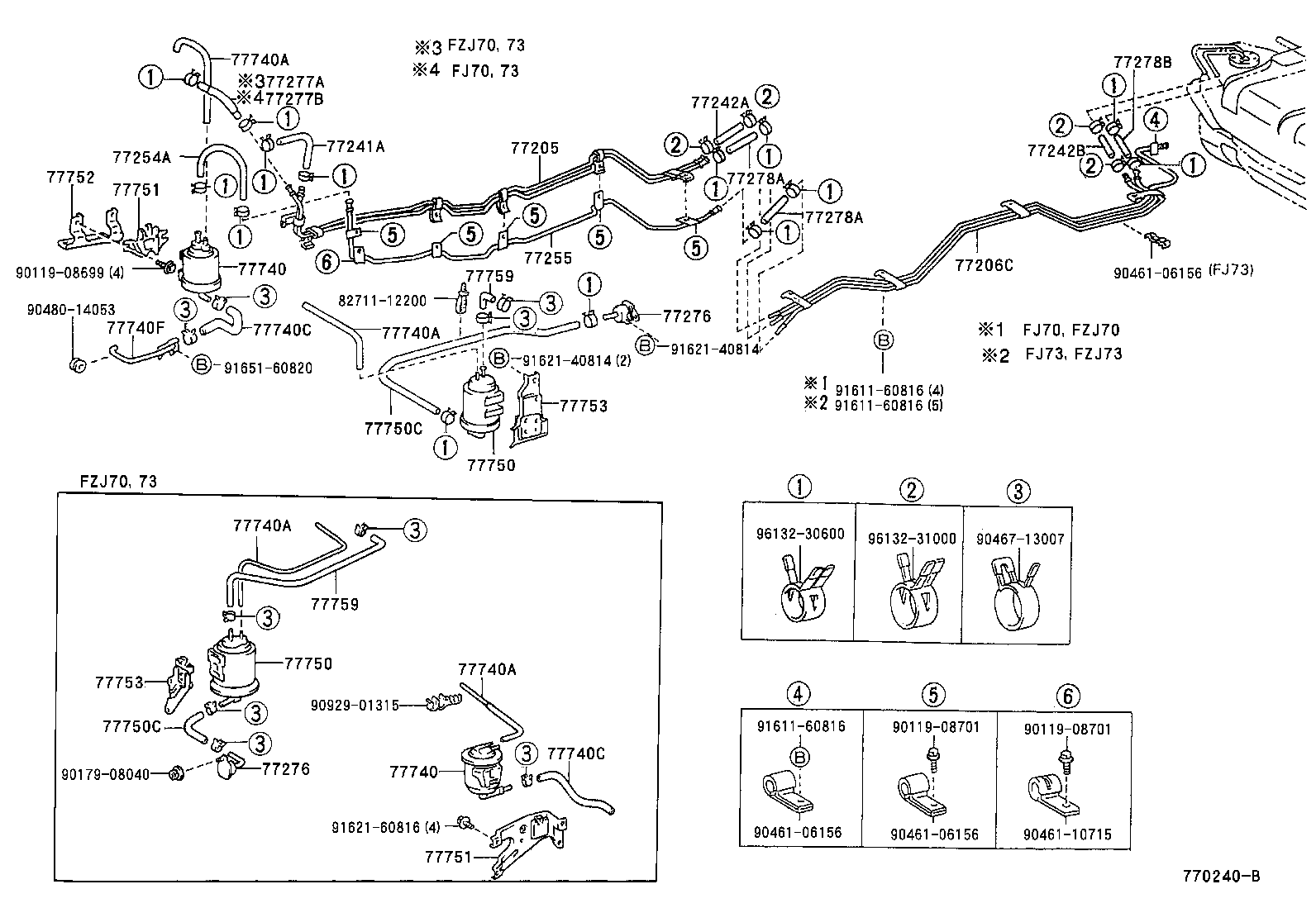

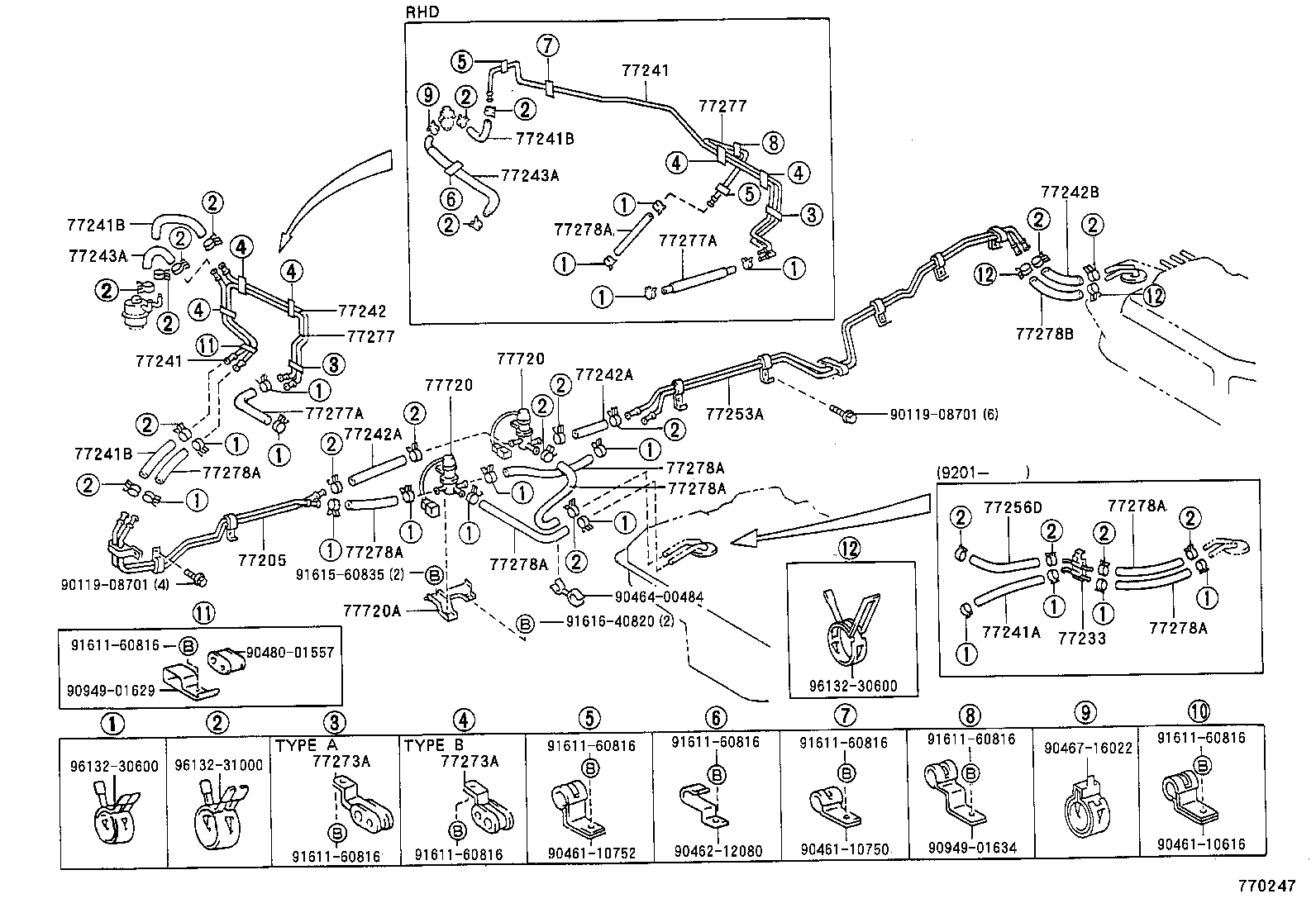

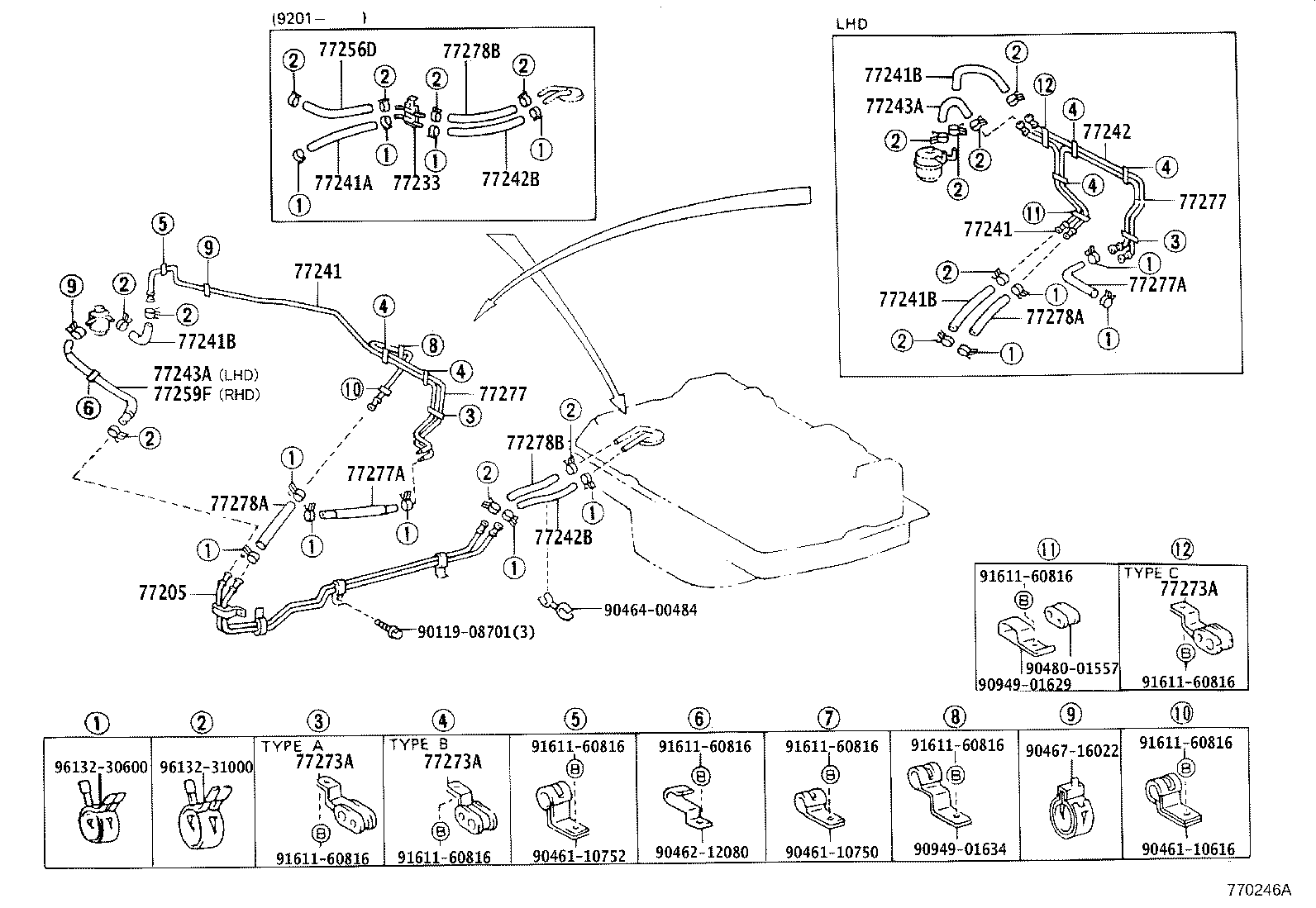

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60480 |
HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
1 | ||
| 77205-60470 |
HZJ75,PZJ75 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
2 | ||
| 95332-10020 |
HZJ7#,PZJ7#..ARL,GCC,GEN *H,L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
1 | ||
| 95333-06040 |
HZJ75,PZJ75 *H,L=360 |
1 | ||
| 95332-10018 |
HZJ75,PZJ75 *H,L=180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75,PZJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75,FZJ75,HZJ75,PZJ75..(ARL,GCC,GEN)..(CBR,DSL) *H,L=220 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08699 | ||||
| 90119-08701 | ||||
| 90179-08040 | ||||
| 90461-06156 | ||||
| 90461-10715 | ||||
| 90467-13007 | ||||
| 90480-14053 | ||||
| 90929-01315 | ||||
| 91611-60816 | ||||
| 91621-40814 | ||||
| 91621-60816 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ75,HJ75,HZJ75,PZJ75 ; (9201-9208)FJ75

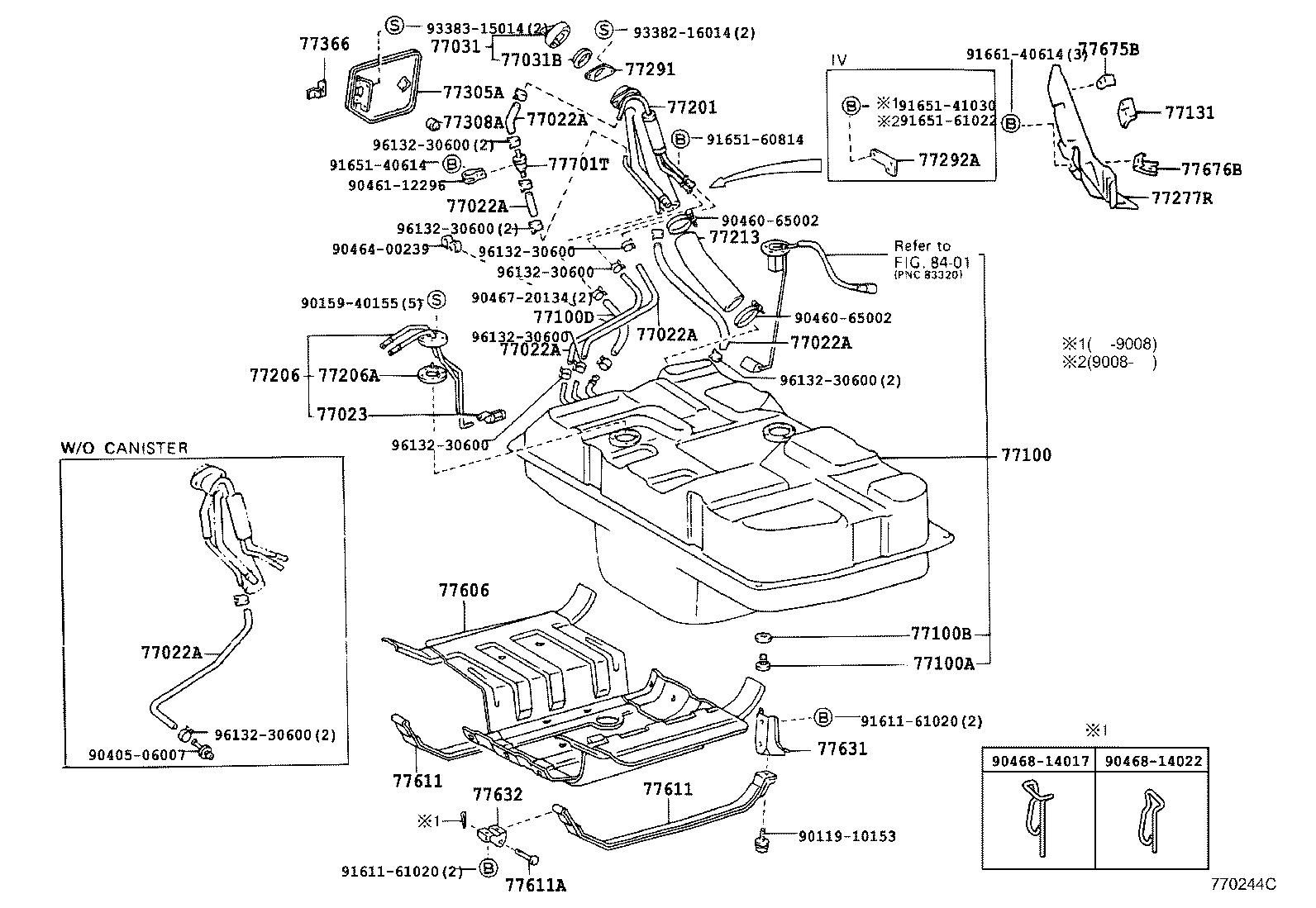

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ75,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ75,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HZJ7#,LJ7#,PZJ7#..HT,SOT |
1 | ||
| 77310-35061 |
HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
FJ75,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77316-12050 |
FJ75..HT..(GCC,GEN);FJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
FJ75,HJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100-60240 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77100-60909 |
FJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90341-20004 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN L=200,MAIN TANK |
1 | ||
| 90445-22002 |
FJ75,HJ75,HZJ75,PZJ75 L=200 |
1 | ||
| 90445-22024 |
FJ75,HZJ75,PZJ75..HT L=220,SUB TANK |
1 | ||
| 90445-22002 |
FJ75,HZJ75,PZJ75..HT L=200,MAIN TANK |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60170 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) |
1 | ||
| 77201-60290 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) SUB TANK |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60210 |
HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77240-60200 |
HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77240-60200 |
HZJ75,PZJ75 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60050 |
FJ75,HZJ75,PZJ75..HT MAIN TANK |
1 | ||
| 77213-60061 |
FJ75,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77213-60050 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77305-90K01 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT |
1 | ||
| 77305-90K01 |
FZJ75..ARL..CBU;FJ75,FZJ75,HDJ78,HZJ75,PZJ75..HT..(CBR,DSL,TDEFI) MAIN TANK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
4 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60041 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60041 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60050 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..STD..CBU;FJ75,HDJ7#,HZJ73,79,LJ70,PZJ70,73;FZJ70,73,75,HZJ78..(ARL,GEN,SA)..(CBR,DSL);FJ70,73,FZJ71,74,78,79,HJ75,HZJ71,LJ72,77,79,PZJ75,RJ7#..GEN,SA |
1 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90159-40155 | ||||
| 90405-06007 | ||||
| 90460-65002 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-41030 | ||||
| 91651-60814 | ||||
| 91651-61022 | ||||
| 91661-40614 | ||||
| 93382-16014 | ||||
| 93383-15014 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=80 |
2 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06010 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=80,W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06030 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=220,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;HZJ75,PZJ75..HT *H,L=150,W(FUEL SUB TANK) |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
HZJ75;FJ75,HJ75,PZJ75..GEN,SA *H,L=550 |
1 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 95333-06060 |
FJ75,HJ75,HZJ75,PZJ75 *H,L=420 |
2 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12106 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12104 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 90447-12105 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
FJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT *H,L=180,W(FUEL SUB TANK) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ75,PZJ7# |
1 | ||
| 77023-36010 |
HZJ75,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ75,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ75,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ75,PZJ7# |
1 | ||
| 77023-36010 |
HZJ75,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ75,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ75,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HZJ7#,LJ7#,PZJ7#..HT,SOT |
1 | ||
| 77310-35061 |
HZJ7#,LJ7#,PZJ7#..HT,SOT |
1 | ||
| 77310-35061 |
HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77310-35061 |
HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
FJ75,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
FJ75,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77316-12050 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77316-12050 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77316-12050 |
FJ75..HT..(GCC,GEN);FJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77316-12050 |
FJ75..HT..(GCC,GEN);FJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
FJ75,HJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100-60300 |
FJ75,HJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100-60240 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77100-60240 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77100-60909 |
FJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100-60909 |
FJ75,HZJ75,PZJ75 MAIN TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90341-20004 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90341-20004 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-20007 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN L=200,MAIN TANK |
1 | ||
| 90445-22002 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN L=200,MAIN TANK |
1 | ||
| 90445-22002 |
FJ75,HJ75,HZJ75,PZJ75 L=200 |
1 | ||
| 90445-22002 |
FJ75,HJ75,HZJ75,PZJ75 L=200 |
1 | ||
| 90445-22024 |
FJ75,HZJ75,PZJ75..HT L=220,SUB TANK |
1 | ||
| 90445-22024 |
FJ75,HZJ75,PZJ75..HT L=220,SUB TANK |
1 | ||
| 90445-22002 |
FJ75,HZJ75,PZJ75..HT L=200,MAIN TANK |
1 | ||
| 90445-22002 |
FJ75,HZJ75,PZJ75..HT L=200,MAIN TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60030 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77133-60030 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60020 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77134-60020 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60170 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) |
1 | ||
| 77201-60170 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) |
1 | ||
| 77201-60290 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) SUB TANK |
1 | ||
| 77201-60290 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60170 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) |
1 | ||
| 77201-60170 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) |
1 | ||
| 77201-60290 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) SUB TANK |
1 | ||
| 77201-60290 |
HZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN) SUB TANK |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60210 |
HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77240-60210 |
HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77240-60200 |
HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77240-60200 |
HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77240-60200 |
HZJ75,PZJ75 |
1 | ||
| 77240-60200 |
HZJ75,PZJ75 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60050 |
FJ75,HZJ75,PZJ75..HT MAIN TANK |
1 | ||
| 77213-60050 |
FJ75,HZJ75,PZJ75..HT MAIN TANK |
1 | ||
| 77213-60061 |
FJ75,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77213-60061 |
FJ75,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77213-60050 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 77213-60050 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 77222A - TUBE, FUEL VAPOR LIQUID SEPARATOR, NO.1 | ||||
| 77222-60150 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
1 | ||
| 77222-60150 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77227-60140 |
HZJ75..ARL,GCC,GEN;FJ75,FZJ75,PZJ75..GEN |
1 | ||
| 77227-60140 |
HZJ75..ARL,GCC,GEN;FJ75,FZJ75,PZJ75..GEN |
1 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
2 | ||
| 77271-60060 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
2 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
2 | ||
| 77271-60060 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-90K00 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77290-90K00 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77293-60030 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77293-90K00 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77305-90K00 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77305-90K01 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT |
1 | ||
| 77305-90K01 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT |
1 | ||
| 77305-90K01 |
FZJ75..ARL..CBU;FJ75,FZJ75,HDJ78,HZJ75,PZJ75..HT..(CBR,DSL,TDEFI) MAIN TANK |
1 | ||
| 77305-90K01 |
FZJ75..ARL..CBU;FJ75,FZJ75,HDJ78,HZJ75,PZJ75..HT..(CBR,DSL,TDEFI) MAIN TANK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
4 | ||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
4 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77391-32010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60041 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77606-60041 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
1 | ||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60041 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77606-60041 |
FJ75,HJ75,HZJ75,PZJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60101 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN MAIN TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77601-60131 |
FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 77701V - VALVE, CHECK (FOR SUB-FUEL TANK) | ||||
| 90917-10020 |
FJ75,PZJ75..GEN;FZJ75,HZJ75..ARL,GCC,GEN |
1 | ||
| 90917-10020 |
FJ75,PZJ75..GEN;FZJ75,HZJ75..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06621 | ||||
| 90119-08701 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90119-10556 | ||||
| 90159-40155 | ||||
| 90460-65002 | ||||
| 90461-06174 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91665-40616 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9001-0701)HZJ75,PZJ75
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60480 |
HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
1 | ||
| 77205-60470 |
HZJ75,PZJ75 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77253-60160 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77253-60160 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77253-60170 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
1 | ||
| 95333-06040 |
HZJ75,PZJ75 *H,L=360 |
1 | ||
| 95332-10018 |
HZJ75,PZJ75 *H,L=180 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
1 | ||
| 95333-06040 |
HZJ75,PZJ75 *H,L=360 |
1 | ||
| 95332-10018 |
HZJ75,PZJ75 *H,L=180 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=260 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=260 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60040 |
HZJ7#,PZJ7# TYPE A |
1 | ||
| 77273-60050 |
HZJ75,PZJ70,75..LHD TYPE B |
3 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60040 |
HZJ7#,PZJ7# TYPE A |
1 | ||
| 77273-60050 |
HZJ75,PZJ70,75..LHD TYPE B |
3 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60040 |
HZJ7#,PZJ7# TYPE A |
1 | ||
| 77273-60050 |
HZJ75,PZJ70,75..LHD TYPE B |
3 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-60051 |
HZJ7#,PZJ7# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-60051 |
HZJ7#,PZJ7# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75,PZJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75,FZJ75,HZJ75,PZJ75..(ARL,GCC,GEN)..(CBR,DSL) *H,L=220 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75,PZJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75,FZJ75,HZJ75,PZJ75..(ARL,GCC,GEN)..(CBR,DSL) *H,L=220 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-10616 | ||||
| 90461-10750 | ||||
| 90461-10752 | ||||
| 90462-12080 | ||||
| 90464-00484 | ||||
| 90467-16022 | ||||
| 90480-01557 | ||||
| 90949-01629 | ||||
| 90949-01634 | ||||
| 91611-60816 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
ILLUST NO. 2 OF 3(9001-0701)HZJ75,PZJ75
FUEL TUBE W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60480 |
HZJ75,PZJ75..ARL,GCC,GEN W(FUEL SUB TANK) |
1 | ||
| 77205-60470 |
HZJ75,PZJ75 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77253-60160 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77253-60160 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10020 |
HZJ75,PZJ70,75..LHD *H,L=200 |
1 | ||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=280 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77253-60170 |
HZJ75,PZJ70,75..LHD |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
2 | ||
| 95332-10020 |
HZJ7#,PZJ7#..ARL,GCC,GEN *H,L=200 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
2 | ||
| 95332-10020 |
HZJ7#,PZJ7#..ARL,GCC,GEN *H,L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10020 |
HZJ75,PZJ75 *H,L=200 |
1 | ||
| 95333-06040 |
HZJ75,PZJ75 *H,L=360 |
1 | ||
| 95332-10018 |
HZJ75,PZJ75 *H,L=180 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=260 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ75,PZJ70,75..LHD *H,L=260 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77205-60560 |
HZJ75,PZJ75..ARL,GCC,GEN |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60040 |
HZJ7#,PZJ7# TYPE A |
1 | ||
| 77273-60050 |
HZJ75,PZJ70,75..LHD TYPE B |
3 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60040 |
HZJ7#,PZJ7# TYPE A |
1 | ||
| 77273-60050 |
HZJ75,PZJ70,75..LHD TYPE B |
3 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-60051 |
HZJ7#,PZJ7# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-60051 |
HZJ7#,PZJ7# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 95333-06020 |
HZJ75,PZJ75..ARL,GCC,GEN *H,L=200,W(FUEL SUB TANK) |
2 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10030 |
HZJ75,PZJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75,FZJ75,HZJ75,PZJ75..(ARL,GCC,GEN)..(CBR,DSL) *H,L=220 |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN RETURN |
1 | ||
| 77710-60040 |
HZJ75,PZJ75..ARL,GCC,GEN MAIN |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN RETURN |
1 | ||
| 77710-60040 |
HZJ75,PZJ75..ARL,GCC,GEN MAIN |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77716-60010 |
FJ75,HZJ75,PZJ75..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-10616 | ||||
| 90461-10750 | ||||
| 90461-10752 | ||||
| 90462-12080 | ||||
| 90464-00484 | ||||
| 90467-16022 | ||||
| 90480-01557 | ||||
| 90949-01629 | ||||
| 90949-01634 | ||||
| 91611-60816 | ||||
| 91615-60835 | ||||
| 91616-40820 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
ILLUST NO. 3 OF 3(9001- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN W(AUXILIARY FUEL TANK 2 PIECE) |
2 | ||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN W(AUXILIARY FUEL TANK 3 PIECE) |
3 | ||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..(ARL,GCC,GEN)..CBU W(AUXILIARY FUEL TANK 4 PIECE) |
4 | ||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..(ARL,GCC,GEN)..CBU W(AUXILIARY FUEL TANK 5 PIECE) |
5 | ||
| 77110-60011 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||
ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
