Toyota Land cruiser HZJ75 OIL FILTER

HZJ75LP-MR3 (1994)

Toyota Land Cruiser

Production Jan 1994 - Aug 1999

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

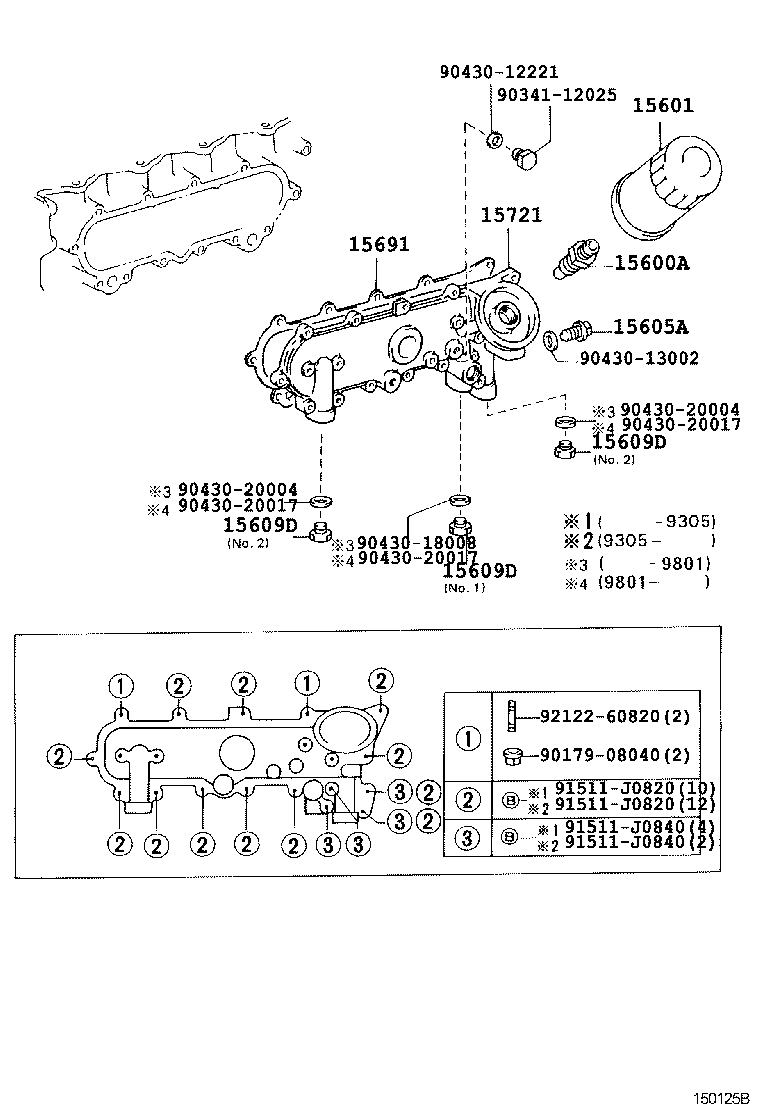

Click highlighted areas on diagram

Part #	Description	Period	Qty
15600A - UNION(FOR OIL FILTER)
90404-27001	1HZ..HZJ7#	01/1990 - 05/1993	1
15601 - FILTER SUB-ASSY, OIL
90915-03006	1HZ..HZJ7#	01/1990 - 06/1991	1
15605A - VALVE SUB-ASSY, OIL CHECK
15605-17020	1HZ..HZJ7#	01/1990 - 05/1993	1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15691 - GASKET, OIL FILTER
15725-17010	1HZ..HZJ7#	01/1990 - 05/1993	1
15721 - COVER, OIL COOLER
15721-17010	1HZ..HZJ7#	01/1990 - 05/1993	1
15721-17011	1HZ..HZJ7#	05/1997 - 01/1998	1
15721-17012	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	1
Common parts
90179-08040
90341-12025
90430-12221
90430-13002
90430-18008
90430-20004
90430-20017
91511-J0820
91511-J0840
92122-60820

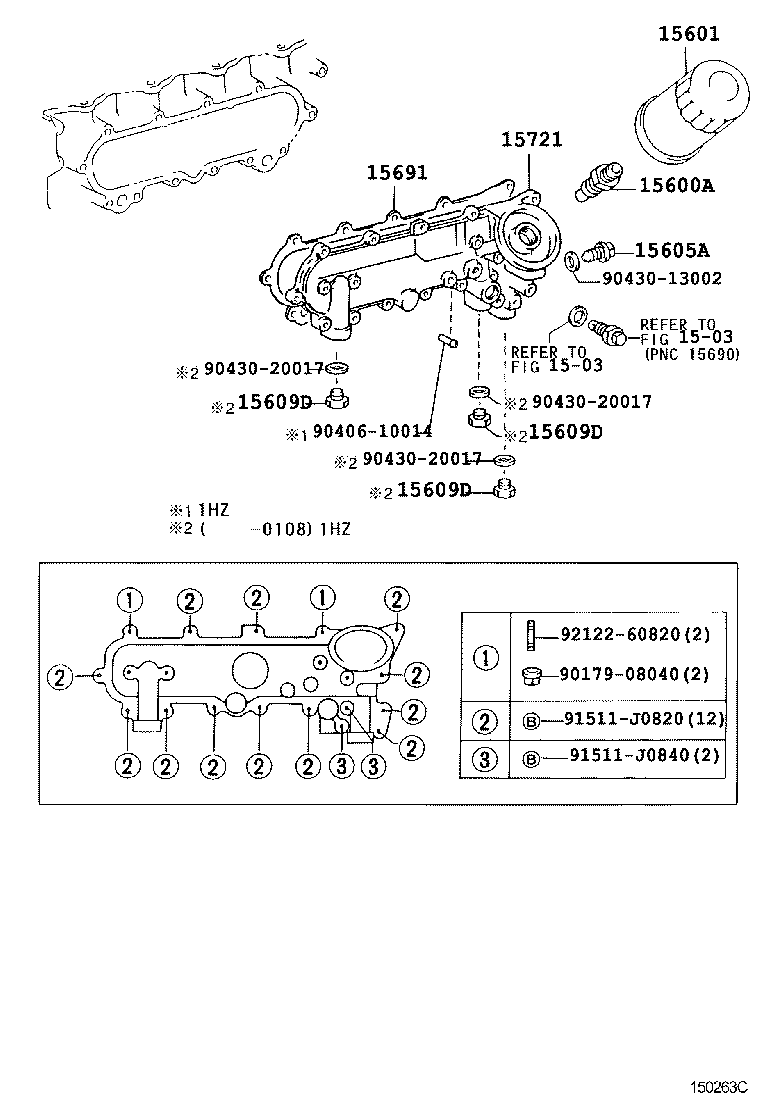

Click highlighted areas on diagram

Part #	Description	Period	Qty
15600A - UNION(FOR OIL FILTER)
90404-27001	1HZ..HZJ7#	01/1990 - 05/1993	1
15601 - FILTER SUB-ASSY, OIL
90915-03006	1HZ..HZJ7#	01/1990 - 06/1991	1
15605A - VALVE SUB-ASSY, OIL CHECK
15605-17020	1HZ..HZJ7#	01/1990 - 05/1993	1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006	1HZ..HZJ7# NO.1	01/1990 - 05/1993	1
90341-20002	1HZ..HZJ7# NO.2	01/1990 - 05/1993	2
90341-20002	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	3
15691 - GASKET, OIL FILTER
15725-17010	1HZ..HZJ7#	01/1990 - 05/1993	1
15721 - COVER, OIL COOLER
15721-17010	1HZ..HZJ7#	01/1990 - 05/1993	1
15721-17011	1HZ..HZJ7#	05/1997 - 01/1998	1
15721-17012	1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU	01/1998 - 08/1999	1
Common parts
90179-08040
90406-10014
90430-13002
90430-20017
91511-J0820
91511-J0840
92122-60820
Linked diagrams
1503
