HZJ75LP-MR3 (1994)
Toyota Land Cruiser

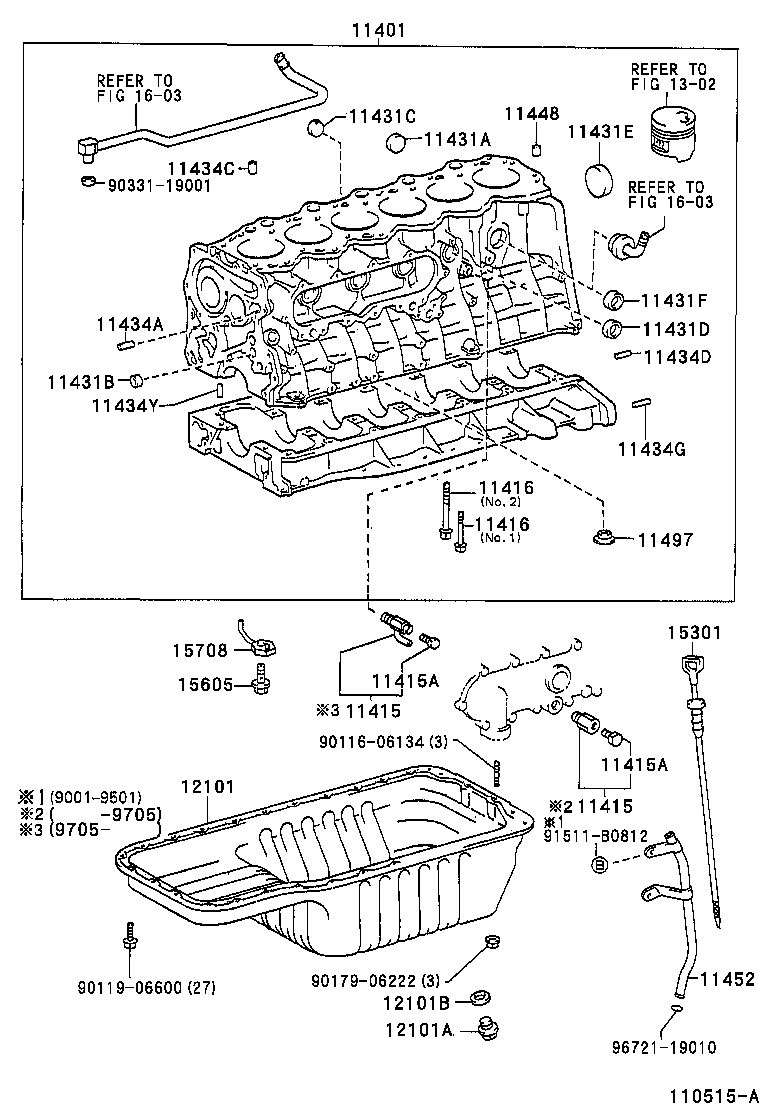

(9001-9805)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19635 |
1HZ..HZJ75..LHD..HT..5F;1HZ..HZJ75..PIC..(GCC,GEN) W(FRONT HEATER) |
1 | ||
| 11401-19605 |
1HZ..HZJ75..GCC,GEN |
1 | ||
| 11401-19608 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19637 |
1HZ..HZJ70..SOT;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU W(FRONT HEATER) |
1 | ||
| 11401-19607 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19638 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11401-19609 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19639 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11401-80035 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-80041 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU W(HEATER) |
1 | ||
| 11401-80042 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU |
1 | ||
| 11401-80010 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1HZ..HZJ7# |
1 | ||
| 90910-09087 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1HZ..HZJ7# |
1 | ||
| 90910-09087 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HZ..HZJ7# NO.1 |
15 | ||
| 90910-02098 |
1HZ..HZJ7# NO.2 |
14 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HZ..HZJ7# NO.1 |
15 | ||
| 90910-02098 |
1HZ..HZJ7# NO.2 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-35002 |
1HZ..HZJ7# |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
1HZ..HZJ7# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
1HZ..HZJ7# |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1HZ..HZJ7# |
6 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
1HZ..HZJ7# |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1HZ..HZJ75..GCC,GEN |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1HZ..HZJ7# L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
1HZ..HZJ7# L=15,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1HZ..HZJ7# L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-08054 |
1HZ..HZJ7# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-12006 |
1HZ..HZJ7# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-17010 |
1HZ..HZJ7# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-17010 |
1HZ..HZJ7# |
1 | ||
| 11452-17040 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11452-17011 |
1HZ..HZJ7# |
1 | ||
| 11497 - GASKET, CYLINDER BLOCK OIL HOLE | ||||
| 11497-17010 |
1HZ..HZJ7# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-17040 |
1HZ..HZJ7# |
1 | ||
| 12101-17190 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1HZ..HZJ7# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
1HZ..HZJ7# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-17010 |
1HZ..HZJ7# |
1 | ||
| 15301-17050 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 15301-17030 |
1HZ..HZJ7# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
1HZ..HZJ7# |
6 | ||
| 15605-17030 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-17010 |
1HZ..HZJ7# |
6 | ||
| Common parts | ||||
| 90116-06134 | ||||
| 90119-06600 | ||||
| 90179-06222 | ||||
| 90331-19001 | ||||
| 91511-B0812 | ||||
| 96721-19010 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||

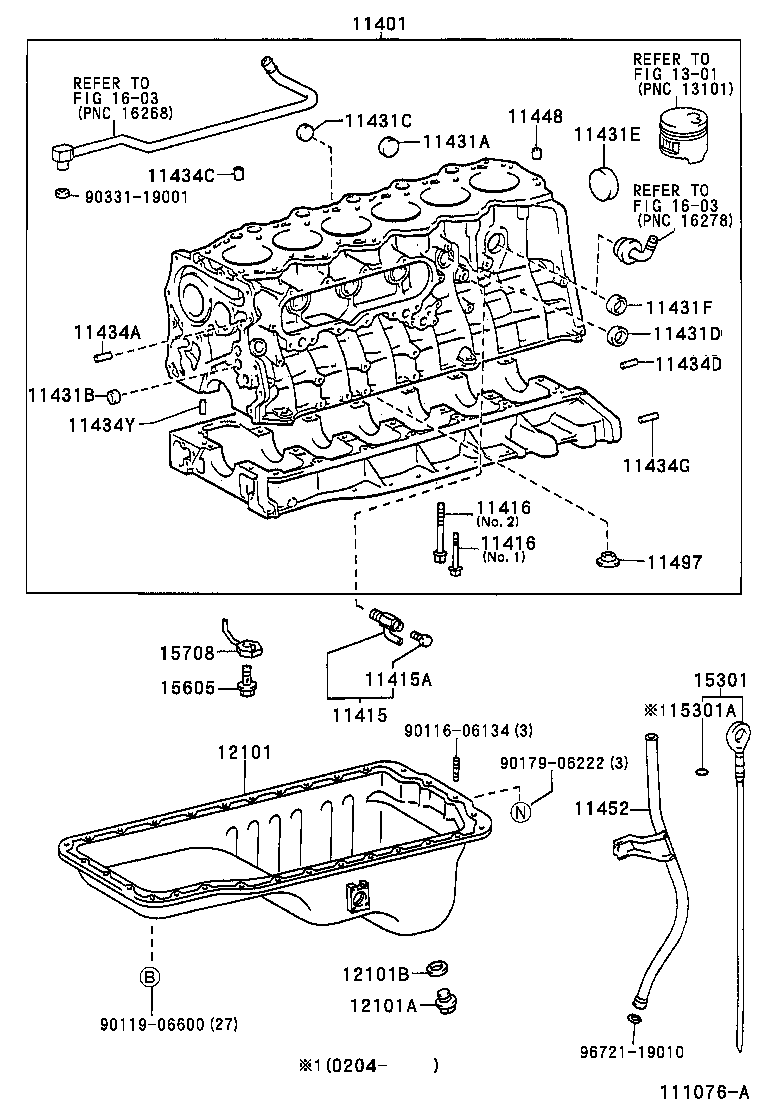

(9805- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19635 |
1HZ..HZJ75..LHD..HT..5F;1HZ..HZJ75..PIC..(GCC,GEN) W(FRONT HEATER) |
1 | ||
| 11401-19605 |
1HZ..HZJ75..GCC,GEN |
1 | ||
| 11401-19608 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19637 |
1HZ..HZJ70..SOT;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU W(FRONT HEATER) |
1 | ||
| 11401-19607 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19638 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11401-19609 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-19639 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11401-80035 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 11401-80041 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU W(HEATER) |
1 | ||
| 11401-80042 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU |
1 | ||
| 11401-80010 |
1HZ..HZJ7#..GCC,GEN W(FRONT HEATER) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1HZ..HZJ7# |
1 | ||
| 90910-09087 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HZ..HZJ7# NO.1 |
15 | ||
| 90910-02098 |
1HZ..HZJ7# NO.2 |
14 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HZ..HZJ7# NO.1 |
15 | ||
| 90910-02098 |
1HZ..HZJ7# NO.2 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-35002 |
1HZ..HZJ7# |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
1HZ..HZJ7# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
1HZ..HZJ7# |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1HZ..HZJ7# |
6 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
1HZ..HZJ7# |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1HZ..HZJ75..GCC,GEN |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1HZ..HZJ7# L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
1HZ..HZJ7# L=15,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1HZ..HZJ7# L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-08054 |
1HZ..HZJ7# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-12006 |
1HZ..HZJ7# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-17010 |
1HZ..HZJ7# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-17010 |
1HZ..HZJ7# |
1 | ||
| 11452-17040 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 11452-17011 |
1HZ..HZJ7# |
1 | ||
| 11497 - GASKET, CYLINDER BLOCK OIL HOLE | ||||
| 11497-17010 |
1HZ..HZJ7# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-17040 |
1HZ..HZJ7# |
1 | ||
| 12101-17190 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1HZ..HZJ7# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
1HZ..HZJ7# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-17010 |
1HZ..HZJ7# |
1 | ||
| 15301-17050 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
1 | ||
| 15301-17030 |
1HZ..HZJ7# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
1HZ..HZJ7# |
6 | ||
| 15605-17030 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-17010 |
1HZ..HZJ7# |
6 | ||
| Common parts | ||||
| 90116-06134 | ||||
| 90119-06600 | ||||
| 90179-06222 | ||||
| 90331-19001 | ||||
| 96721-19010 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
