HZJ73RV-MNQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ,1PZ..HZJ70,73,PZJ70,73

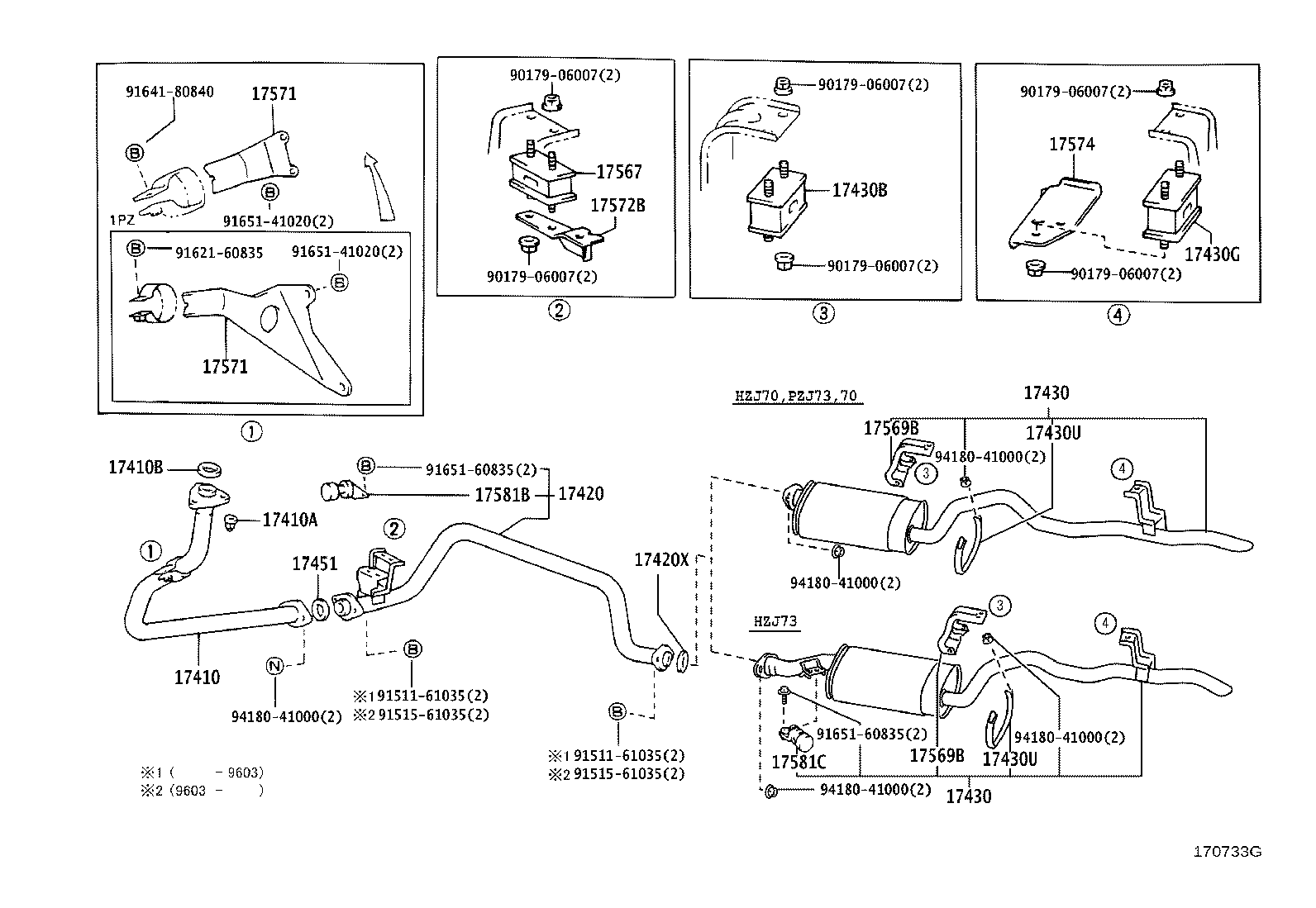

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17430 17430B 17430G 17430U 17430U 17451 17567 17569B 17569B 17571 17571 17572B 17574 17581B 17581C 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151561035 9151561035 9162160835 9164180840 9165141020 9165141020 9165160835 9165160835 9418041000 9418041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17070

1HZ..HZJ7#..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,3F,1HZ,2H,3L,1PZ..FJ7#,HJ75,HZJ7#,LJ72,79,PZJ7#,RJ7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

1HZ,1PZ..HZJ7#,PZJ7#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17060

1HZ,1PZ..HZJ73,PZJ73

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

1HZ,1PZ..HZJ70,73,PZJ70,73

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17050

1HZ..HZJ73

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17050

1HZ..HZJ73

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17010

1HZ,1PZ..HZJ70,73,PZJ70,73

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-17010

1HZ,1PZ..HZJ70,73,PZJ70,73

 1
17567-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
17504-17010

1FZ#,1HZ..FZJ70,73,HZJ70,73

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
17504-17010

1FZ#,1HZ..FZJ70,73,HZJ70,73

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1HZ,1PZ..HZJ7#,PZJ7#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17010

1HZ,1PZ..HZJ70,73,PZJ70,73

 1
17567-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
17569B - STAY, EXHAUST PIPE SUPPORT, NO.2
17569-17010

1FZ#,1HZ..FZJ70,73,HZJ70,73

 1
17569B - STAY, EXHAUST PIPE SUPPORT, NO.2
17569-17010

1FZ#,1HZ..FZJ70,73,HZJ70,73

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17030

1HZ..HZJ7#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17030

1HZ..HZJ7#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-60061

2LT,3L,1PZ..LJ77,79,PZJ70..RHD;1HZ,2H,2LT,3L,1PZ..HJ75,HZJ73,75,LJ70,72,PZJ73,75

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-60030

22R,1FZ#,3F,1HZ,2LT,3L,1PZ..FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-17020

1HZ..HZJ73,75

 1
Common parts
90179-06007
91511-61035
91515-61035
91621-60835
91641-80840
91651-41020
91651-60835
94180-41000
