HJ75RP-MRN (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

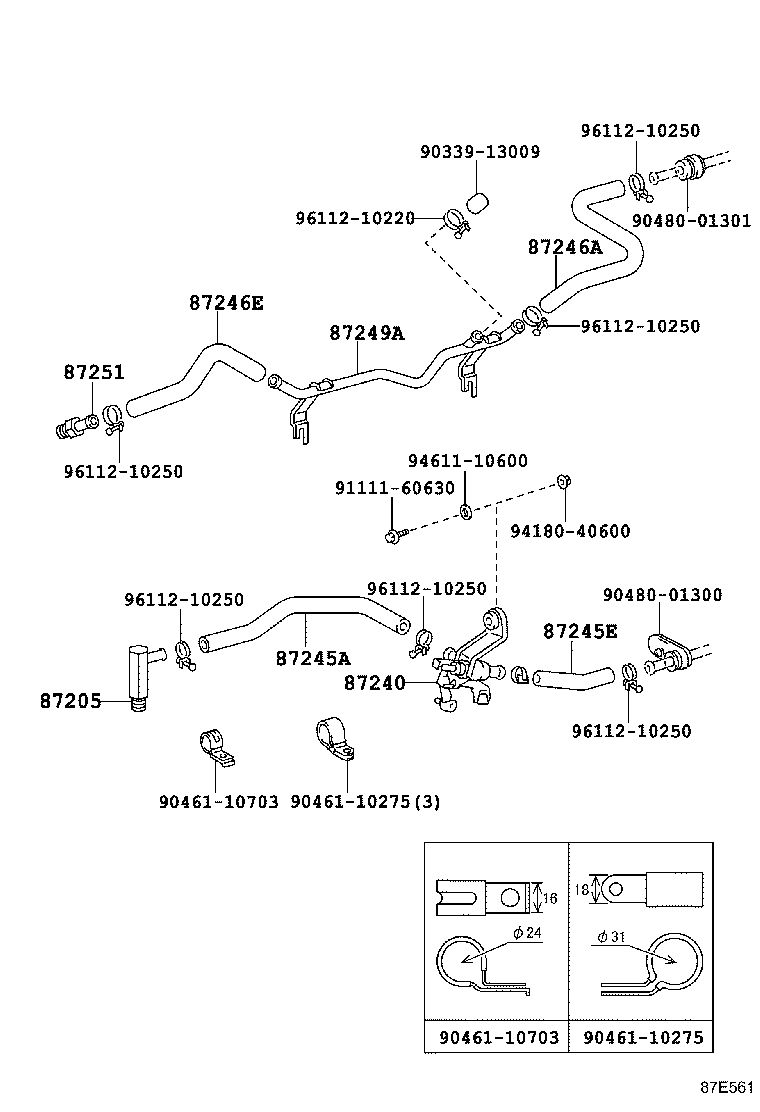

ILLUST NO. 1 OF 2(9001- )HJ75

Click highlighted areas on diagram

FRONT

diagram 87205 87240 87245A 87245E 87246A 87246E 87249A 87251 9033913009 9046110275 9046110275 9046110703 9046110703 9048001300 9048001301 9111160630 9418040600 9461110600 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

HJ75

 1
87240 - VALVE ASSY, HEATER WATER
87240-90K06

HJ75

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90K05

HJ75

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

FZJ7#..GCC,SA;FJ7#,HJ75,RJ7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90K06

HJ75

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90A19

HJ75

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-90K28

HJ75

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

HJ75

 1
Common parts
90339-13009
90461-10275
90461-10703
90480-01300
90480-01301
91111-60630
94180-40600
94611-10600
96112-10220
96112-10250
