HJ75RP-MRN (1990)
Toyota Land Cruiser

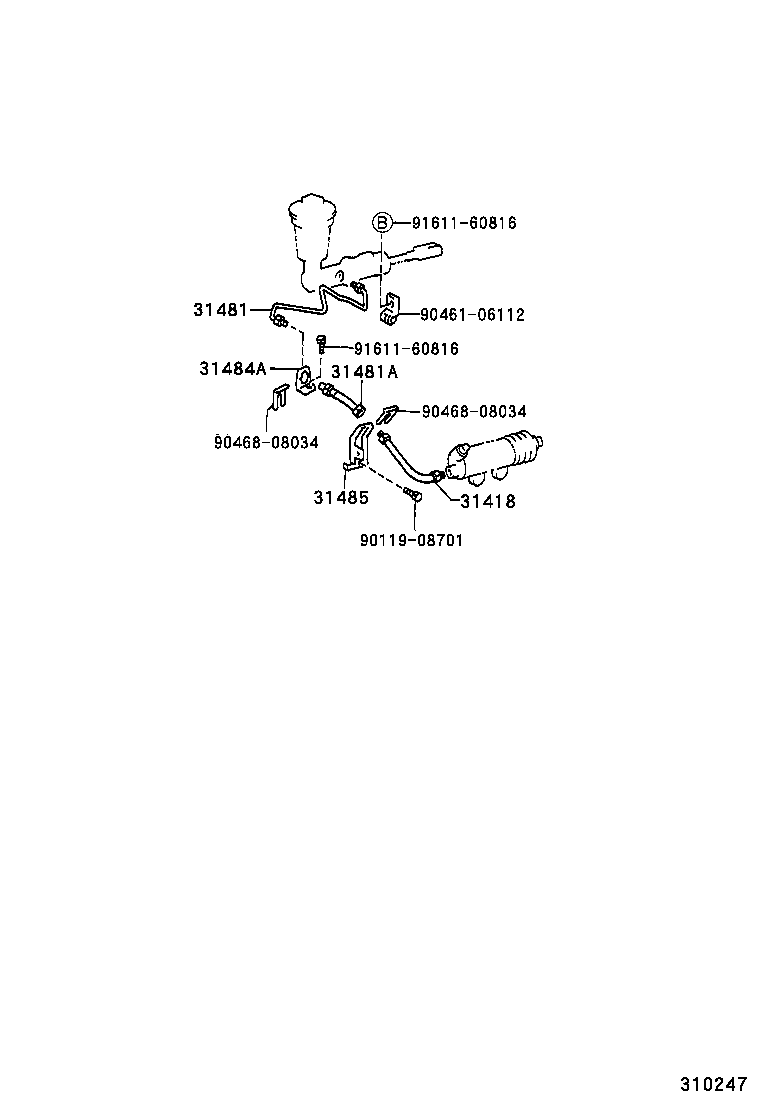

ILLUST NO. 2 OF 2(9001-0007)HZJ70,73,75,PZJ7#..RHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60431 |
FZJ70,75,HZJ7#,PZJ7#..RHD..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-60040 |
FJ7#,HJ75,LJ7#..MTM |
1 | ||
| Common parts | ||||
| 47371-60020 | ||||
| 47371-60030 | ||||
| 90119-08701 | ||||
| 90468-08034 | ||||
| 91611-60816 | ||||
ILLUST NO. 2 OF 2(9001-9208)FJ7#,HJ75..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60431 |
FZJ70,75,HZJ7#,PZJ7#..RHD..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-60040 |
FJ7#,HJ75,LJ7#..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-60060 |
FJ7#,HJ75..MTM |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-06112 | ||||
| 90468-08034 | ||||
| 91611-60816 | ||||
ILLUST NO. 1 OF 2(9001-0007)FJ7#,HJ75,HZJ70,73,75,LJ7#,PZJ7#,RJ7#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60091 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14015 |
FZJ75..GCC;HZJ75..LHD..CBU;FZJ70,HZJ70..ARL,GCC;FZJ70,HZJ75..RHD..(CBR,DSL);FZJ70,75..LHD..(PIC,SOT)..GEN..CBU;FZJ71,75,78,79,HZJ71,78,79..RHD..(ARL,GEN);FJ7#,FZJ73,HDJ7#,HJ75,HZJ73,LJ7#,PZJ7#,RJ7#..MTM..(CBR,DSL,TD,TDEFI) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
FJ7#,HJ75,HZJ7#,LJ70,PZJ7#,RJ70..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91131-50828 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-90K00 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..RHD..MTM |
1 | ||
| Common parts | ||||
| 90119-08681 | ||||
| 90179-08038 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 91665-60835 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 94611-10800 | ||||
| 94622-10800 | ||||
