HJ75RP-MRN (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

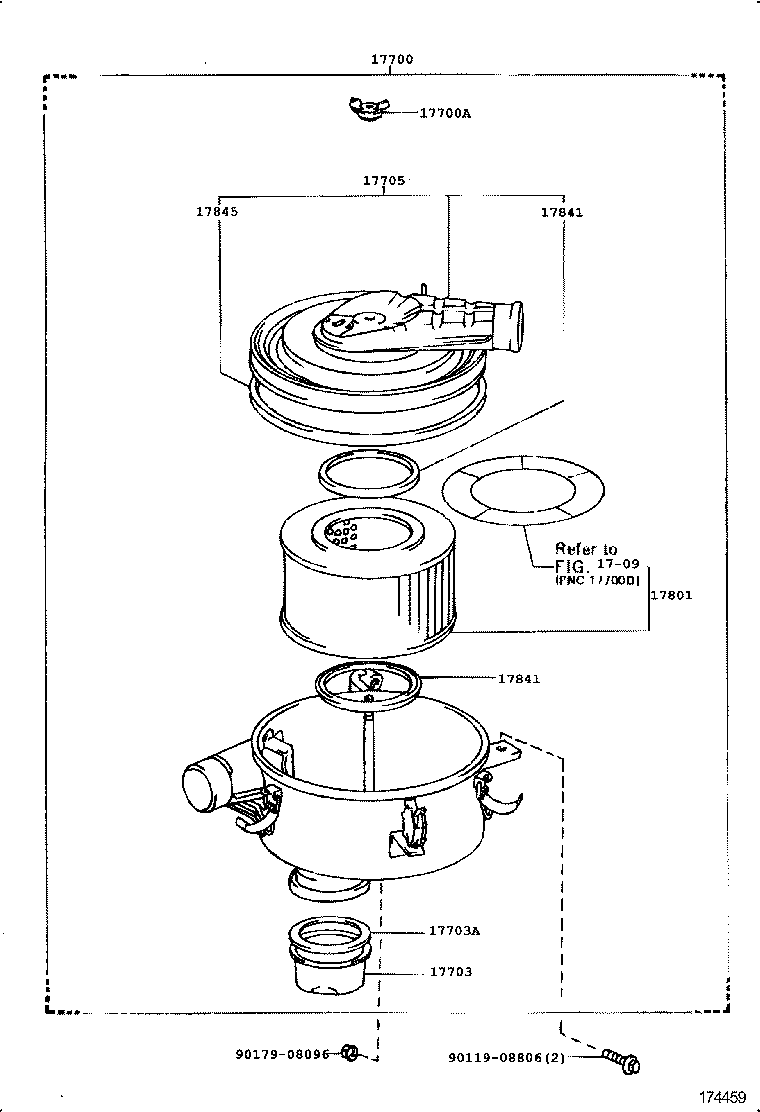

ILLUST NO. 1 OF 2(9001-0701)2H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17703 17703A 17705 17801 17841 17841 17845 9011908806 9017908096
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-61161

2H..HJ75

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1HZ,2H..HJ75,HZJ7#

 1
17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
17703-68010

2H..HJ75

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001

1HZ,2H..HJ75,HZJ7#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-61090

2H..HJ75

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

1HZ,2H..HJ75,HZJ7#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

1HZ,2H..HJ75,HZJ7#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

1HZ,2H..HJ75,HZJ7#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

1HZ,2H..HJ75,HZJ7#

 1
Common parts
90119-08806
90179-08096
Linked diagrams
1709

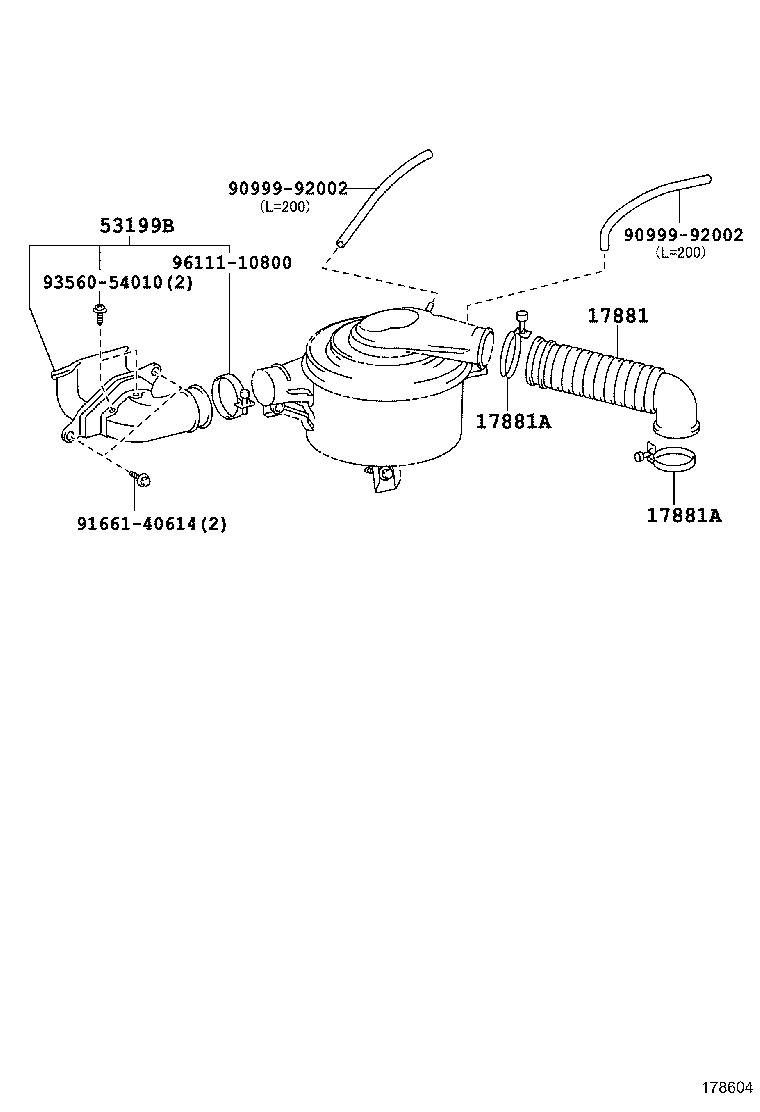

ILLUST NO. 2 OF 2(9001-0701)2H

Click highlighted areas on diagram

diagram 17881 17881A 17881A 53199B 9099992002 9099992002 9166140614 9356054010 9611110800
Part # Description Qty Price
17881 - HOSE, AIR CLEANER, NO.1
17881-68040

2H..HJ75

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

2H..HJ75

AIR CLEANER SIDE

 1
96111-10780

2H..HJ75

VENTURI SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

2H..HJ75

AIR CLEANER SIDE

 1
96111-10780

2H..HJ75

VENTURI SIDE

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60070

FJ73,75;FJ70..GCC,GEN

 1
53207-60070

HZJ75..LHD..CBU;HZJ71,78,79..ARL,GEN;HZJ75..RHD..(ARL,GEN);HJ75,HZJ70,73..ARL,SA

 1
Common parts
90999-92002
91661-40614
93560-54010
96111-10800
