HJ60LG-MK (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )5F

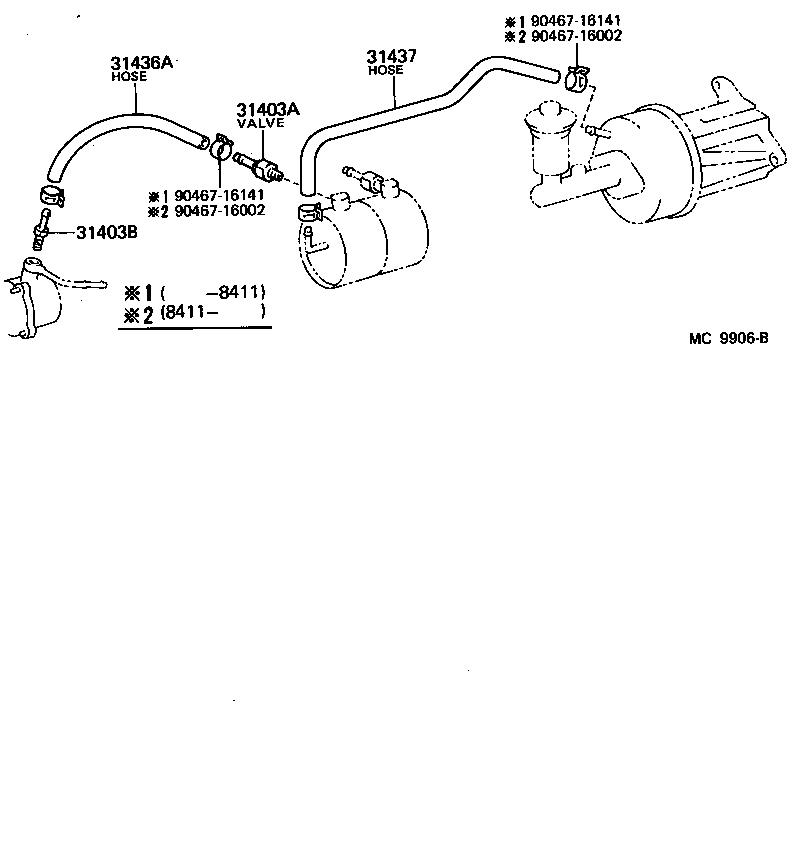

Click highlighted areas on diagram

diagram 31403A 31403B 31436A 31437 9046716002 9046716002 9046716141 9046716141
Part # Description Qty Price
31403B - UNION(FOR VACUUM PUMP)
90404-09008

HJ60..5F

 1
31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)
95441-09240

HJ60..5F

 1
31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM)
31438-60010

HJ60..5F

 1
Common parts
90467-16002
90467-16141
