HDJ79R-TJMRZQ3 (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

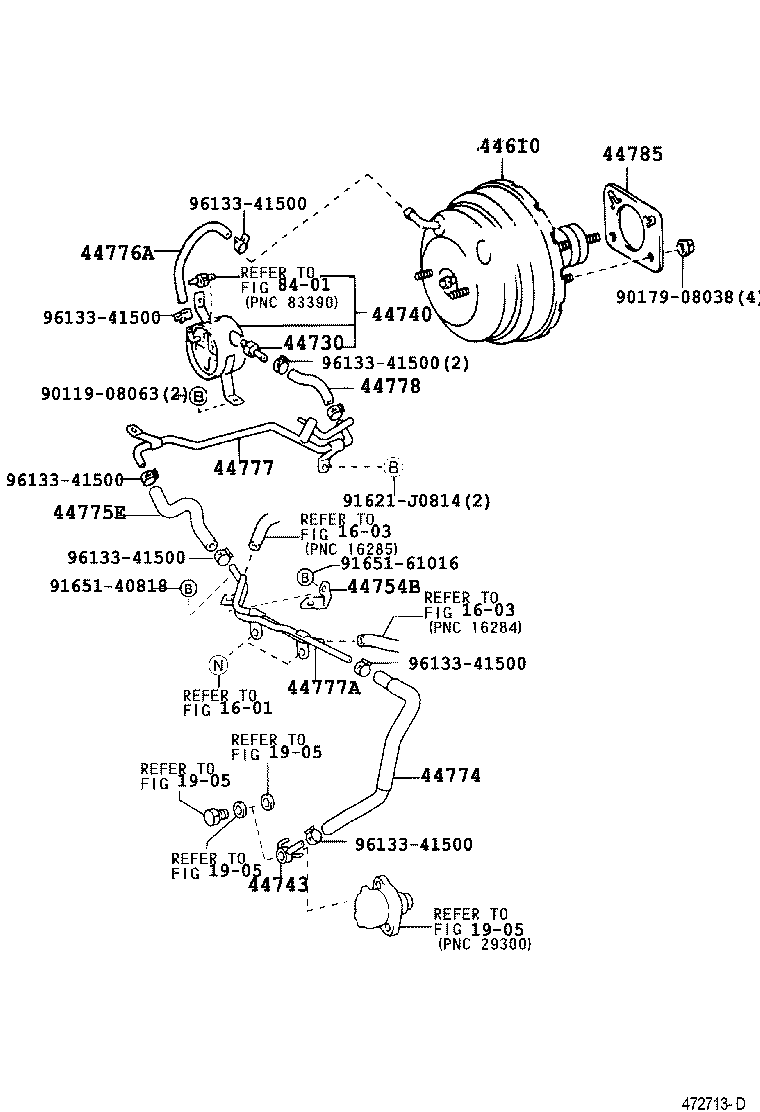

(0108-0701)HDJ7#

Click highlighted areas on diagram

diagram 1601 1603 1603 1905 1905 1905 1905 44610 44730 44740 44743 44754B 44774 44775E 44776A 44777 44777A 44778 44785 8401 9011908063 9017908038 91621J0814 9165140818 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60460

LJ77,79..RHD;HJ75,HZJ7#,LJ70,PZJ70,73..ARL,SA

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09141

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
90405-09142

HDJ7#

 1
44754B - BRACKET, VACUUM TUBE
44754-60010

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44754-60020

HDJ7#,HZJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60240

HDJ7#

 1
44775E - HOSE, WAY TO CONNECTOR
44775-60070

HDJ7#,HZJ7#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44773-60230

HDJ7#,HZJ7#..RHD

W(*CLB)

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44769-60050

HDJ7#,HZJ7#..RHD

W(*CLB)

 1
44763-60090

HDJ7#,HZJ7#..RHD

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60220

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44777-60350

HDJ7#

 1
44777-60351

HDJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

FZJ78,79..ARL

 1
44785-35030

HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU

 1
Common parts
90119-08063
90179-08038
91621-J0814
91651-40818
91651-61016
96133-41500
Linked diagrams
1601
1603
1905
8401

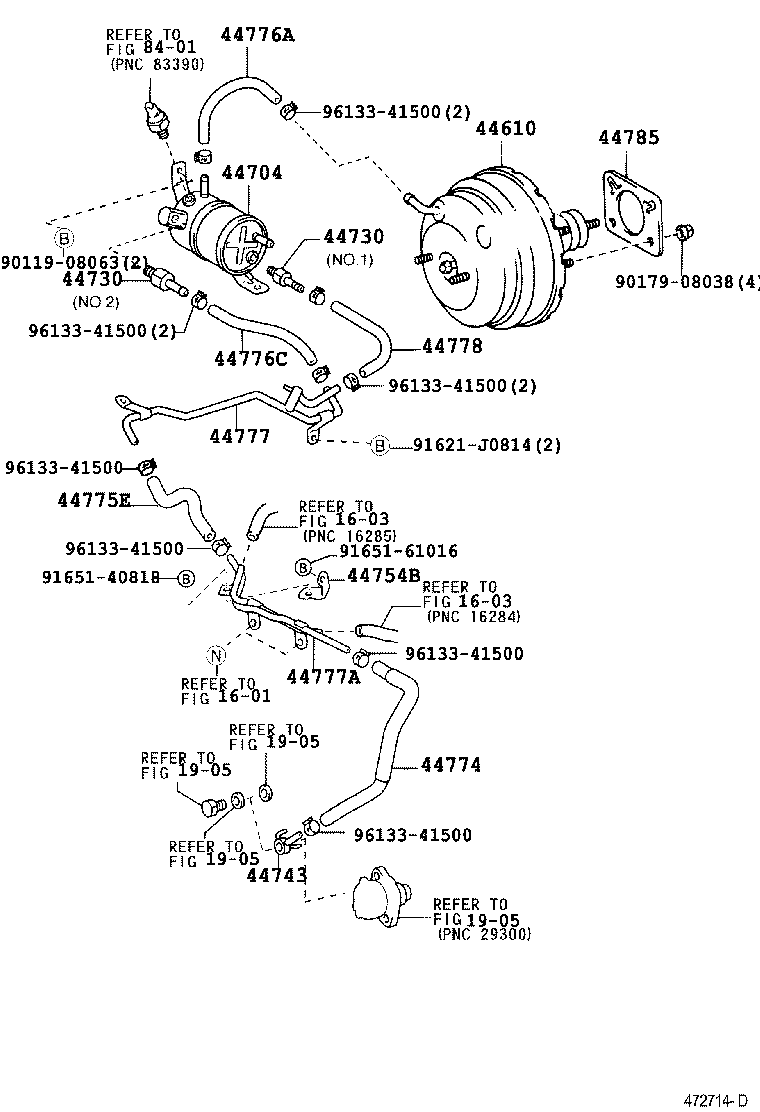

(0108-0701)HDJ7#

Click highlighted areas on diagram

W(CLUTCH BOOSTER)

diagram 1601 1603 1603 1905 1905 1905 1905 44610 44704 44730 44730 44743 44754B 44774 44775E 44776A 44776C 44777 44777A 44778 44785 8401 9011908063 9017908038 91621J0814 9165140818 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60460

LJ77,79..RHD;HJ75,HZJ7#,LJ70,PZJ70,73..ARL,SA

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09141

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
90405-09142

HDJ7#

 1
44754B - BRACKET, VACUUM TUBE
44754-60010

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44754-60020

HDJ7#,HZJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60240

HDJ7#

 1
44775E - HOSE, WAY TO CONNECTOR
44775-60070

HDJ7#,HZJ7#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44773-60230

HDJ7#,HZJ7#..RHD

W(*CLB)

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44769-60050

HDJ7#,HZJ7#..RHD

W(*CLB)

 1
44763-60090

HDJ7#,HZJ7#..RHD

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60220

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44777-60350

HDJ7#

 1
44777-60351

HDJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

FZJ78,79..ARL

 1
44785-35030

HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU

 1
Common parts
90119-08063
90179-08038
91621-J0814
91651-40818
91651-61016
96133-41500
Linked diagrams
1601
1603
1905
8401
