HDJ79R-TJMRZQ3 (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1HDFTE

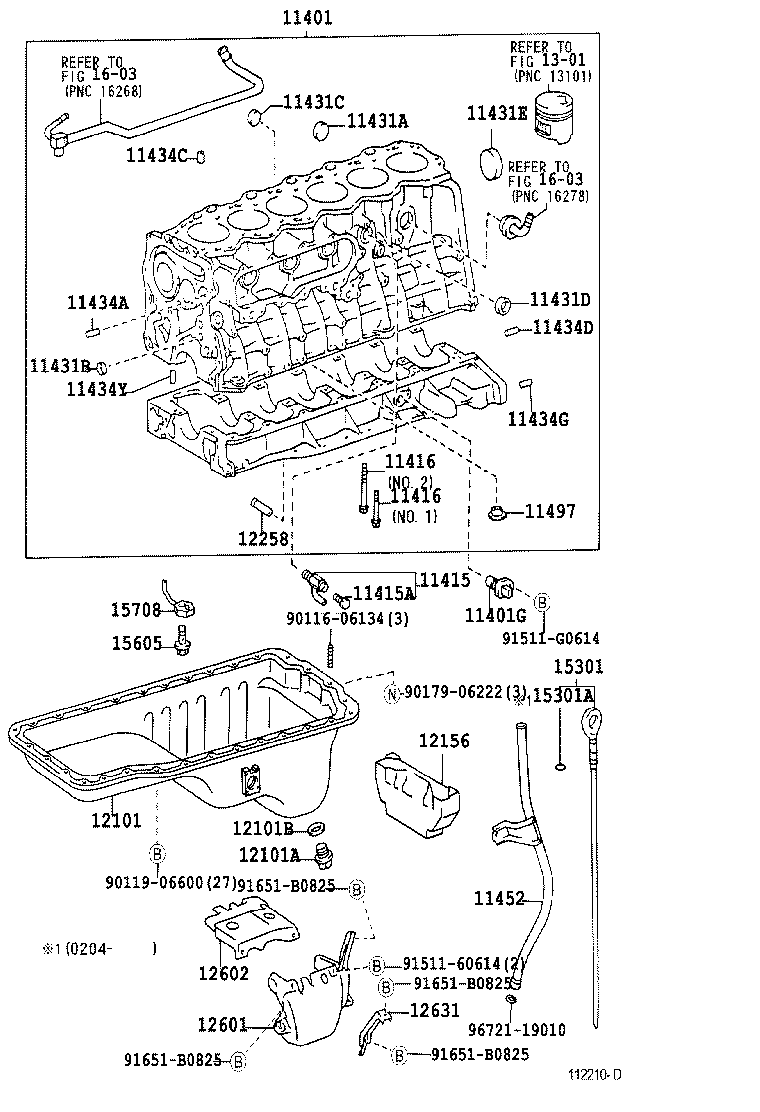

Click highlighted areas on diagram

diagram 11401 11401G 11415 11415A 11416 11416 11431A 11431B 11431C 11431D 11431E 11434A 11434C 11434D 11434G 11434Y 11452 11497 12101 12101A 12101B 12156 12258 12601 12602 12631 1301 15301 15301A 15605 15708 1603 1603 9011606134 9011906600 9017906222 9151160614 91511G0614 91651B0825 91651B0825 91651B0825 91651B0825 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80054

1HDFTE..HDJ7#

 1
11401G - SENSOR, CRANK POSITION
90919-05005

1HDFTE..HDJ7#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-17040

1H#..HDJ7#,HZJ7#

 1
12156 - INSULATOR, OIL PAN
12156-17010

1HDFTE..HDJ7#

 1
12258 - PIPE, OIL RETURN
12258-17010

1HDFTE..HDJ7#

 1
12601 - COVER SUB-ASSY, ENGINE, NO.1
12601-17010

1HDFTE..HDJ7#

 1
12602 - COVER SUB-ASSY, ENGINE, NO.2
12602-17030

1HDFTE..HDJ7#

 1
12631 - BRACKET, ENGINE COVER
12631-17011

1HDFTE..HDJ7#

 1
12631-17012

1HDFTE..HDJ7#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1H#..HDJ7#,HZJ7#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-17020

1HDFTE..HDJ7#

 6
Common parts
90116-06134
90119-06600
90179-06222
91511-60614
91511-G0614
91651-B0825
96721-19010
Linked diagrams
1301
1603
