HDJ79R-TJMNZQ3 (2001)
Toyota Land Cruiser
Production
Aug 2001
-
Jan 2007
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

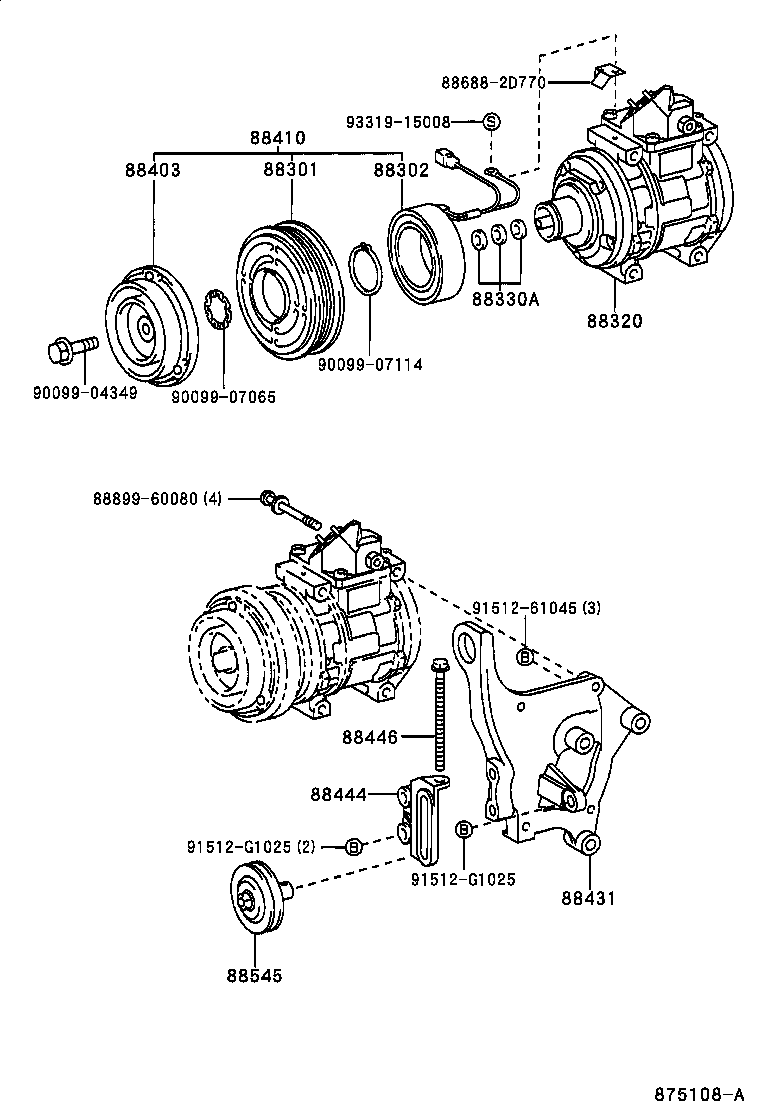

ILLUST NO. 1 OF 3(0108- )HDJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-35030 |
HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);HZJ71,78,79,PZJ7#,RJ7# |
1 | ||
| 88412-6A020 |
HDJ7# |
1 | ||
| 88412-35030 |
HZJ78,79..ARL |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
HZJ78,79..ARL |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60700 |
HDJ7# |
1 | ||
| 88320-60560 |
HZJ78,79..ARL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
HZJ78,79..ARL |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
HZJ78,79..ARL |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
HZJ78,79..ARL |
1 | ||
| 88410-6A010 |
HDJ7# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60150 |
HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#;HZJ75..RHD..(ARL,GEN) |
1 | ||
| 88431-60260 |
HDJ7# |
1 | ||
| 88431-60150 |
HZJ78,79..ARL |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60100 |
HZJ70,73,75..ARL;HZJ71,78,79,PZJ7# |
1 | ||
| 88444-60120 |
HDJ7# |
1 | ||
| 88444-60100 |
HZJ78,79..ARL |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60030 |
HZJ78,79..ARL |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-60060 |
HDJ7# |
1 | ||
| Common parts | ||||
| 88688-2D770 | ||||
| 88899-60080 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 91512-61045 | ||||
| 91512-G1025 | ||||
| 93319-15008 | ||||
