HDJ78R-RJMRZQ (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0701)HDJ7#

Click highlighted areas on diagram

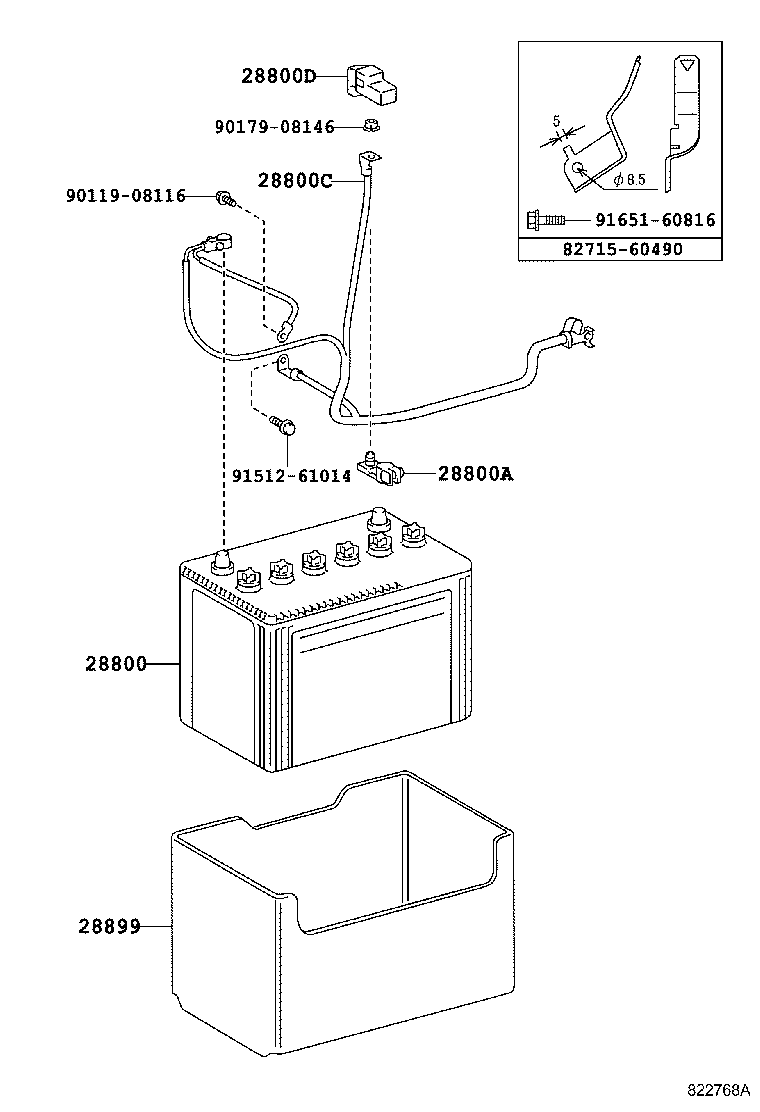

diagram 28800 28800A 28800C 28800D 28899 8271560490 9011908116 9017908146 9151261014 9165160816
Part # Description Qty Price
28800 - BATTERY
28800-17131

1HDFTE..HDJ7#

105D31R,FURUKAWA

 1
28800-67123

1HDFTE..HDJ7#

105D31R

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60410

1HDFTE..HDJ7#

 1
28899 - INSULATOR, BATTERY
28899-54050

1HDFTE..HDJ7#

 1
Common parts
82715-60490
90119-08116
90179-08146
91512-61014
91651-60816
