HDJ78R-RJMRZQ (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0701)HDJ7#

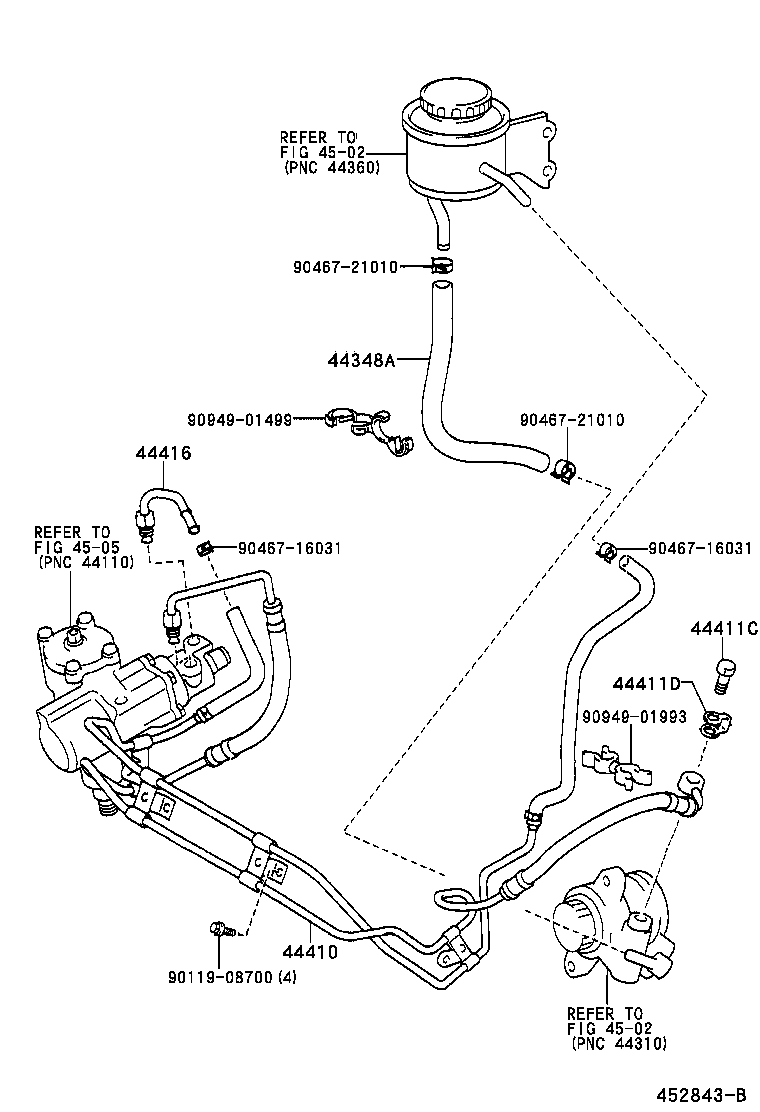

Click highlighted areas on diagram

diagram 44348A 44410 44411C 44411D 44416 4502 4502 4505 9011908700 9046716031 9046716031 9046721010 9046721010 9094901499 9094901993
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60300

HDJ7#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60540

HDJ7#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

HDJ7#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

HDJ7#

 1
Common parts
90119-08700
90467-16031
90467-21010
90949-01499
90949-01993
Linked diagrams
4502
4505
