HDJ78R-RJMNZQ (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0701)1HDFTE

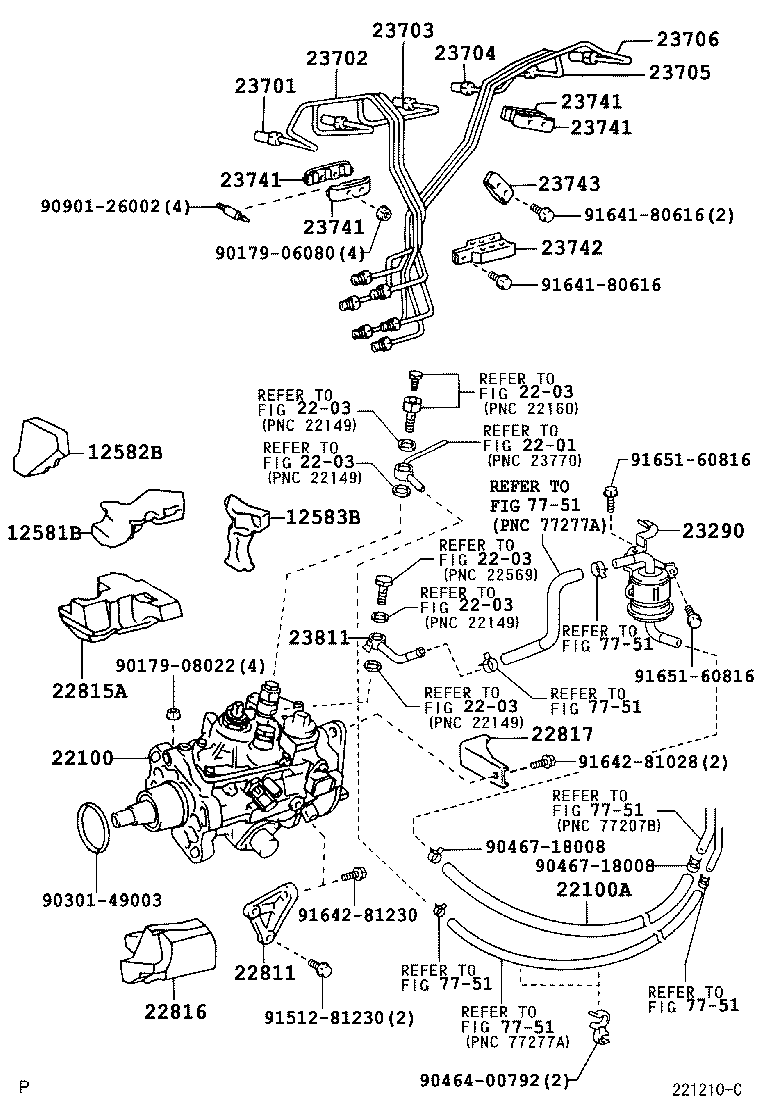

Click highlighted areas on diagram

diagram 12581B 12582B 12583B 2201 2203 2203 2203 2203 2203 2203 22100 22100A 22811 22815A 22816 22817 23290 23701 23702 23703 23704 23705 23706 23741 23741 23741 23741 23742 23743 23811 7751 7751 7751 7751 7751 7751 7751 9017906080 9017908022 9030149003 9046400792 9046718008 9046718008 9090126002 9151281230 9164180616 9164180616 9164281028 9164281230 9165160816 9165160816
Part # Description Qty Price
12581B - INSULATOR, CYLINDER BLOCK, NO.1
12581-17020

1HDFTE..HDJ7#

 1
12582B - INSULATOR, CYLINDER BLOCK, NO.2
12582-17010

1HDFTE..HDJ7#

 1
12583B - INSULATOR, CYLINDER BLOCK, NO.3
12583-17010

1HDFTE..HDJ7#

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-1C410

1HDFTE..HDJ7#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-17170

1HDFTE..HDJ7#

 1
23271-17190

1HDFTE..HDJ7#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-17030

1HDFTE..HDJ7#

 1
22815A - INSULATOR, INJECTION PUMP
22815-17020

1HDFTE..HDJ7#

 1
22816 - INSULATOR, INJECTION PUMP, NO.2
22816-17010

1HDFTE..HDJ7#

 1
22817 - BRACKET, PUMP STAY
22817-17020

1HDFTE..HDJ7#

 1
23290 - DAMPER ASSY, FUEL SUCTION
23290-17030

1HDFTE..HDJ7#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17080

1HDFTE..HDJ7#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17080

1HDFTE..HDJ7#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17080

1HDFTE..HDJ7#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17080

1HDFTE..HDJ7#

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17080

1HDFTE..HDJ7#

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17080

1HDFTE..HDJ7#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17051

1HDFTE..HDJ7#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17051

1HDFTE..HDJ7#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17051

1HDFTE..HDJ7#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17051

1HDFTE..HDJ7#

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17030

1HDFTE..HDJ7#

 1
23743 - CLAMP, INJECTION PIPE, NO.3
23743-17010

1HDFTE..HDJ7#

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-17080

1HDFTE..HDJ7#

 1
Common parts
90179-06080
90179-08022
90301-49003
90464-00792
90467-18008
90901-26002
91512-81230
91641-80616
91642-81028
91642-81230
91651-60816
Linked diagrams
2201
2203
7751
