GRJ76L-RKMNKV (2009)
Toyota Land Cruiser

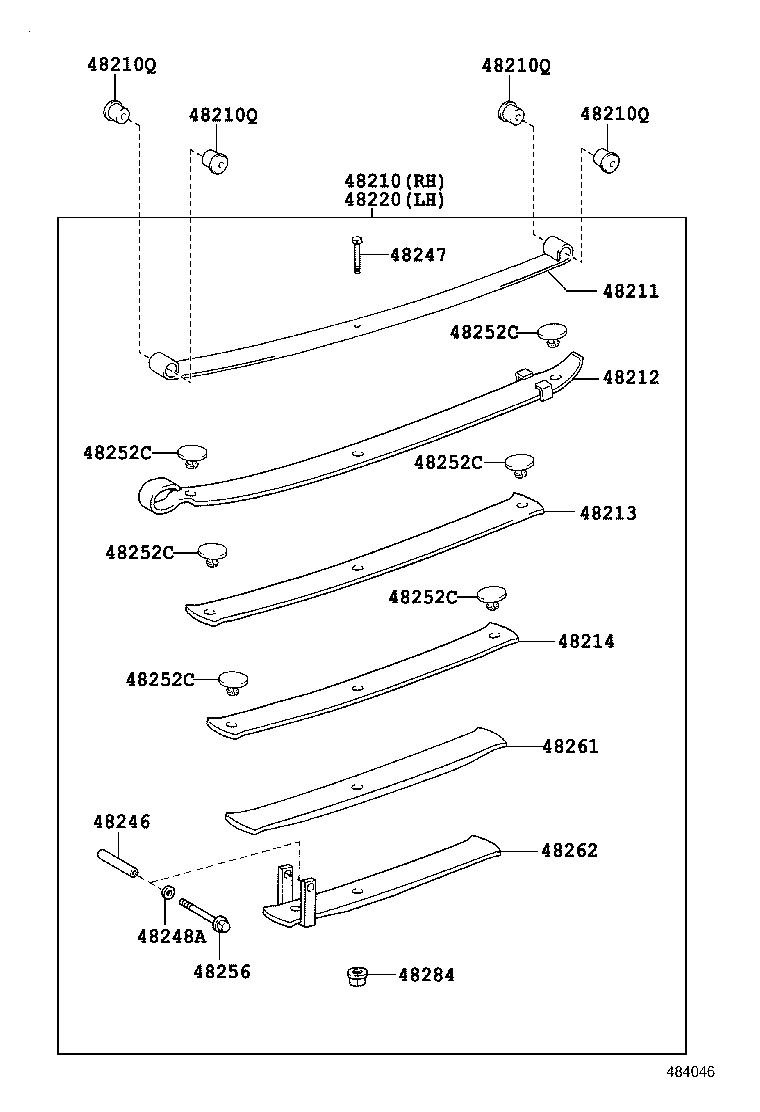

ILLUST NO. 2 OF 3(0907- )GRJ76,HZJ76
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60B50 |
GRJ76,HZJ76..LHD MAIN 4+HELPER 2-LEAF |
1 | ||
| 48210-60B41 |
GRJ76,HZJ76 MAIN 4+HELPER 2-LEAF |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60B40 |
GRJ76,HZJ76 |
2 | ||
| 48211-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-60A60 |
GRJ76;HZJ76..RHD |
2 | ||
| 48202-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60A60 |
GRJ76,HZJ76 |
2 | ||
| 48213-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60A60 |
GRJ76;HZJ76..RHD |
2 | ||
| 48214-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60B40 |
GRJ76,HZJ76 MAIN 4+HELPER 2-LEAF |
1 | ||
| 48210-60B41 |
GRJ76,HZJ76 MAIN 4+HELPER 2-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ76;GRJ71,76..LHD;HZJ71,VDJ76..RHD |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
GRJ76,HZJ76..LHD |
1 | ||
| 48289-60010 |
GRJ76,HZJ76..LHD |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FZJ71,HZJ71..RHD;FZJ76,GRJ71,76,HZJ76 |
2 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ76;GRJ71,76..LHD |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ76;HZJ71..RHD;GRJ71,76..LHD |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-60A60 |
GRJ76,VDJ76 |
2 | ||
| 48261-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-60A60 |
GRJ76,HZJ76 |
2 | ||
| 48207-60B41 |
GRJ76,HZJ76 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ76;GRJ71,76..LHD;HZJ71,VDJ76..RHD |
2 | ||

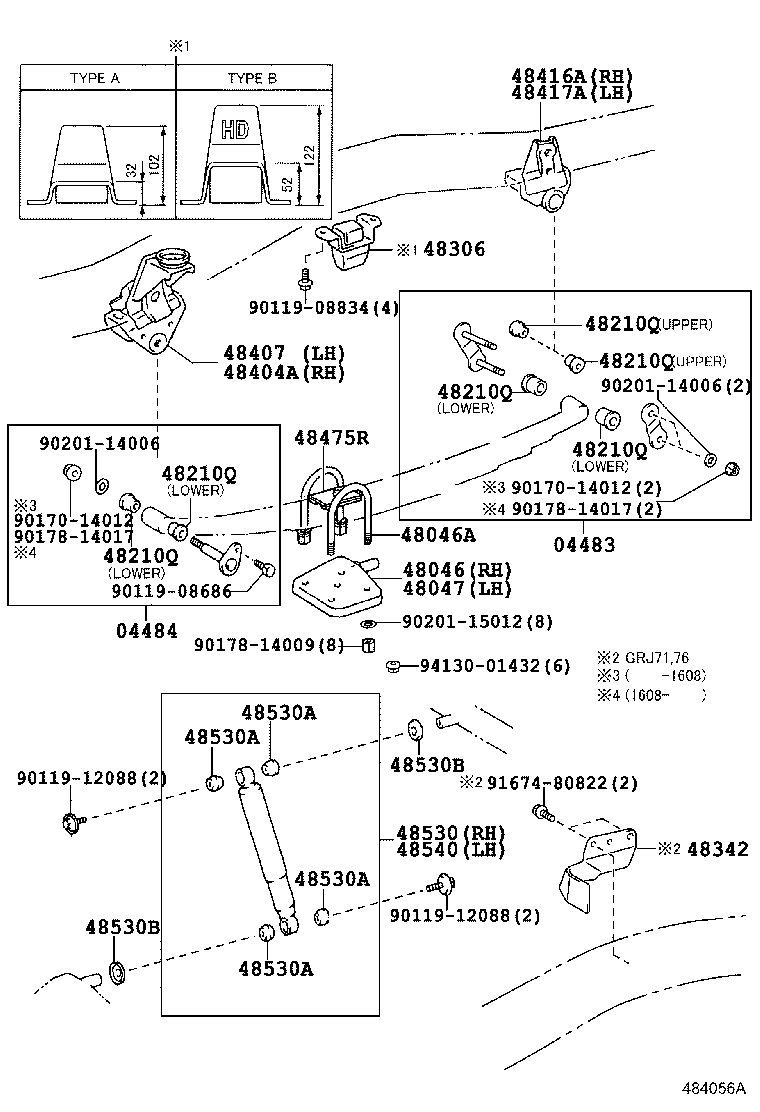

ILLUST NO. 1 OF 3(0907- )VDJ79 ; (0907- )GRJ7#,HZJ7#,VDJ76,78..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60200 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60110 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60100 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14002 |
GRJ76;HZJ76..GEN L=210,REAR SEAT-TRANSVERSE SEAT & PARALLEL |
2 | ||
| 90117-14032 |
HZJ76..GEN;GRJ76,VDJ76 L=200 |
4 | ||
| 90117-14032 |
GRJ76;HZJ76..GEN L=200,REAR SEAT-TRANSVERSE SEAT & PARALLEL |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60090 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ79 LOWER |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 48342 - COVER, BUMPER, REAR | ||||
| 48342-60020 |
GRJ71,76..LHD |
1 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60130 |
GRJ76,HZJ76,VDJ76 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60110 |
GRJ76,HZJ76,VDJ76 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60130 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-60040 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69855 |
GRJ76,78..LHD;HZJ76,78,VDJ76,78 MARK 48531-60730 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69855 |
GRJ76,78..LHD;HZJ76,78,VDJ76,78 MARK 48531-60730 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90170-14012 | ||||
| 90178-14009 | ||||
| 90178-14017 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 91674-80822 | ||||
| 94130-01432 | ||||
