GRJ71L-RJMRK (2016)
Toyota Land Cruiser

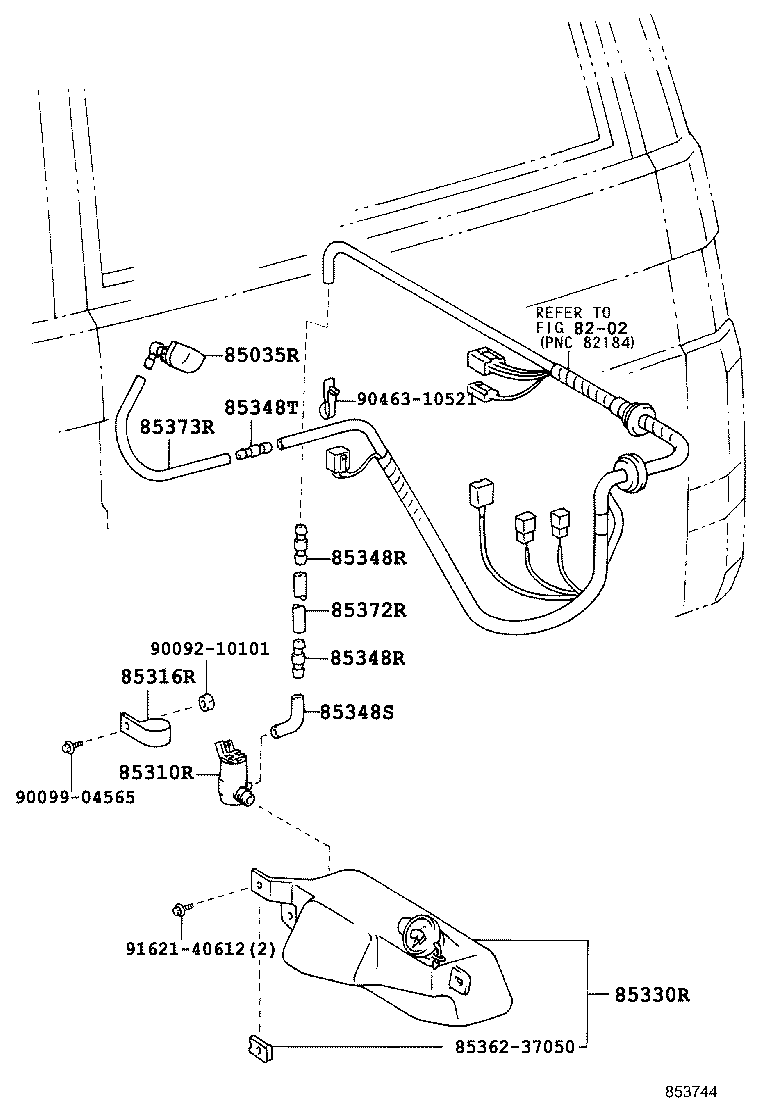

(1703- )GRJ71,HZJ71..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-60040 |
VDJ76..GCC;HZJ76,78..GEN;GRJ71,76,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-22080 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85316R - SUPPORT, REAR WASHER MOTOR | ||||
| 85316-23010 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-90K03 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
GRJ71,HZJ71..HT *H,L=350,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT *H,L=230,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| Common parts | ||||
| 85362-37050 | ||||
| 90092-10101 | ||||
| 90099-04565 | ||||
| 90463-10521 | ||||
| 91621-40612 | ||||
| Linked diagrams | ||||
| 8202 | ||||

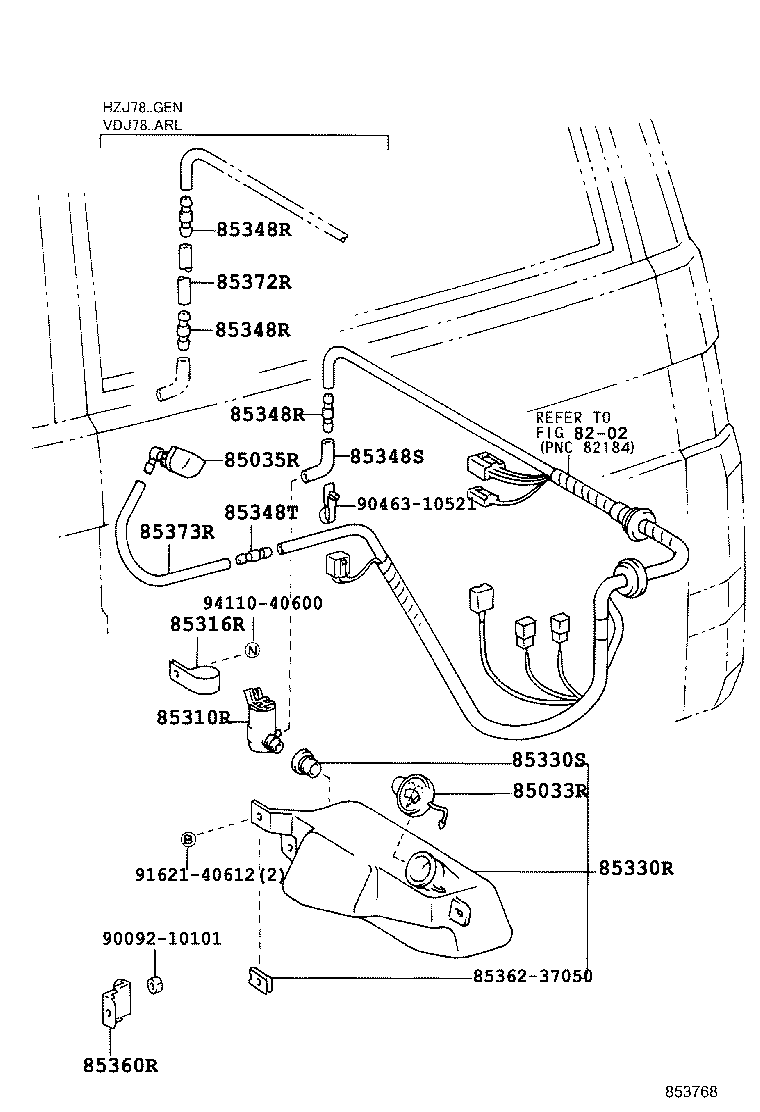

(1608-1703)GRJ71,HZJ71..HT ; (1608-1703)HZJ78,VDJ78..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85033-36120 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-60040 |
VDJ76..GCC;HZJ76,78..GEN;GRJ71,76,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-22080 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85316R - SUPPORT, REAR WASHER MOTOR | ||||
| 85316-23010 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-90K03 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32089 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
HZJ78..GEN;GRJ71,HZJ71..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
GRJ71,HZJ71..HT *H,L=350,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
HZJ78..GEN;VDJ76..GCC;GRJ71,76,HZJ71,76..HT *H,L=230,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| Common parts | ||||
| 85362-37050 | ||||
| 90092-10101 | ||||
| 90463-10521 | ||||
| 91621-40612 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
