GRJ71L-RJMRK (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

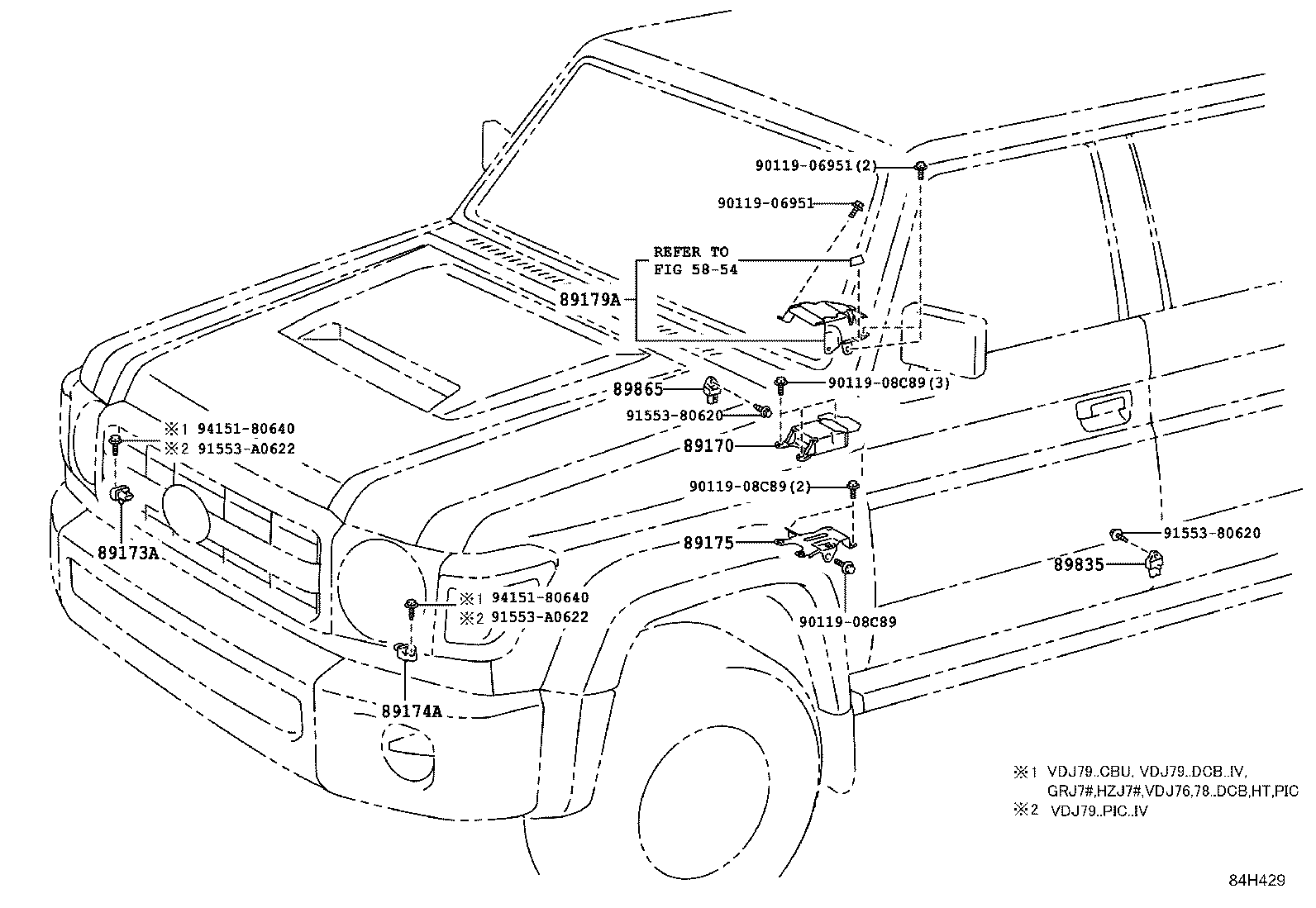

Click highlighted areas on diagram

diagram 5854 89170 89173A 89174A 89175 89179A 89835 89865 9011906951 9011906951 9011908C89 9011908C89 9011908C89 9155380620 9155380620 91553A0622 91553A0622 9415180640 9415180640
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-60650

HZJ76,78;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,79..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR CLOSED 1&SRS AIR BAG-WITH(D ONLY)

 1
89170-60650

HZJ76,78;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,79..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR PINTRE 1&SRS AIR BAG-WITH(D ONLY)

 1
89170-60660

HZJ76,78;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,79..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR CLOSED 1&SRS AIR BAG-WITH(D+P)

 1
89170-60660

HZJ76,78;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,79..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR PINTRE 1&SRS AIR BAG-WITH(D+P)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-69205

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

SRS AIR BAG-WITH(D+P)

 1
89173-69205

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

SRS AIR BAG-WITH(D ONLY)

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-69205

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

SRS AIR BAG-WITH(D+P)

 1
89173-69205

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

SRS AIR BAG-WITH(D ONLY)

 1
89175 - BRACKET, AIR BAG SENSOR
89175-60010

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR PINTRE 1&SRS AIR BAG-WITH(D+P)

 1
89175-60010

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR CLOSED 1&SRS AIR BAG-WITH(D+P)

 1
89175-60010

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR PINTRE 1&SRS AIR BAG-WITH(D ONLY)

 1
89175-60010

GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..(DCB,HT,PIC)..GEN

TOWING HOOK-FR CLOSED B 1+RR CLOSED 1&SRS AIR BAG-WITH(D ONLY)

 1
89179A - COVER, AIR BAG SENSOR
89179-60011

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 1
Common parts
90119-06951
90119-08C89
91553-80620
91553-A0622
94151-80640
Linked diagrams
5854
