GRJ71L-RJMRK (2016)
Toyota Land Cruiser
(1608-1909)GRJ79,HZJ79..RHD..PIC ; (1608- )GRJ79,HZJ7#..RHD..DCB,HT,SOT ; (2101-

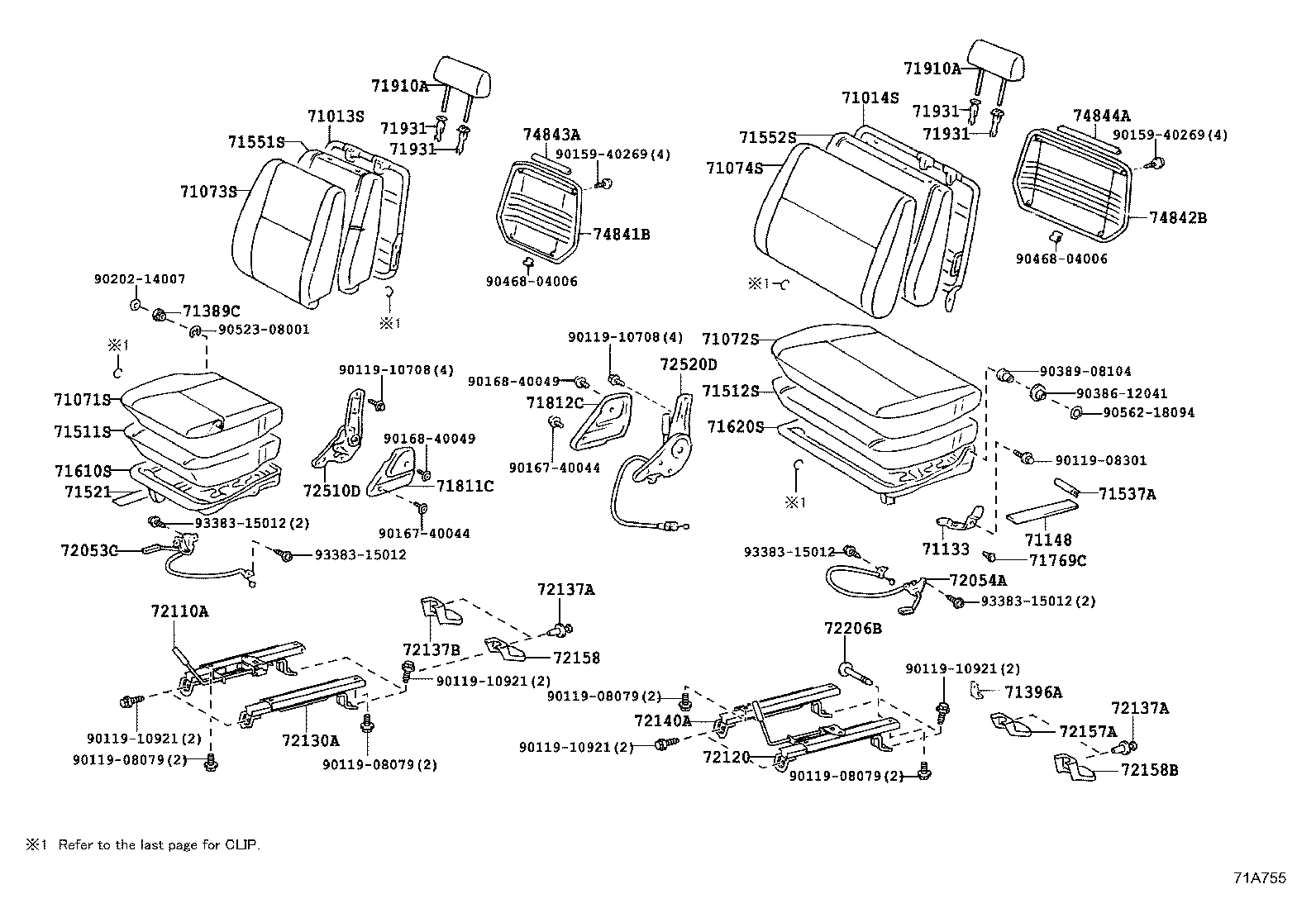

FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60123 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 71013-60192 |
HZJ76..LHD;GRJ71,76,78,HZJ71,78,VDJ78..LHD..STD |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60113 |
VDJ76,78;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60275B7 |
GRJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71071-60275E7 |
GRJ7#,HZJ7#..LHD..(DCB,HT,PIC)..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71071-60315B8 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,BLUEISH GLAY,TRIM1# |
1 | ||
| 71071-60315E8 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60245B8 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,BLUEISH GLAY,TRIM1# |
1 | ||
| 71072-60245E8 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,OAK,TRIM4# |
1 | ||
| 71072-60346B5 |
GRJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71072-60346E5 |
GRJ7#,HZJ7#..LHD..(DCB,HT,PIC)..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-60023B6 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,BLUEISH GLAY,TRIM1# |
1 | ||
| 71027-60023E6 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,OAK,TRIM4# |
1 | ||
| 71073-6A242E3 |
GRJ71,78,HZJ71,78..LHD..HT..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71073-6A242B3 |
GRJ71,78,HZJ71,78..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-60013B6 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,BLUEISH GLAY,TRIM1# |
1 | ||
| 70169-60013E6 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,OAK,TRIM4# |
1 | ||
| 71074-60204E4 |
VDJ78..STD..ARL;GRJ71,78,HZJ71,78..LHD..HT..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71074-60204B4 |
VDJ78..STD..ARL;GRJ71,78,HZJ71,78..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71132-90K00 |
GRJ79,HZJ76,VDJ79..LHD;GRJ71,76,78,HZJ71,78,79,VDJ78..LHD..STD |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
HZJ76,78;GRJ79,VDJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79,VDJ78..LHD..STD |
2 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
VDJ79..GCC;GRJ79,HZJ76;GRJ71,76,78,HZJ71,78,79,VDJ78..STD..(GCC,GEN) |
1 | ||
| 71389-60040 |
GRJ71,HZJ71..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
2 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
GRJ71,HZJ71..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60023 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 71501-60151 |
GRJ79,HZJ76,VDJ79..LHD;GRJ71,76,78,HZJ71,78,79,VDJ78..LHD..STD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60044 |
VDJ7#..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
HZJ76,78;GRJ79,VDJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79,VDJ78..LHD..STD |
2 | ||
| 71521-60030 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
HZJ76,78;GRJ79,VDJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79,VDJ78..LHD..STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 71505-60040 |
GRJ79,HZJ76,VDJ79..LHD;GRJ71,76,78,HZJ71,78,79,VDJ78..LHD..STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60011 |
VDJ7#..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60111 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 71610-60250 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79,VDJ79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60091 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-07032 |
HZJ76,78;GRJ79,VDJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79,VDJ78..LHD..STD |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020B0 |
HZJ79..IV;HZJ76..LHD;HZJ79,VDJ78..ARL,GCC;HZJ79..LHD..DCB..GEN;GRJ79,VDJ76..(DCB,HT)..GEN;GRJ7#,HZJ71,78..(HT,PIC,SOT)..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
VDJ79..CBU;GRJ71..HT..STD;VDJ79..DCB..IV;GRJ76,78,79,HZJ7#,VDJ76,78..DCB,HT,PIC SANDAL WOOD,TRIM4# |
1 | ||
| 71811-60040B0 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-60040E1 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60020B0 |
HZJ79..IV;HZJ79..RHD;HZJ79..GCC;GRJ78,HZJ76,78;HZJ79..LHD..DCB..GEN;GRJ79,VDJ78..(HT,PIC)..STD;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
VDJ78..STD;VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76..DCB,HT,PIC SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60041E5 |
GRJ76,HZJ76..GEN;GRJ71,78,HZJ71,78,VDJ78..HT..(GCC,GEN) OAK,TRIM4# |
2 | ||
| 71910-60041B3 |
GRJ76,HZJ76..GEN;GRJ71,78,HZJ71,78,VDJ78..GCC,GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60041E5 |
GRJ76,HZJ76..GEN;GRJ71,78,HZJ71,78,VDJ78..HT..(GCC,GEN) OAK,TRIM4# |
2 | ||
| 71910-60041B3 |
GRJ76,HZJ76..GEN;GRJ71,78,HZJ71,78,VDJ78..GCC,GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B1 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010B8 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020L0 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-47010L4 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B1 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010B8 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020L0 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-47010L4 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B1 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010B8 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020L0 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-47010L4 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B1 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010B8 |
HZJ79..IV;HZJ79..GCC;HZJ78,VDJ78;GRJ79..PIC..STD;GRJ78,HZJ76..LHD;HZJ79..LHD..DCB..GEN;GRJ71,76,79,HZJ71,VDJ76..(DCB,HT,SOT)..GEN W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020L0 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-47010L4 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78..DCB,HT,PIC W/O(LOCK),OAK,TRIM4# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K00C0 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3,BLACK,TRIM1#,4# |
1 | ||
| 72053-90K01C0 |
HZJ79..IV;HZJ79..GCC;HZJ76..LHD;GRJ79,HZJ79..LHD..DCB..GEN;GRJ7#,HZJ71,78,VDJ78..LHD..(HT,PIC)..STD BLACK,TRIM1#,4# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00C0 |
HZJ79..IV;HZJ76..LHD;HZJ79,VDJ78..ARL,GCC;GRJ71,VDJ76..HT..GEN;GRJ79,HZJ79..LHD..DCB..GEN;GRJ76,78,79,HZJ71,78..LHD..(HT,PIC)..STD BLACK,TRIM1#,4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60241 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79,VDJ79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72110-60261 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60252 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60380 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79,VDJ79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72130-60121 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090C1 |
GRJ76,79..(DCB,HT)..GEN;GRJ71,HZJ71,76,79..DCB,HT BLACK,TRIM1#,4# |
2 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090C1 |
GRJ76,79..(DCB,HT)..GEN;GRJ71,HZJ71,76,79..DCB,HT BLACK,TRIM1#,4# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60381 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-60200C0 |
GRJ76,VDJ76..GEN;GRJ79..LHD..DCB..GEN;GRJ71,HZJ71,76,79..LHD..(DCB,HT) BLACK,TRIM1#,4# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-60060 |
GRJ71,HZJ71..LHD..HT..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT&REAR SEAT BELT-ELR3-2-3 |
1 | ||
| 72510-90K02 |
HZJ76..LHD;GRJ79,HZJ79,VDJ79..PIC..(GCC,GEN);GRJ7#,HZJ71,78,79,VDJ78,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 74841B - PANEL, FRONT SEAT BACK | ||||
| 74842-90K00B0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 74842-90K00E0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..HT..STD OAK,TRIM4# |
1 | ||
| 74842B - PANEL, FRONT SEAT BACK, A | ||||
| 74841-90K00B0 |
VDJ78..STD;GRJ71,78,HZJ71,78..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 74841-90K00E0 |
VDJ78..STD;GRJ71,78,HZJ71,78..LHD..HT..STD OAK,TRIM4# |
1 | ||
| 74843A - ORNAMENT, FRONT SEAT BACK PANEL | ||||
| 74844-90K00E0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..HT..STD OAK,TRIM4# |
1 | ||
| 74844-90K00B0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74843-90K00B0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 74843-90K00E0 |
GRJ71,78,HZJ71,78,VDJ78..LHD..HT..STD OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
