GRJ71L-RJMNK (2009)
Toyota Land Cruiser

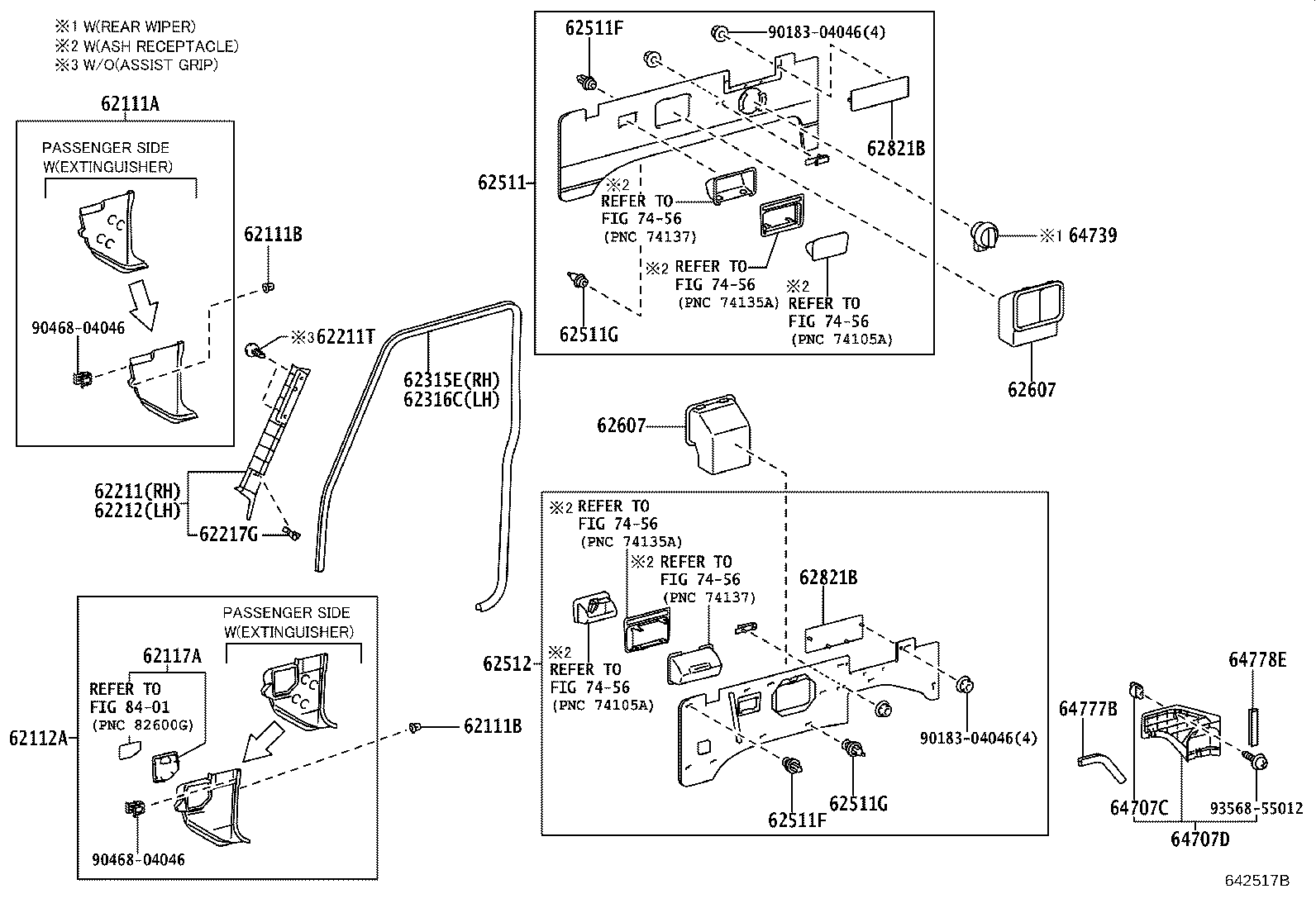

(0907- )GRJ71,HZJ71..HT
W(TRANSVERSE REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-60150E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62101-60160B0 |
GRJ7#,HZJ7#..LHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
1 | ||
| 62101-60150B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62101-60160E0 |
GRJ7#,HZJ7#..LHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-60200E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62102-60200B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60201B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60201E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62102-60202B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60202E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-60030E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60031B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62117-60030B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62117-60031E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60032E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60032B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-60260B0 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-60220B0 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 67771-58010 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#,VDJ7#..DCB,HT,PIC |
2 | ||
| 62315E - WEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR RH | ||||
| 62315-60050B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62315-60030B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62316C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR LH | ||||
| 62315-60050B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62315-60030B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-60331E2 |
FZJ71,GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62510-60181B1 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181E2 |
FZJ71,GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62510-60331B1 |
FZJ71,GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181B2 |
GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62510-60331B2 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181E3 |
GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62510-60331E3 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-30090 |
FZJ71,GRJ71..LX YELLOW |
7 | ||
| 90467-10161 |
GRJ76,HZJ76;GRJ71,VDJ76..LX NATURAL |
7 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-30090 |
FZJ71,GRJ71..LX YELLOW |
7 | ||
| 90467-10161 |
GRJ76,HZJ76;GRJ71,VDJ76..LX NATURAL |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GRJ71..LX NATURAL |
20 | ||
| 90467-10161 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),NATURAL |
19 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GRJ71..LX NATURAL |
20 | ||
| 90467-10161 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),NATURAL |
19 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-60151E2 |
FZJ71,GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62520-60151B1 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151B2 |
GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E3 |
GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62607 - POCKET SUB-ASSY, QUARTER TRIM | ||||
| 62607-90K00E1 |
FZJ71,GRJ71..LX LT.OAK,TRIM4# |
2 | ||
| 62607-90K00B0 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
2 | ||
| 62607 - POCKET SUB-ASSY, QUARTER TRIM | ||||
| 62607-90K00E1 |
FZJ71,GRJ71..LX LT.OAK,TRIM4# |
2 | ||
| 62607-90K00B0 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
2 | ||
| 62821B - GLILLE, ROOM VENTILATION | ||||
| 62821-90K01B0 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76 SLATE GRAY,TRIM1# |
2 | ||
| 62821-90K01E0 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76 MD.OAK,TRIM4# |
2 | ||
| 62821B - GLILLE, ROOM VENTILATION | ||||
| 62821-90K01B0 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76 SLATE GRAY,TRIM1# |
2 | ||
| 62821-90K01E0 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76 MD.OAK,TRIM4# |
2 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-90K00E0 |
HZJ71..HT;FZJ71,76,78,GRJ71,76,78,HZJ76,78,VDJ76,78 MD.OAK,TRIM4# |
1 | ||
| 64769-90K00B3 |
FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 SLATE GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-60030E3 |
HZJ71..HT;FZJ71,GRJ71 MD.OAK,TRIM4# |
1 | ||
| 64707-60030B2 |
FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
1 | ||
| 64739 - COVER, DECK TRIM SIDE WASHER | ||||
| 64739-90K01B0 |
HZJ78..GEN;FZJ71,76,GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 64739-90K01E0 |
HZJ78..GEN;FZJ71,76,GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 64778E - PROTECTER, QUARTER INNER, NO.1 | ||||
| 64778-90K01B2 |
GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| 64778-90K00B2 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90183-04046 | ||||
| 90468-04046 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||

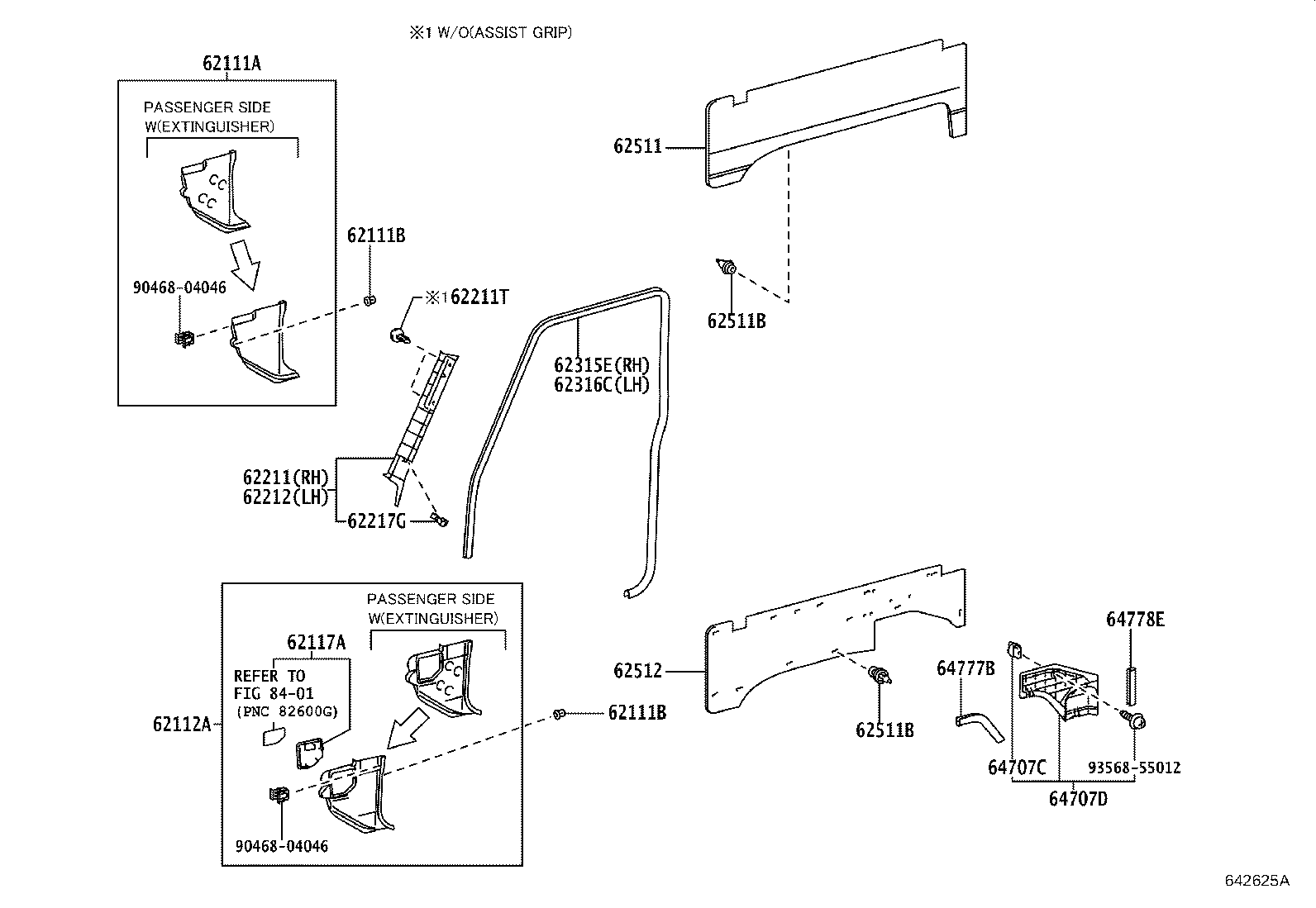

(0907- )GRJ71,HZJ71..HT
W(PARALLEL REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-60150E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62101-60160B0 |
GRJ7#,HZJ7#..LHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
1 | ||
| 62101-60150B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62101-60160E0 |
GRJ7#,HZJ7#..LHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-60200E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62102-60200B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60201B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60201E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62102-60202B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62102-60202E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-60030E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60031B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62117-60030B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62117-60031E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60032E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# MD.OAK,TRIM4#,CAUTION LABEL:12V |
1 | ||
| 62117-60032B0 |
GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-60260B0 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-60220B0 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 67771-58010 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#,VDJ7#..DCB,HT,PIC |
2 | ||
| 62315E - WEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR RH | ||||
| 62315-60050B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62315-60030B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62316C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR LH | ||||
| 62315-60050B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62315-60030B0 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-60331E2 |
FZJ71,GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62510-60181B1 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181E2 |
FZJ71,GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62510-60331B1 |
FZJ71,GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181B2 |
GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62510-60331B2 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60181E3 |
GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62510-60331E3 |
GRJ71..LX REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-60151E2 |
FZJ71,GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 62520-60151B1 |
FZJ71,GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151B2 |
GRJ71..LX SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E3 |
GRJ71..LX MD.OAK,TRIM4# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-90K00E0 |
HZJ71..HT;FZJ71,76,78,GRJ71,76,78,HZJ76,78,VDJ76,78 MD.OAK,TRIM4# |
1 | ||
| 64769-90K00B3 |
FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 SLATE GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-60030E3 |
HZJ71..HT;FZJ71,GRJ71 MD.OAK,TRIM4# |
1 | ||
| 64707-60030B2 |
FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
1 | ||
| 64778E - PROTECTER, QUARTER INNER, NO.1 | ||||
| 64778-90K01B2 |
GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| 64778-90K00B2 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90468-04046 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
