FZJ80L-GNPEKA (1992)
Toyota Land Cruiser
Production
Aug 1992
-
Jan 1998
Engine
1FZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

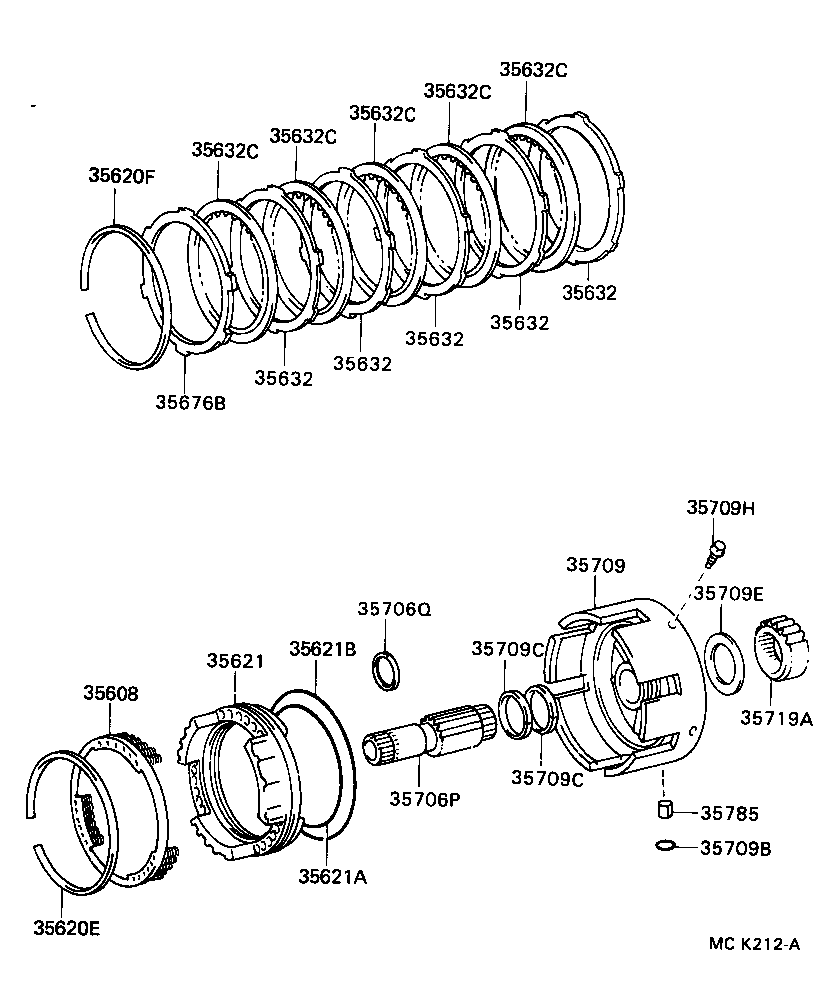

(9001-9501)
Click highlighted areas on diagram
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-36010 |
FJ80,FZJ80 |
1 | ||
| 35608-30010 |
FZJ80 |
1 | ||
| 35620E - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90521-99109 |
FZJ80 |
1 | ||
| 90521-99021 |
FZJ80 |
1 | ||
| 35620F - RING, HOLE SNAP (FOR BRAKE NO.1 FLANGE) | ||||
| 90521-99109 |
FZJ80 |
1 | ||
| 90521-99021 |
FZJ80 |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35621-36010 |
FJ80,FZJ80 |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99030 |
FZJ80 |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-99031 |
FZJ80 |
1 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
FZJ80 |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
FZJ80 |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
FZJ80 |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
FZJ80 |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
FZJ80 |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
FZJ80 |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
FZJ80 |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
FZJ80 |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
FZJ80 |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
FZJ80 |
5 | ||
| 35706P - GEAR SUB-ASSY, FRONT PLANETARY SUN | ||||
| 35706-60030 |
FZJ80 |
1 | ||
| 35706Q - RING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR) | ||||
| 90520-33009 |
FJ80,FZJ80 |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-60010 |
FZJ80 |
1 | ||
| 35709B - RING, O (FOR CENTER SUPPORT) | ||||
| 90301-09008 |
FZJ80 |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
FZJ80 |
2 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
FZJ80 |
2 | ||
| 35709E - WASHER (FOR CENTER SUPPORT) | ||||
| 90209-52005 |
FZJ80 T=1.5 |
1 | ||
| 90209-52006 |
FZJ80 T=1.8 |
1 | ||
| 90209-52007 |
FZJ80 T=2.1 |
1 | ||
| 90209-52009 |
FZJ80 T=2.7 |
1 | ||
| 90209-52008 |
FZJ80 T=2.4 |
1 | ||
| 35709H - BOLT (FOR CENTER SUPPORT) | ||||
| 90105-06194 |
FZJ80 |
1 | ||
| 35719A - GEAR, REAR PLANETARY SUN | ||||
| 35719-60020 |
FZJ80 |
1 | ||
| 35785 - RETAINER, CENTER SUPPORT RING | ||||
| 35785-36010 |
FZJ80 |
3 | ||

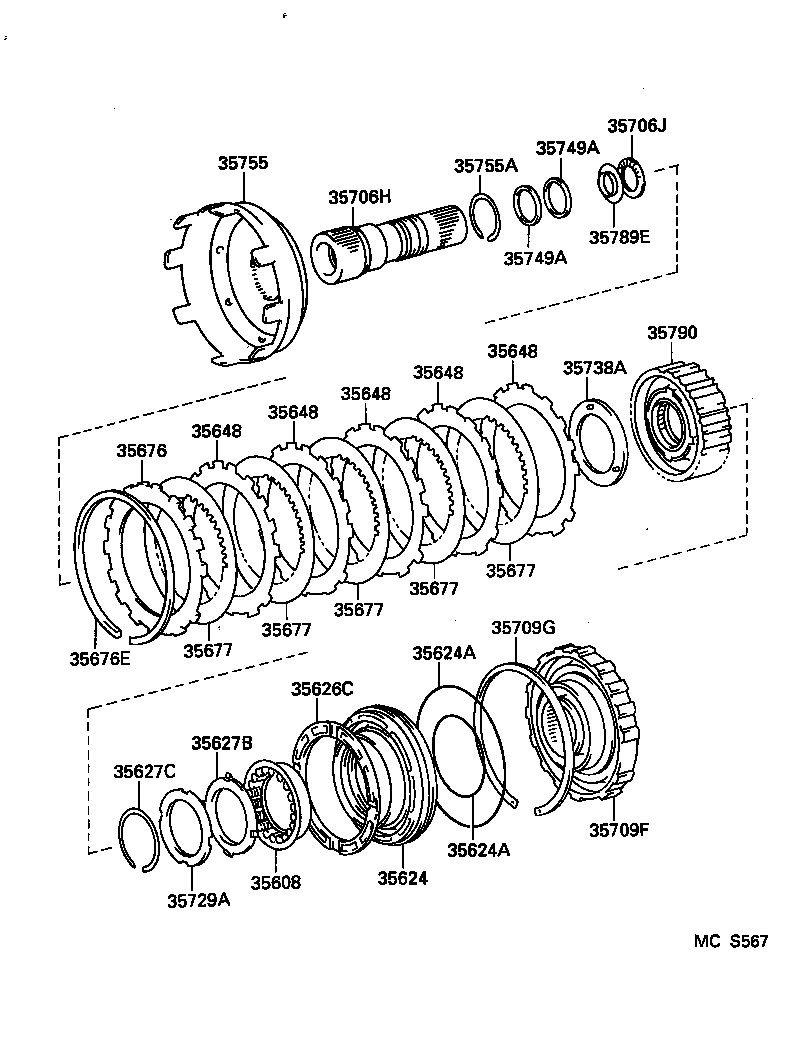

(9501- )
Click highlighted areas on diagram
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-36010 |
FJ80,FZJ80 |
1 | ||
| 35608-30010 |
FZJ80 |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-30010 |
FZJ80 |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-85001 |
FZJ80 INNER |
1 | ||
| 90301-99038 |
FZJ80 OUTER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-85001 |
FZJ80 INNER |
1 | ||
| 90301-99038 |
FZJ80 OUTER |
1 | ||
| 35626C - SLEEVE, 2ND BRAKE PISTON | ||||
| 35626-30030 |
FZJ80 |
1 | ||
| 35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING | ||||
| 35627-30010 |
FZJ80 |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-54001 |
FZJ80 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
FZJ80 T=1.8 |
1 | ||
| 35647-30020 |
FZJ80 T=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
FZJ80 T=1.8 |
1 | ||
| 35647-30020 |
FZJ80 T=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
FZJ80 T=1.8 |
1 | ||
| 35647-30020 |
FZJ80 T=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
FZJ80 T=1.8 |
1 | ||
| 35647-30020 |
FZJ80 T=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
FZJ80 T=1.8 |
1 | ||
| 35647-30020 |
FZJ80 T=2.5 |
4 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-30020 |
FZJ80 T=3.0 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90521-99032 |
FZJ80 |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-60010 |
FZJ80 |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-60010 |
FZJ80 |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-60010 |
FZJ80 |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-60010 |
FZJ80 |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-60010 |
FZJ80 |
5 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-60040 |
FZJ80 |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-27009 |
FZJ80 |
1 | ||
| 35709F - DRUM SUB-ASSY, 2ND BRAKE | ||||
| 35709-30061 |
FZJ80 |
1 | ||
| 35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM) | ||||
| 90521-99044 |
FZJ80 |
1 | ||
| 35729A - WASHER, PLANETARY CARRIER THRUST, NO.4 | ||||
| 35729-30010 |
FZJ80 |
1 | ||
| 35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1 | ||||
| 35738-30040 |
FZJ80 |
1 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
FZJ80 |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
FZJ80 |
2 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-50010 |
FZJ80 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-46002 |
FZJ80 ID=46.0,T=1.2,T=1.2,ID=46.0,RR |
1 | ||
| 90520-49001 |
FZJ80 ID=49.0,WD=2.3,WD=2.3,ID=49.0,FR |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-30240 |
FZJ80 |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30060 |
FZJ80 |
1 | ||
